Automatic Small Bottle Filling Line: What B2B Buyers Should Know
An automatic small bottle filling line should not be selected by filling speed alone. For a B2B buyer, the right line must reliably handle the actual product, bottle, plug or dropper, cap, label and required output—not just perform well during a short demonstration. Before investing, buyers should compare filling technology, bottle handling, closure stability, changeover time, cleaning requirements, line integration, factory acceptance testing and long-term operating cost.
For most 5 ml to 200 ml applications, the best solution is therefore not simply the fastest machine. It is the line that produces the highest number of saleable, correctly filled and correctly closed bottles during a real production shift.
Quick Answer: What Should B2B Buyers Look For?
Before buying an automatic small bottle filling line, confirm these eight points:
| Buying Factor | What You Should Confirm |
|---|---|
| Product | Viscosity, foaming, volatility, particles and chemical compatibility |
| Fill volume | Minimum, maximum and most common bottle sizes |
| Bottle | Diameter, height, neck opening, material and stability |
| Closure | Plug, dropper, screw cap, pump, crimp cap or other closure |
| Output | Required saleable bottles per hour—not theoretical maximum speed |
| Changeover | Time and parts required between different SKUs |
| Cleaning | Product-contact design and cleaning/changeover procedure |
| Acceptance | FAT test using your actual bottles, caps and product where possible |
This information is more valuable than asking a supplier only: “How many bottles per minute can your machine fill?”

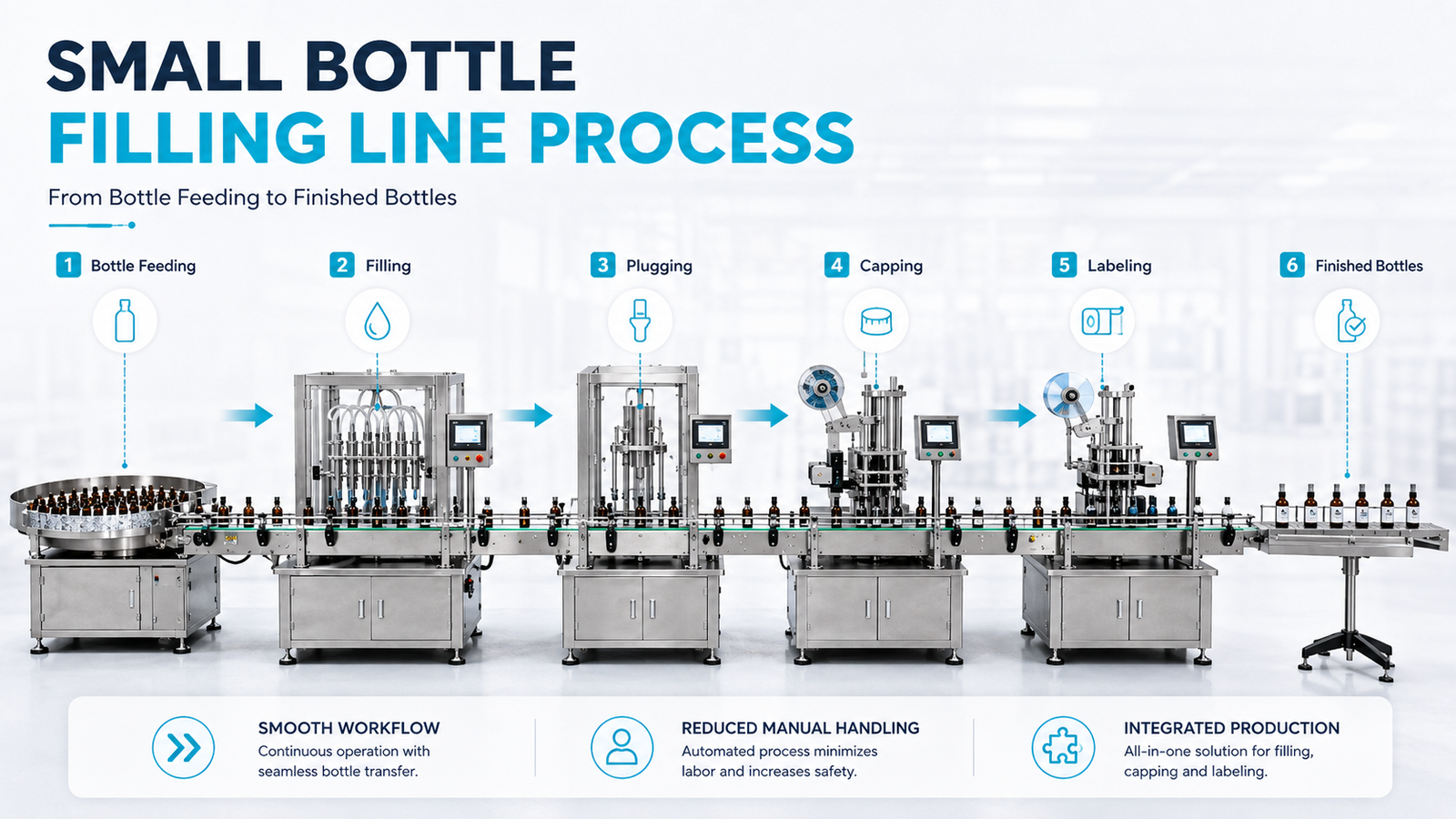

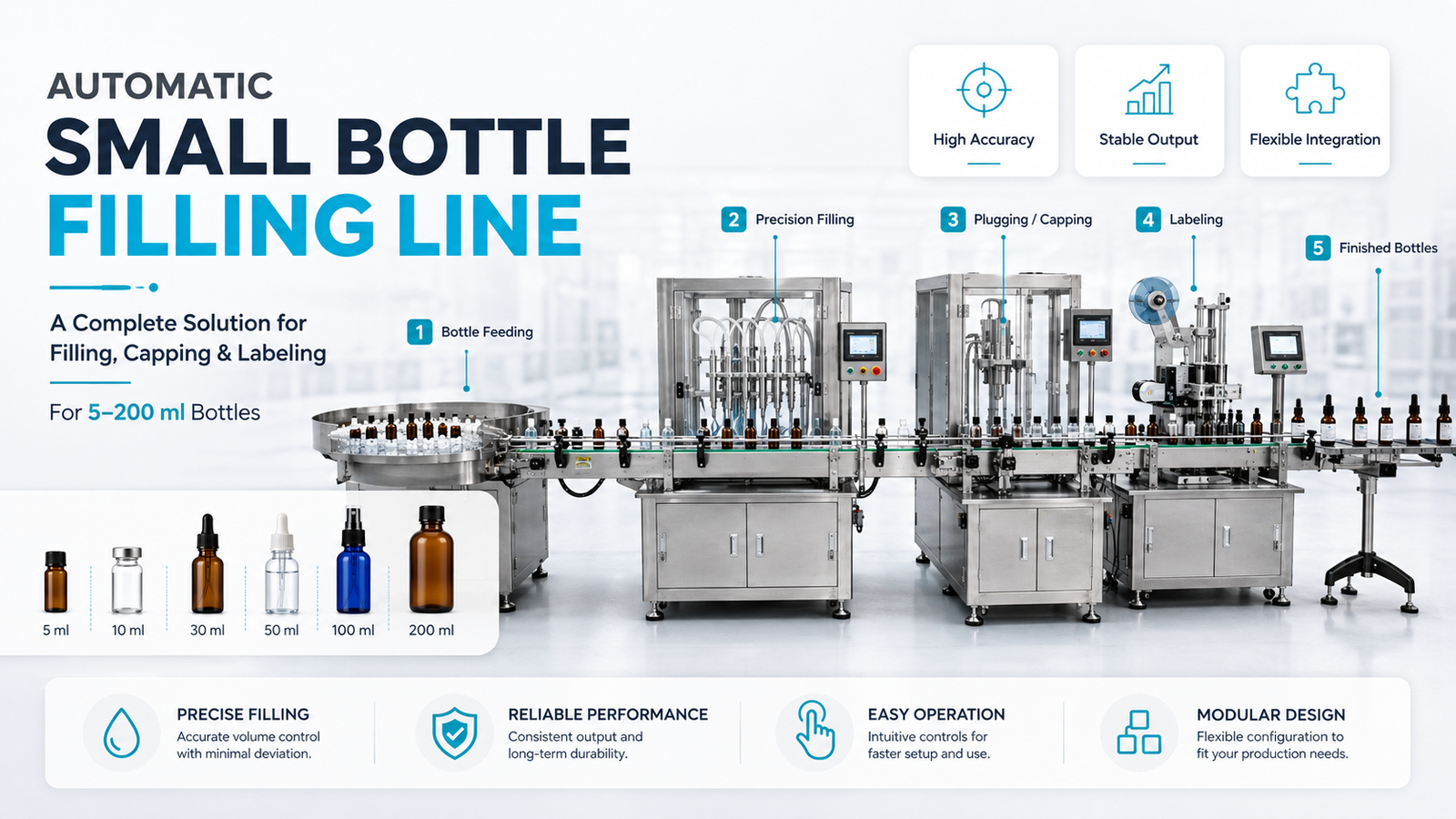

What Is an Automatic Small Bottle Filling Line?
An automatic small bottle filling line is an integrated packaging system designed to move small containers through several operations with limited manual intervention.
A typical line can include:
- Bottle unscrambling or feeding
- Bottle positioning
- Liquid filling
- Inner plug, dropper or stopper insertion
- Cap feeding
- Capping, crimping or pump pressing
- Labeling
- Batch coding or laser marking
- Inspection
- Cartoning or downstream packing
Small-bottle applications are especially common in essential oils, e-liquid, tinctures, serums, perfumes, eye drops, oral liquids, diagnostic reagents and other products where the container opening and filling volume are relatively small.
Buyers comparing equipment for these applications can start with our automatic small bottle filling line configurations.
Start With the Product — Not the Machine
One of the most expensive purchasing mistakes is selecting the filling machine first and trying to make the product fit the equipment later.
The same 30 ml bottle could contain alcohol-based perfume, essential oil, high-VG e-liquid, cosmetic serum or a healthcare liquid. These products may require completely different pumps, seals, tubing, nozzles and cleaning procedures.
Before requesting a proposal, define:
- viscosity at normal filling temperature
- density
- foaming tendency
- presence of particles
- alcohol or solvent content
- filling temperature
- required fill tolerance
- batch size
- frequency of product changes
- required hygiene level
The machine supplier should use this information to select the dosing system.

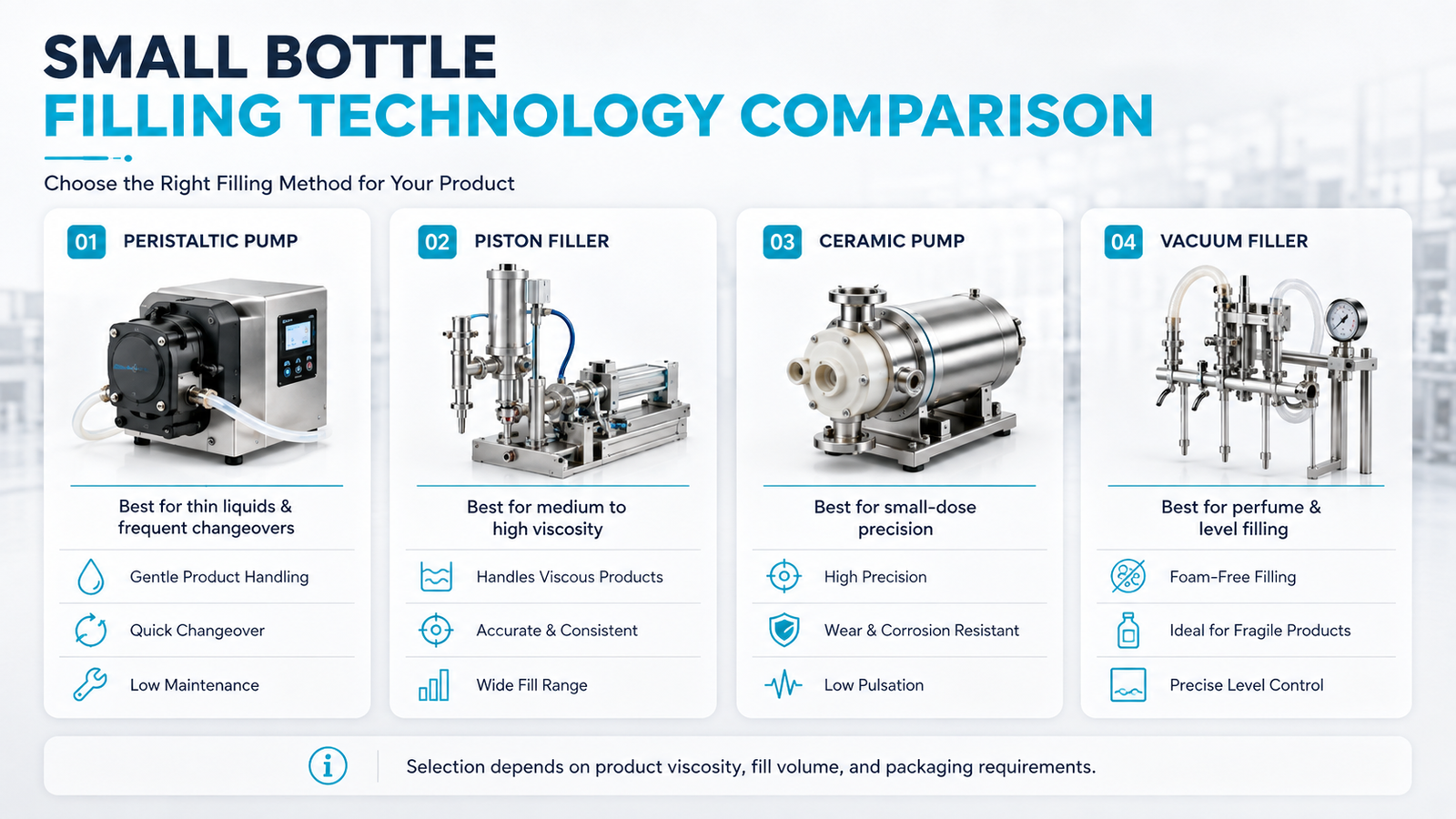

Which Filling Technology Is Best?
There is no universal filling technology for every small bottle.
| Filling Technology | Strongest Applications | Buyer Considerations |
| Peristaltic pump | Thin liquids, small doses, frequent product changes | Product contacts mainly the tubing; convenient for cleaning and changeover |
| Piston filler | Medium- to high-viscosity liquids | Strong product displacement; useful for thicker products |
| Ceramic pump | Small-dose precision applications | Good repeatability but application and product compatibility must be confirmed |
| Vacuum filler | Perfume and applications requiring consistent visible liquid level | Particularly useful for rigid glass containers |
| Time-pressure/pump filling | Free-flowing liquids | Simple configuration but performance depends strongly on product consistency |
Do not compare technologies only by the accuracy number printed in a catalogue. Actual dosing performance depends on the product, fill volume, pump, tubing, nozzle, machine settings and test method.
For a deeper comparison, see our guide to piston filling machines vs peristaltic filling machines.

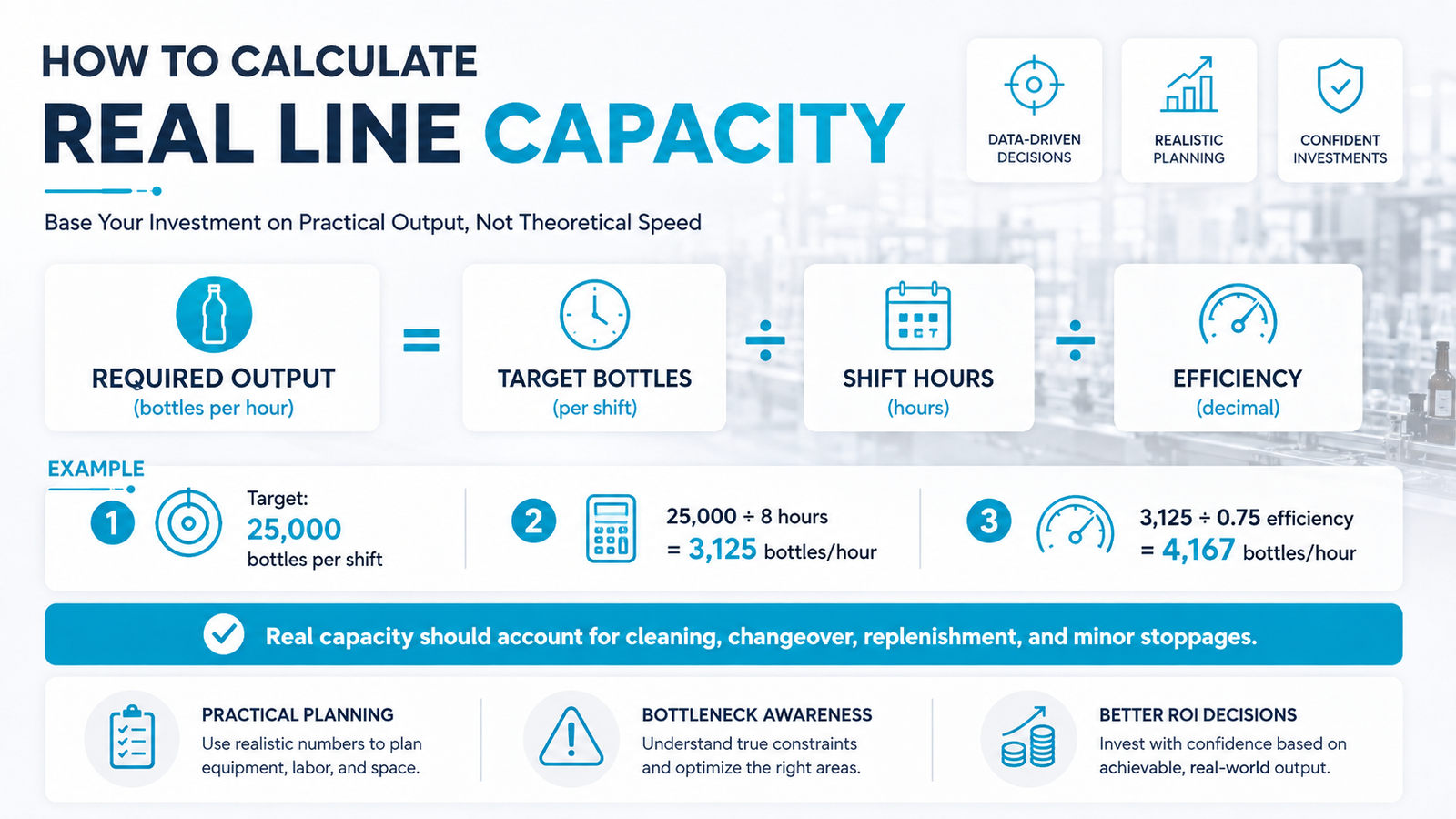

Calculate the Production Speed You Actually Need
This is one area where B2B buyers frequently over-specify equipment.
Suppose your factory needs:
25,000 bottles per 8-hour shift.
The simple calculation is:
25,000 ÷ 8 = 3,125 bottles/hour
However, a production shift is never eight hours of uninterrupted filling. Time is lost during:
- startup
- cleaning
- bottle replenishment
- cap replenishment
- product change
- label roll replacement
- adjustment
- quality checks
- minor stoppages
If you expect only 75% effective production time:
3,125 ÷ 0.75 = approximately 4,167 bottles/hour
Your line should therefore be engineered around roughly 4,200 bottles per hour or more—not simply 3,125.
More importantly, the complete line must achieve that speed.
A filler rated at 80 bottles per minute provides little value if the plug insertion station can reliably process only 45 bottles per minute.
The Real Line Speed Rule
A useful purchasing principle is:
Practical line output is limited by the slowest critical operation.
That operation may be filling, but on small bottles it can just as easily be plug insertion, pump placement, capping or labeling.
Ask your supplier for the complete-line output, not only the filler speed.

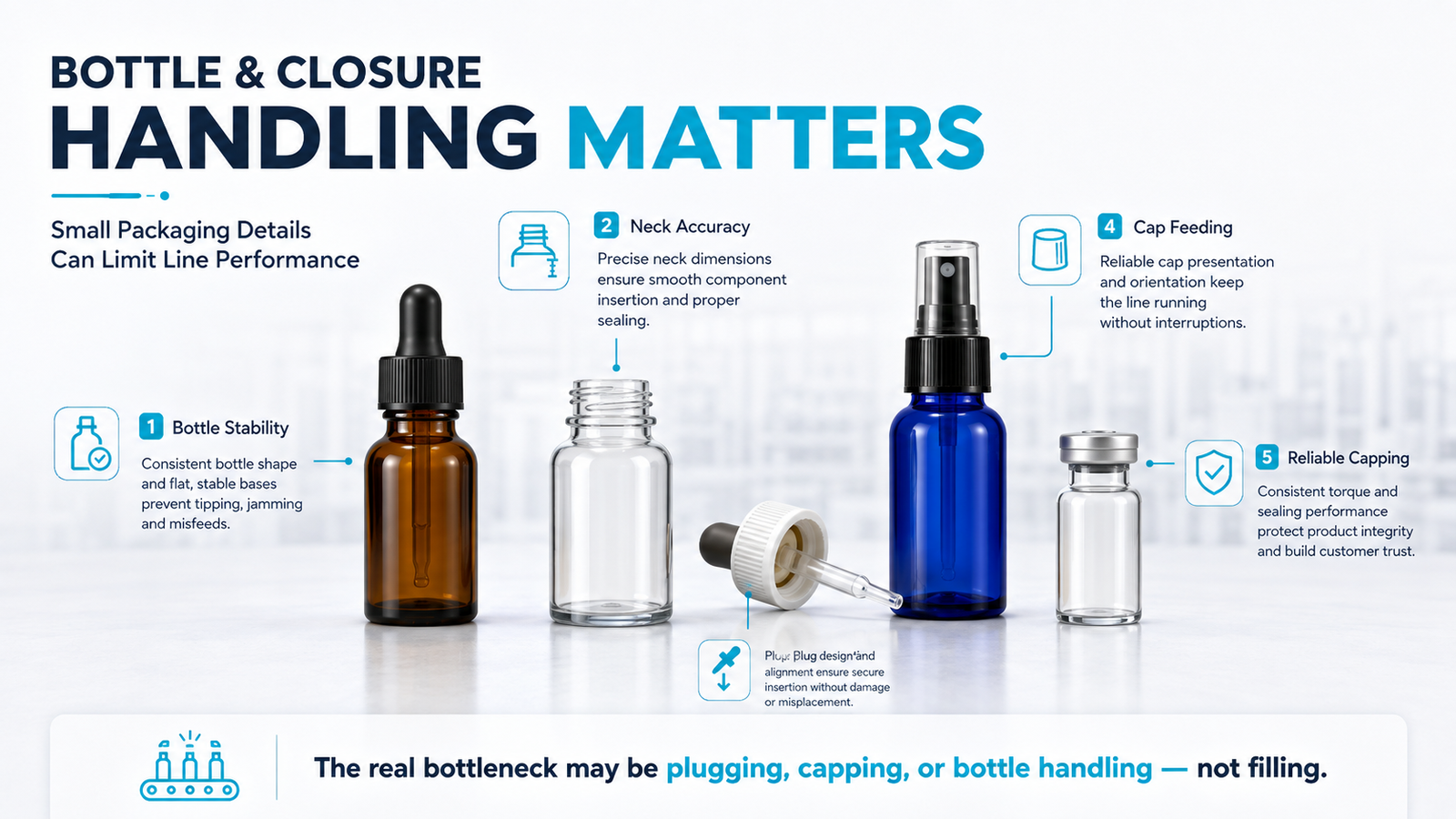

Bottle and Closure Handling Can Be the Real Bottleneck
Small bottles introduce handling problems that are often underestimated.
Narrow containers may:
- tip on conveyors
- move inside guide rails
- have limited nozzle clearance
- require special positioning
- become unstable during capping
Filamatic also notes that unusual container geometry and small neck openings can restrict nozzle placement and affect filling performance.
Closures create another level of complexity.
A simple screw cap is very different from:
- dropper plugs
- tamper-evident tips
- long dip-tube spray pumps
- child-resistant caps
- rubber stoppers
- crimped perfume pumps
Ask the supplier to test the complete bottle-and-closure combination. A filling line is successful only when the finished package—not just the filling station—runs reliably.
Monoblock or Modular Linear Filling Line?
Small-bottle systems generally use either compact monoblock architecture or modular linear equipment.
Monoblock Filling Line
A monoblock combines several operations within one compact machine.
It can be attractive when:
- factory space is limited
- bottle formats are relatively stable
- filling and closing need precise synchronization
- a compact production cell is preferred
Commercial monoblock equipment is widely used for vials and small bottles because filling, plugging and capping can be integrated into one system.
Modular Linear Filling Line
A linear line connects individual machines through conveyors.
It is often more practical when:
- several bottle formats are produced
- SKU changes are frequent
- future expansion is expected
- machines may need to be upgraded independently
- easier access for maintenance is important
For a detailed comparison, read Linear Filling Machine vs Rotary Filling Machine.

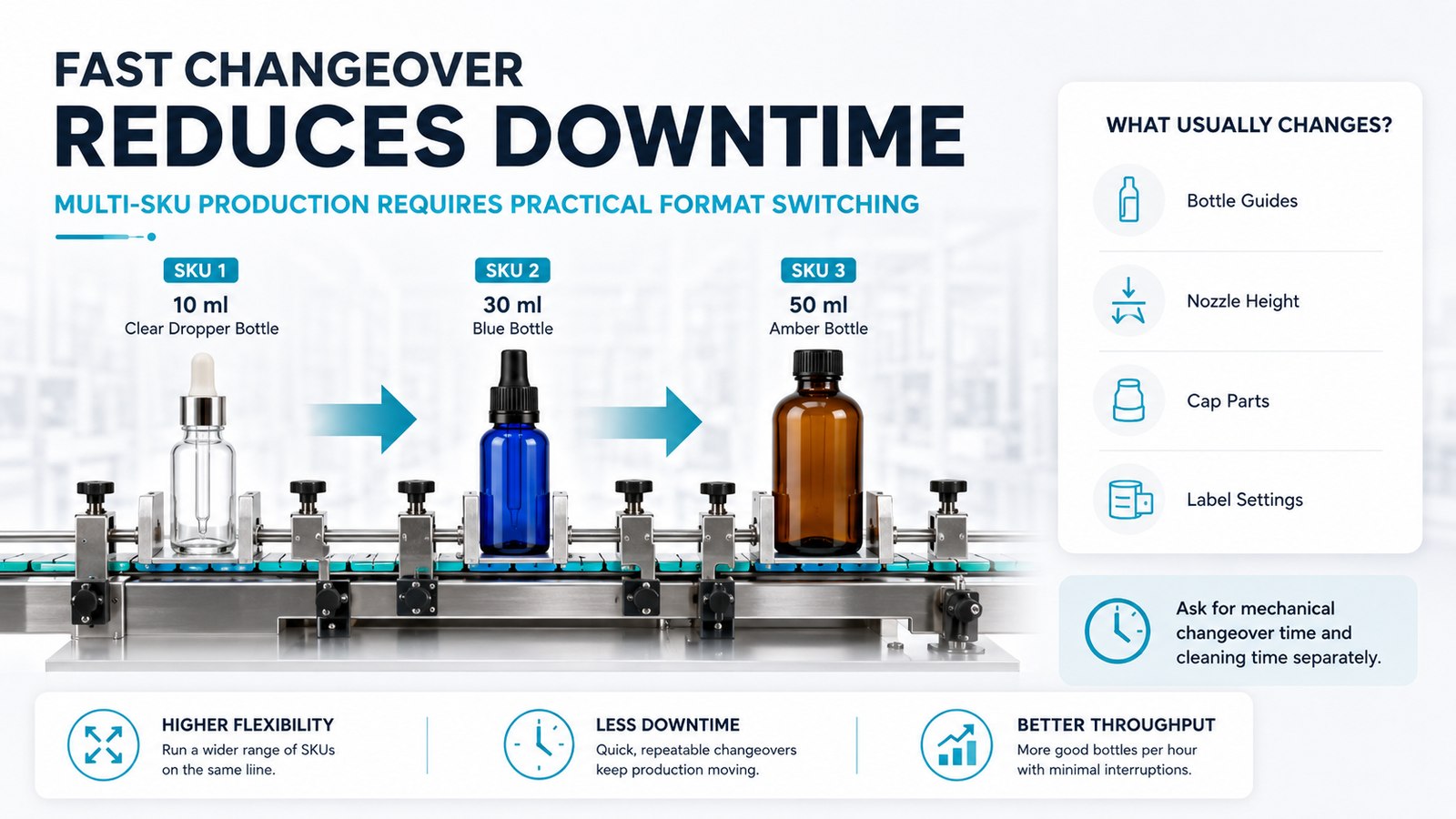

Changeover: The Specification Buyers Often Forget
A machine may be able to fill 10 ml, 30 ml and 50 ml bottles, but this does not mean changing between them is easy.
Ask exactly what must be changed:
- conveyor guide width
- nozzle height
- filling recipe
- bottle indexing parts
- starwheels
- plug guides
- cap chutes
- capping heads
- label settings
- sensors
Then ask:
How long does one complete mechanical and product changeover take?
For manufacturers operating multiple SKUs, changeover may affect annual capacity more than a small difference in maximum machine speed.
Also separate mechanical changeover time from product cleaning time. They are not the same.
Cleaning, Product Contact Parts and Compliance
Cleaning requirements should be defined before equipment is ordered.
For food applications sold in the United States, buyers should evaluate equipment and sanitation requirements within the context of FDA Current Good Manufacturing Practice requirements under 21 CFR Part 117.
For finished pharmaceutical manufacturing, FDA CGMP requirements include 21 CFR Parts 210 and 211.
Machine safety requirements also depend on the destination market. For machinery placed on the EU market before January 20, 2027, the European Commission states that Machinery Directive 2006/42/EC remains applicable; Regulation (EU) 2023/1230 becomes applicable from January 20, 2027.
Do not treat a generic “food grade,” “GMP” or “CE” statement as sufficient evidence. Confirm which requirements apply to your product, facility and destination market.

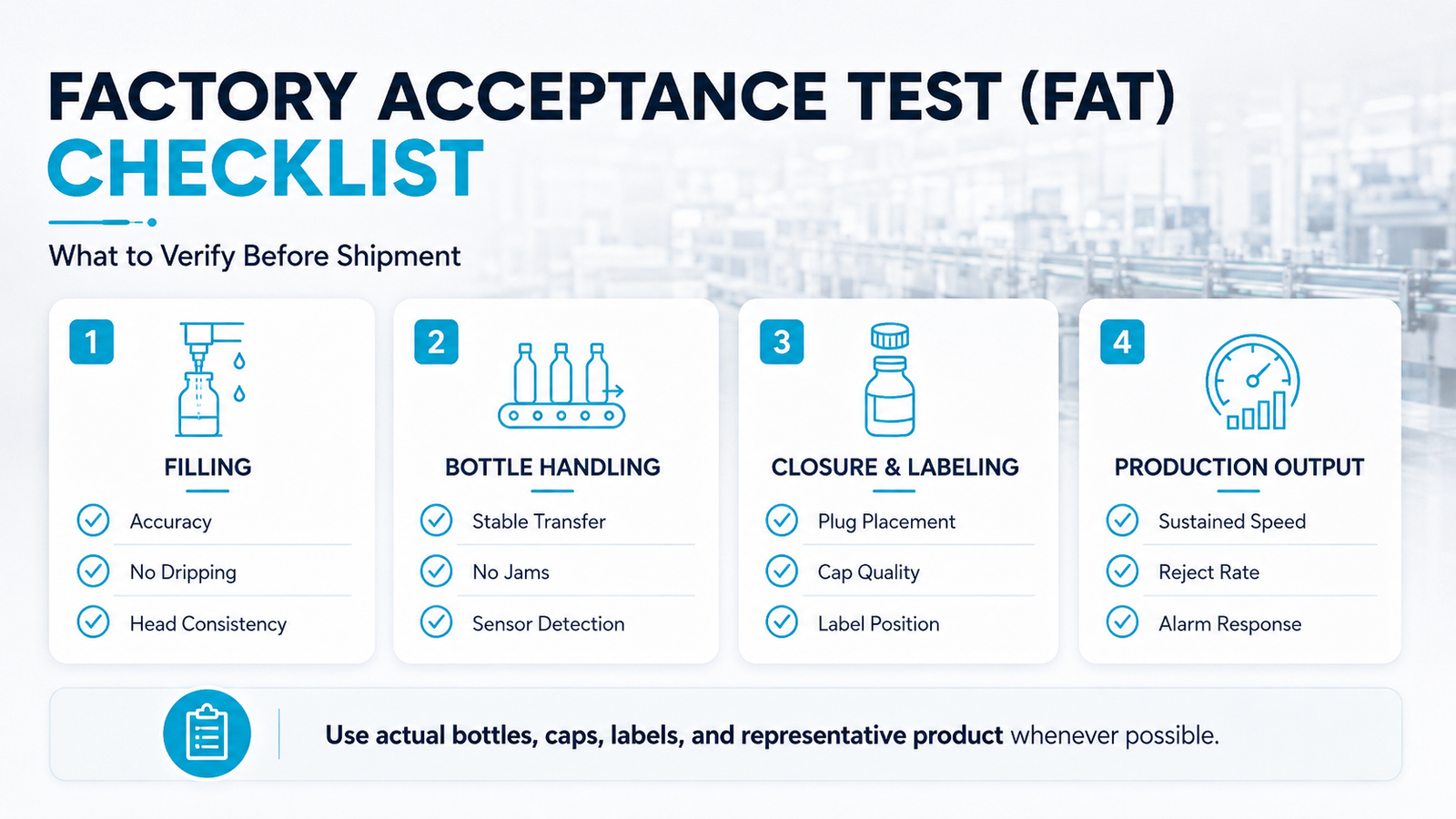

FAT: What Should You Test Before Shipment?
Factory Acceptance Testing is one of the most effective ways to reduce commissioning risk.
Do not accept an FAT that only proves that the conveyor moves and the machine can fill water into a convenient demonstration bottle.
Whenever practical, send production-grade:
- bottles
- plugs or droppers
- caps
- pumps
- labels
- cartons
- representative product
Then define acceptance criteria before the test.
Recommended Small Bottle Filling Line FAT Checklist
Check:
Filling
- average fill result
- variation across all filling heads
- dripping
- foaming
- product splashing
Bottle handling
- bottle tipping
- jams
- sensor detection
- transfer between machines
Closure
- plug insertion rate
- cap feeding stability
- cap torque or crimp quality
- leakage
Labeling
- position
- wrinkle
- skew
- bottle rotation
Production
- sustained complete-line speed
- reject rate
- alarm handling
- restart after stoppage
A five-minute video at maximum speed is not the same as sustained production testing.
This FAT framework is one of the most important documents a professional buyer should agree with the supplier before shipment.
Compare Total Cost — Not Only Machine Price
A serious supplier can prepare a better proposal when the inquiry contains real production information.
Send:
- Product name and characteristics
- Filling volume range
- Bottle photos and dimensions
- Bottle samples if available
- Neck diameter
- Plug, dropper, pump or stopper details
- Cap dimensions
- Label size
- Required bottles per hour
- Number of SKUs
- Factory voltage and frequency
- Available production space
- Required downstream packaging
- Destination country
If you are still selecting the basic machine configuration, our small bottle filling machine selection guide explains how product and package characteristics affect machine choice.
What Should You Send a Supplier Before Asking for a Quotation?
Two quotations for an automatic filling line may look similar but include very different scopes.
Compare:
- filling technology
- number of filling heads
- automatic cap feeding
- plug insertion
- labeling
- coding
- safety guarding
- change parts
- spare parts
- installation
- training
- documentation
- warranty
- remote support
Also calculate the hidden cost of poor equipment selection.
For example:
Annual overfill cost = overfill per bottle × annual production × product cost per ml
For a high-value essential oil, serum or reagent, reducing unnecessary overfill can have more financial value than saving several thousand dollars on the initial machine purchase.
For budgeting guidance, see How Much Does a Small Bottle Filling Machine Cost?.
Final B2B Buyer Checklist
Before placing an order, make sure you can answer yes to these questions:
- Has my actual product been evaluated?
- Have my production bottles and closures been evaluated?
- Is the filling technology suitable for my viscosity?
- Is the promised speed for the complete line?
- Are all required bottle formats included?
- Do I know the change parts required?
- Has changeover time been discussed?
- Is cleaning practical for my production schedule?
- Are product-contact materials documented?
- Is the machine suitable for my destination-market requirements?
- Have FAT acceptance criteria been agreed?
- Are spare parts and after-sales support defined?
- Can the line support future SKUs?
If several answers are still “no,” the project specification is probably not ready for final purchase approval.
People Also Ask / FAQ:
There is no single best machine. For low-viscosity small-dose products, peristaltic or ceramic pump systems may be suitable. More viscous products may require piston or other positive-displacement filling. Bottle design, closure type, fill volume and cleaning requirements should be evaluated together.
Yes, if multi-format production is considered during the original design. Conveyor guides, filling height, indexing, capping parts and labeling settings may need adjustment or dedicated change parts.
Output can range from relatively modest production to several thousand bottles per hour depending on filling volume, number of filling heads, bottle handling, plug insertion, cap type and labeling process. Always request complete-line speed based on your actual package.
A standalone filler may be enough when you already have reliable downstream equipment. A complete filling, capping and labeling line becomes more attractive when manual closure handling, labor, inconsistent torque, label alignment or production flow is restricting output.
Send actual bottles, plugs, droppers, pumps, caps and labels whenever possible. Representative product samples are also useful when viscosity, foaming, compatibility or filling behavior affects machine selection.
The FAT should verify filling accuracy, complete-line output, bottle handling, cap or plug placement, capping quality, labeling, alarms, changeover and sustained operation using production-grade samples whenever practical.
Final Recommendation
An automatic small bottle filling line is a production system, not simply a filling machine.
For B2B buyers, the safest purchasing process is to start with the product and packaging, calculate realistic shift output, identify the slowest operation, verify changeover requirements and then test the complete solution before shipment.
The machine with the highest advertised bottles-per-minute figure is not necessarily the machine with the highest real production value.
The better investment is the line that consistently delivers saleable bottles with the required filling accuracy, closure quality and packaging appearance—while remaining practical to clean, change, maintain and expand.
Planning an Automatic Small Bottle Filling Line?
Send Shanghai Honest Machinery your:
- product
- filling volume
- bottle and closure photos
- bottle dimensions
- required output
- label information
- destination country
Our engineering team can evaluate the complete packaging process and recommend a customized filling, plugging, capping, labeling and downstream packaging solution.
Request a custom automatic small bottle filling line proposal and sample-testing plan before finalizing your equipment configuration.
