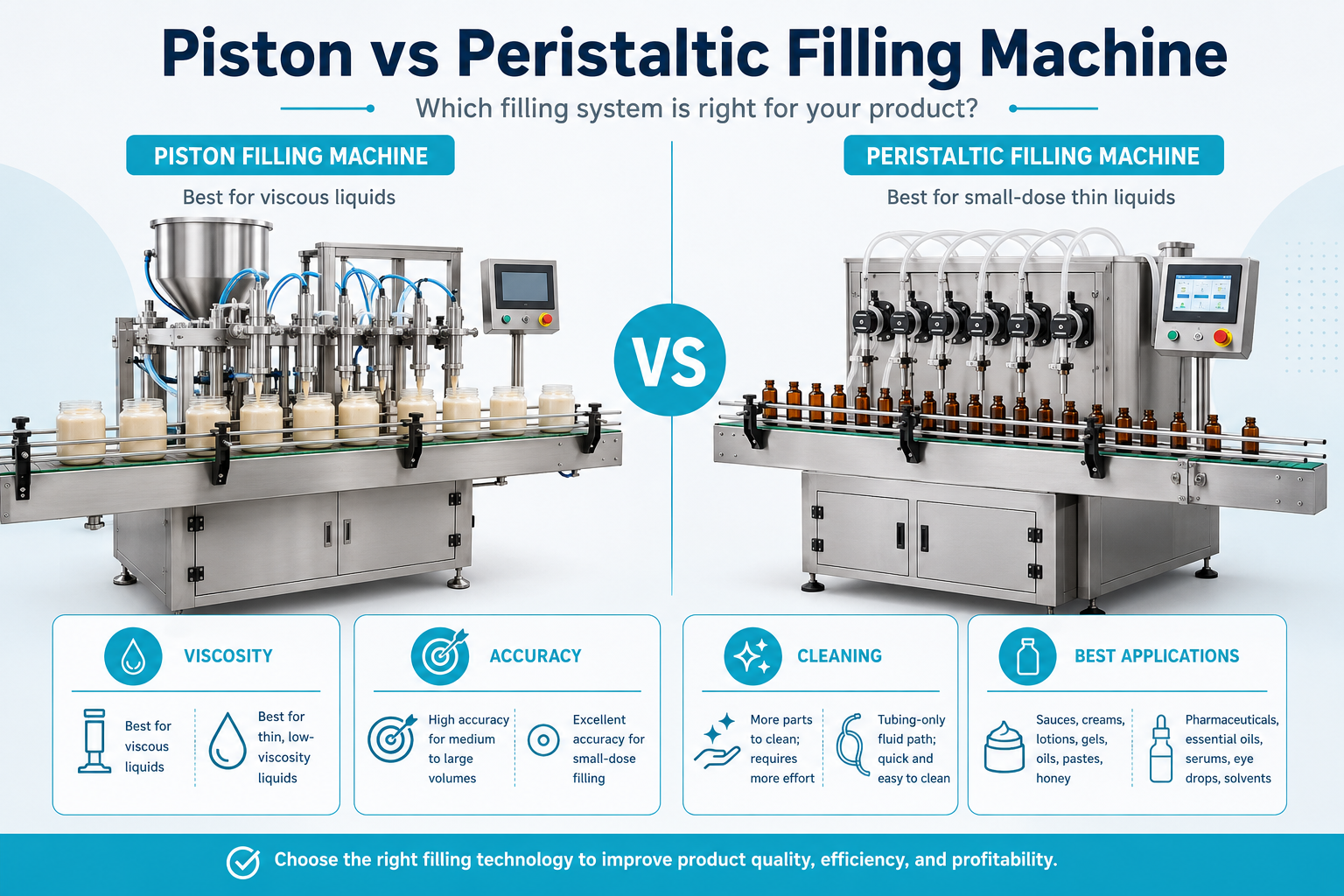

Piston Filling Machine vs Peristaltic Filling Machine: Which One Should You Choose?
Choosing between a piston filling machine and a peristaltic filling machine is not simply a question of which pump is “more accurate.” The right choice depends on product viscosity, fill volume, hygiene requirements, changeover frequency, bottle size and required output. In practical purchasing terms, piston fillers are usually stronger for viscous products and larger doses, while peristaltic fillers are often better for low-viscosity, small-dose or contamination-sensitive liquids. The best machine is the one that produces stable, saleable bottles at the lowest total operating cost with your actual product.
Quick Answer: Which Filling System Fits Your Product?
Choose a piston filling machine for:
- Honey, syrup, jam, mayonnaise, ketchup or sauce
- Cream, lotion, gel, shampoo or petroleum jelly
- Medium-to-high-viscosity products
- Larger filling volumes or higher output per nozzle
- Products requiring strong suction and positive discharge
Choose a peristaltic filling machine for:
- E-liquid, essential oil, eye drops or oral liquid
- Diagnostic reagents and sensitive formulations
- Low-viscosity liquids in small bottles
- Multiple flavors or formulas with frequent changeovers
- Applications where a replaceable fluid path is valuable

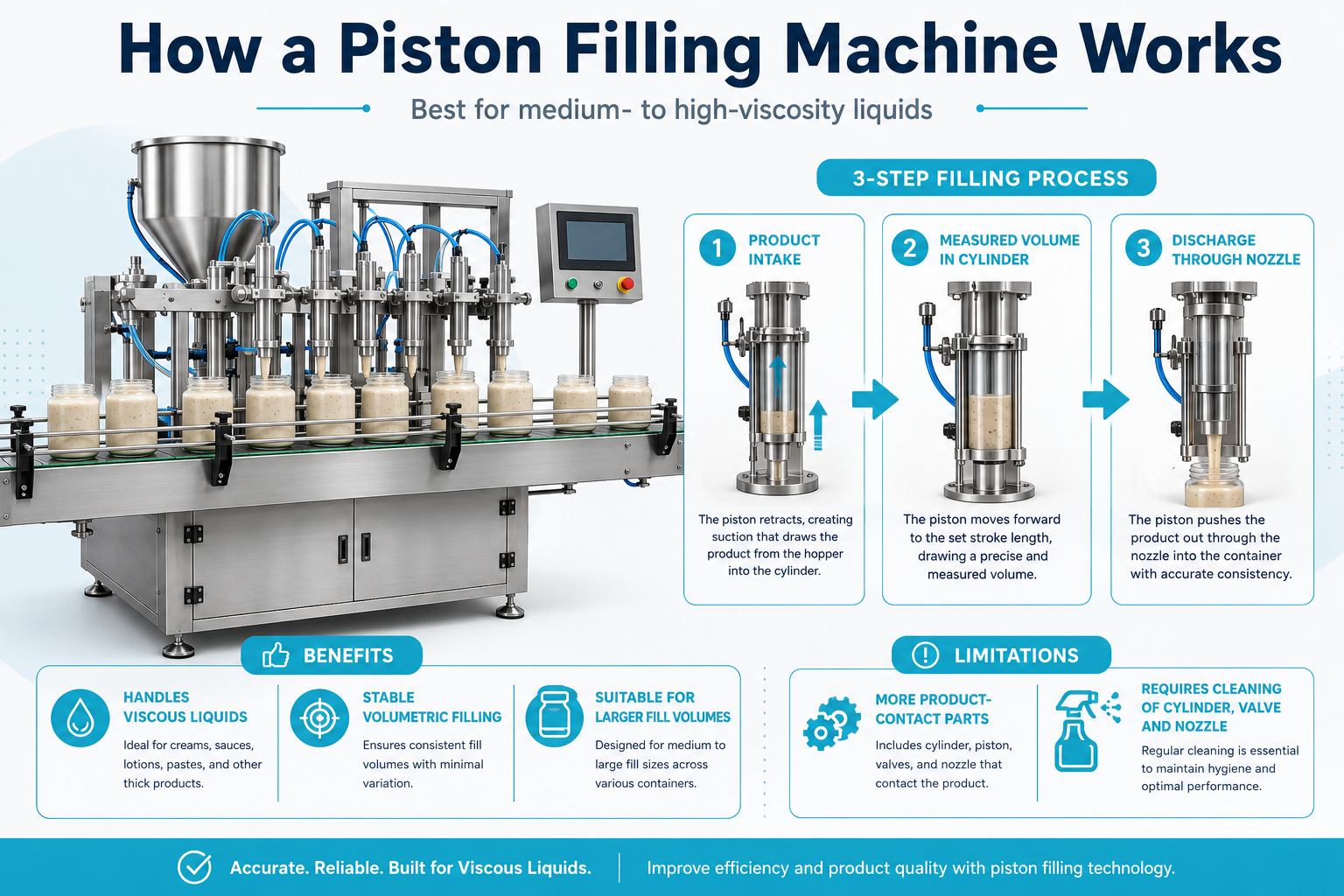

How Does a Piston Filling Machine Work?
A piston filler is a volumetric filling system. The piston retracts to draw product into a cylinder, then moves forward to discharge a measured volume through the filling nozzle. Adjusting the piston stroke changes the delivered quantity.
Because a positive-displacement system moves a defined volume mechanically, it is commonly used where controlled flow and reliable handling of different viscosities are required.
This positive-displacement action makes piston filling equipment effective for liquids that do not flow easily under gravity.
Advantages of Piston Filling Machines
- Strong performance with viscous and semi-viscous products
- Stable dosing for bottles, jars and larger containers
- High production potential with multiple filling heads
- Suitable for some products containing soft particles
- Fill volume can be adjusted through servo settings
Piston systems are widely used for thick products because they can generate the force required to draw and discharge creams, sauces, pastes and other high-viscosity materials.
Limitations of Piston Filling Machines
The cylinder, piston, valves, seals, hoses and nozzles are product-contact components. They require proper cleaning between batches.
For factories changing flavors, colors or formulas several times per day, this can increase downtime. Seals and valve parts also need scheduled inspection, especially when filling sticky, abrasive or chemically aggressive products.

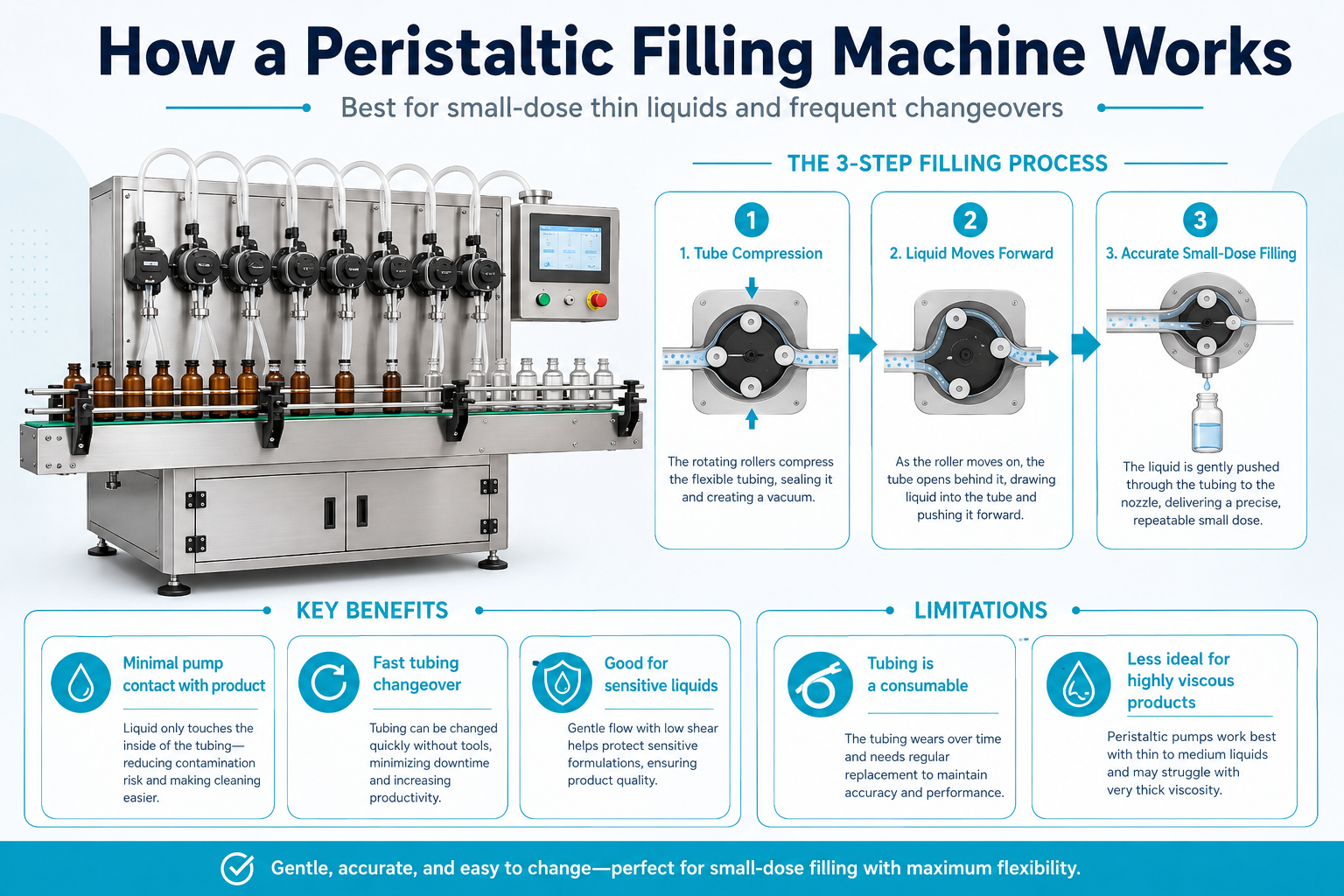

How Does a Peristaltic Filling Machine Work?
A peristaltic pump moves liquid through flexible tubing. Rollers compress the tube and push a trapped quantity of liquid toward the nozzle. Once the roller passes, the tube returns to its original shape and draws in more liquid.
Because the product remains inside the tubing, the pump mechanism itself does not contact the liquid. Peristaltic pumps therefore have no product-contact valves, glands or piston seals inside the pump head.
The dose is controlled by pump rotation, run time, tubing size and calibration.
Advantages of Peristaltic Filling Machines
- A simple, isolated product path
- Fast product changeover when tubing sets are replaced
- No valves or piston seals in the pump chamber
- Well suited to low-viscosity, small-dose liquids
- Useful when reducing cross-contamination is important
Properly calibrated peristaltic systems can achieve precise metering, although final performance depends on the pump, tubing, liquid and operating conditions.
Limitations of Peristaltic Filling Machines
Tubing is a consumable component. Repeated compression by the rollers gradually changes the tubing’s mechanical characteristics, so tube life and flow stability must be monitored.
Before purchasing, evaluate:
- Tubing replacement frequency
- Chemical compatibility
- Tubing cost
- Required flow rate
- Filling volume
- Product temperature
- Production duration per shift
Performance can decline as viscosity, dose size or required filling speed increases. Always calibrate the machine with the real product rather than water alone.

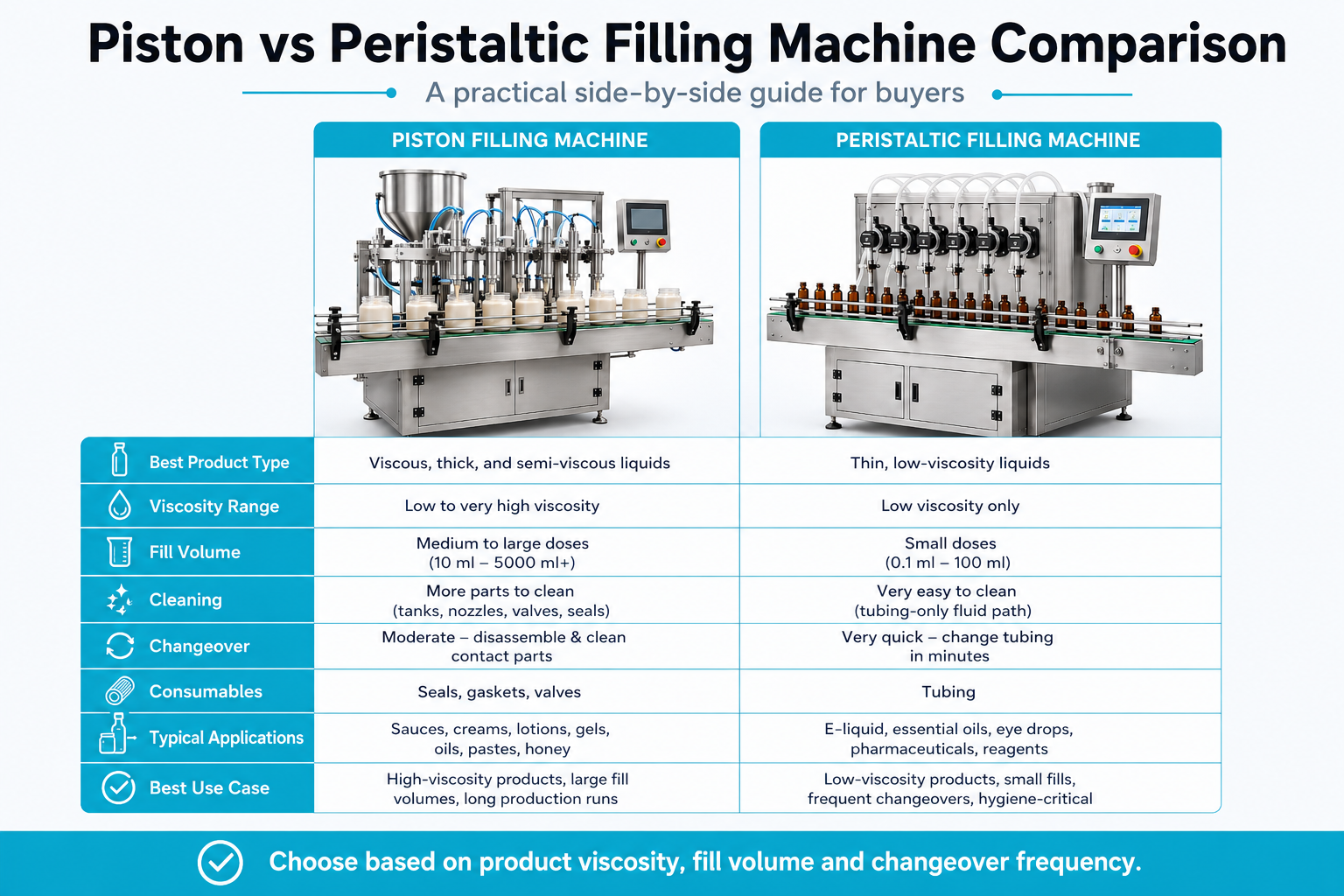

Piston vs Peristaltic Filling Machine Comparison
| Decision factor | Piston filling machine | Peristaltic filling machine |
|---|---|---|
| Best product type | Medium-to-high-viscosity liquids, creams and pastes | Low-viscosity, small-dose and sensitive liquids |
| Typical applications | Honey, sauce, lotion, shampoo, gel and cream | E-liquid, essential oil, eye drops and reagents |
| Product contact path | Cylinder, valves, seals, hoses and nozzles | Mainly tubing and filling nozzle |
| Product changeover | More components to flush or clean | Faster when replaceable tubing is used |
| High-viscosity performance | Strong | More limited |
| Small-dose flexibility | Good with the correct cylinder size | Excellent for many thin liquids |
| Main consumables | Seals, O-rings and valves | Pump tubing |
| Multi-flavor production | Possible, but cleaning may take longer | Well suited |
| Main purchasing priority | Viscosity handling and throughput | Clean changeover and fluid-path isolation |

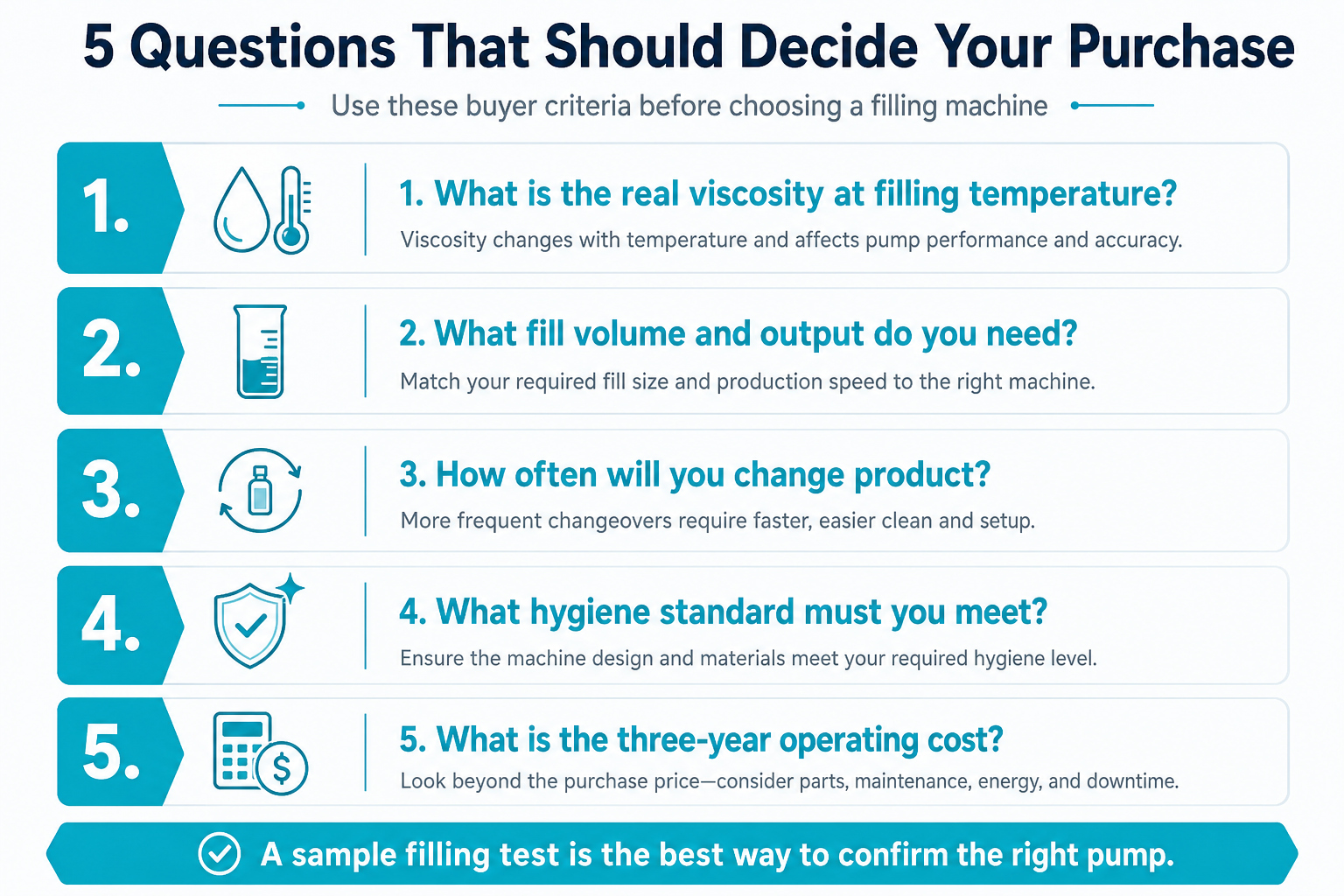

Five Questions That Should Decide Your Purchase
1. What Is the Real Viscosity at Filling Temperature?
Do not select a filling pump using only a general product name such as “oil,” “syrup” or “cream.”
A syrup that flows easily at 40°C may become considerably thicker at 15°C. Cosmetic creams and petroleum jelly can also change consistency according to production and storage temperature.
Ask the supplier to test your product at the lowest expected filling temperature, not only under ideal laboratory conditions.
For thick sauce, cream, gel or honey, a servo piston filler is normally the safer starting point. For thin oil, e-liquid, fragrance or aqueous solutions, peristaltic filling may provide greater changeover flexibility.
2. What Fill Volume and Output Do You Need?
Peristaltic pumps are attractive for small bottles because tubing size and pump rotation can be selected for controlled dosing.
Piston systems can also fill small doses, but the cylinder must be correctly sized. Using a large cylinder to deliver a very small dose may reduce adjustment resolution.
For larger filling volumes, evaluate cycle time as well as accuracy. A slow filling station can restrict the speed of the complete filling, capping and labeling line.
Do not ask only:
What is the maximum machine speed?
Ask instead:
What speed can the machine maintain with my product, fill volume, bottle opening and number of filling heads?
3. How Often Will You Change Product?
A factory filling one product throughout the week has different requirements from a contract packer producing ten formulations per day.
Peristaltic systems can shorten changeovers because most of the fluid path consists of tubing. Operators can install a dedicated tubing set for each flavor or formulation.
A piston machine may deliver higher throughput, but cleaning its hopper, cylinder, valves and pipelines may take longer.
The more useful performance measurement is therefore:
Saleable bottles per shift after cleaning, setup and calibration
This is more meaningful than the machine’s advertised maximum speed.
4. What Hygiene Standard Must You Meet?
For food, cosmetics and general chemical products, hygienic stainless-steel construction and documented cleaning procedures may be sufficient.
Sterile or aseptic pharmaceutical production requires evaluation of the complete process, including equipment surfaces, transfer lines, filling areas, container handling and process validation. FDA guidance emphasizes that aseptic control extends across product-contact equipment and the complete filling operation.
A peristaltic pump can simplify the product path, but it does not make a filling line aseptic by itself.
5. What Is the Three-Year Operating Cost?
Do not compare only the initial quotation.
Calculate:
- Tubing, seals and O-ring consumption
- Cleaning water and chemicals
- Changeover labor
- Product loss during priming
- Maintenance downtime
- Spare-part availability
- Reject and overfill rates
- Output achieved with your actual product
A lower-priced machine can become more expensive when it creates long cleaning cycles, frequent tubing replacement, excessive product giveaway or production bottlenecks.

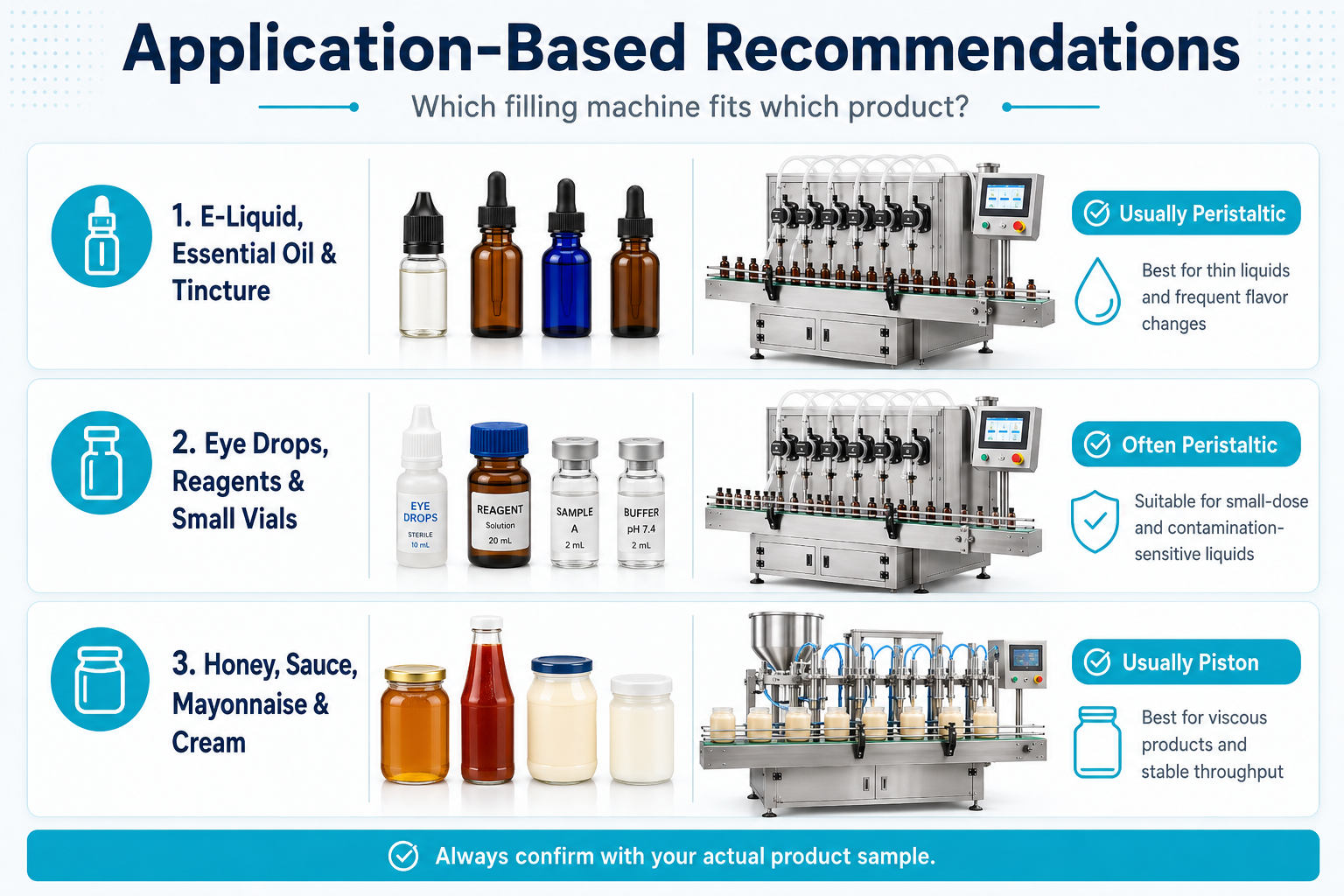

Application-Based Recommendations
E-Liquid, Essential Oil and Tincture
A peristaltic pump is often the first option for thin products, small bottles and frequent flavor changes.
A piston pump may be more suitable for thicker formulations, larger filling volumes or long production runs using one stable product.
An automatic e-liquid filling machine can be configured with either peristaltic or piston filling after evaluating viscosity, bottle volume and production requirements.
Eye Drops, Reagents and Small Vials
Peristaltic filling is attractive because the product path can be limited mainly to replaceable tubing and nozzles.
However, regulated projects must evaluate the complete process, including bottle feeding, filling environment, stoppering, capping, product-contact materials and validation.
Review the available vial filling machine and automatic eye drop filling machine configurations rather than selecting the pump in isolation.
Honey, Sauce, Mayonnaise and Cream
A servo piston filling machine is normally the more practical choice.
Its positive-displacement action provides the force required for high-viscosity products, while anti-drip or diving nozzles help control stringing and keep the container mouth clean.
Explore related food and sauce filling machines for honey, mayonnaise, jam, ketchup and similar applications.

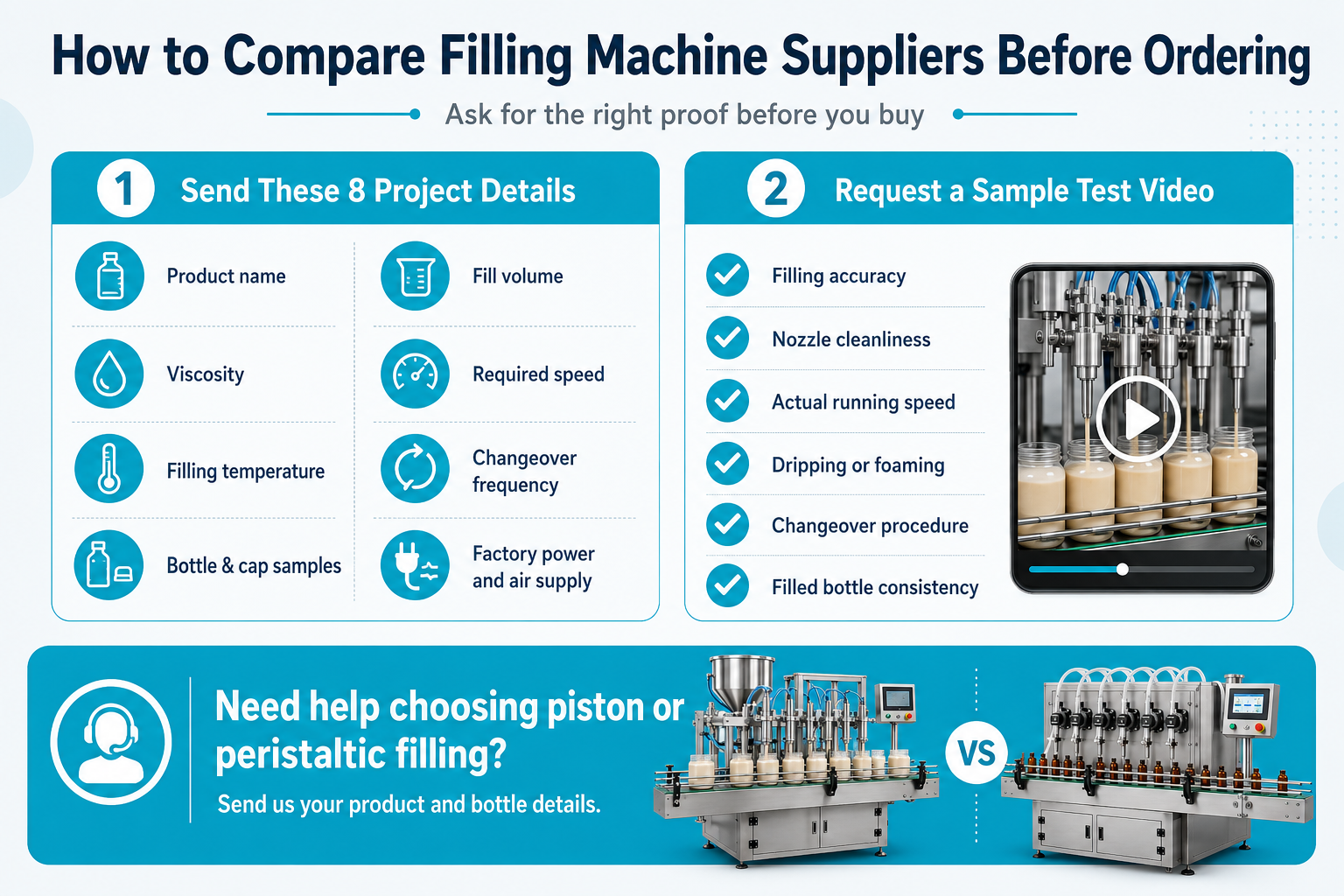

How to Compare Filling Machine Suppliers Before Ordering
Send every supplier the same project information:
- Product name, viscosity and filling temperature
- Bottle samples and fill-volume range
- Required bottles per minute
- Number of products, flavors or colors
- Required cleaning procedure
- Cap, plug, dropper or stopper structure
- Factory voltage and available air supply
- Available production-line space
Request a test video using your actual liquid and containers.
The video should show:
- Filling accuracy
- Nozzle cleanliness
- Actual operating speed
- Product foaming or dripping
- Changeover procedures
- Bottle and cap handling
- Filled-container consistency
This evidence is more useful than a general claim such as “accuracy up to ±0.5%,” because actual filling performance depends on the complete configuration.
Final Verdict
Choose a piston filling machine when viscosity, larger doses and production throughput are the main challenges.
Choose a peristaltic filling machine when you are filling thin, small-dose or sensitive liquids and faster product-path changeovers are more important.
For many small-bottle projects, the answer cannot be determined by the industry name alone. E-liquid, essential oil, serum and pharmaceutical liquids can vary significantly in viscosity, chemical compatibility and hygiene requirements.
A sample filling test remains the most reliable way to confirm the pump, tubing, nozzle and control settings before manufacturing the complete line.
People Also Ask / FAQ:
Not automatically. Both systems can provide accurate dosing when correctly sized and calibrated. Actual performance depends on the liquid, fill volume, pump size, tubing or cylinder selection, nozzle design and control system.
It can handle some viscous liquids, but output normally decreases as viscosity and suction resistance increase. For honey, thick cream, paste and heavy sauce, piston filling is usually more efficient.
Some piston fillers can handle products containing soft or suspended particles when equipped with appropriately sized valves, passages and nozzles. The particle size and concentration should be tested before the machine is manufactured.
Peristaltic filling is generally more convenient when flavors change frequently because dedicated tubing sets can shorten changeover and reduce cross-contamination.
