Automatic shampoo filling machine

Customized shampoo bottle filling, capping and labeling solution for 0.5–5L personal care and cosmetic products.

Our automatic shampoo filling machine is designed for thick, foamy and medium-to-high viscosity products such as shampoo, conditioner, body wash, liquid soap, shower gel, lotion and other personal care liquids. Compared with a basic shampoo filler, this system can be customized as a complete shampoo bottle filling line with automatic bottle feeding, servo piston filling, anti-drip nozzles, capping, labeling and date coding.

The machine supports different bottle shapes and sizes, including flat bottles, round bottles, pump bottles and 0.5–5L cosmetic or household care containers. The filling system can be adjusted according to your product viscosity, bottle opening, target filling volume and production speed, helping reduce foam, leakage and product waste during continuous operation.

Key Options:
Servo piston filling system | Anti-foam filling nozzle | SUS304/SUS316L contact parts | Automatic capping machine | Labeling machine | Coding system | Custom conveyor layout

Send us your bottle size, cap type, shampoo viscosity and required speed. We will recommend the most suitable shampoo filling and packaging solution for your production line.

Facebook
LinkedIn
Pinterest
WhatsApp
linear-type-shampoo-filling-machine
linear-shampoo-filling-machine-features
shampoo-filling-machine-applications-suitable-bottles

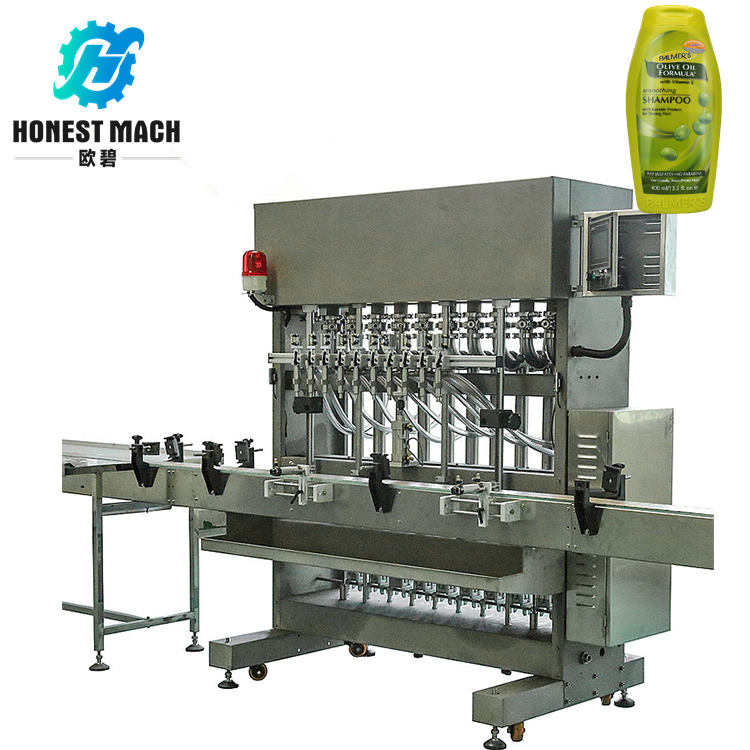

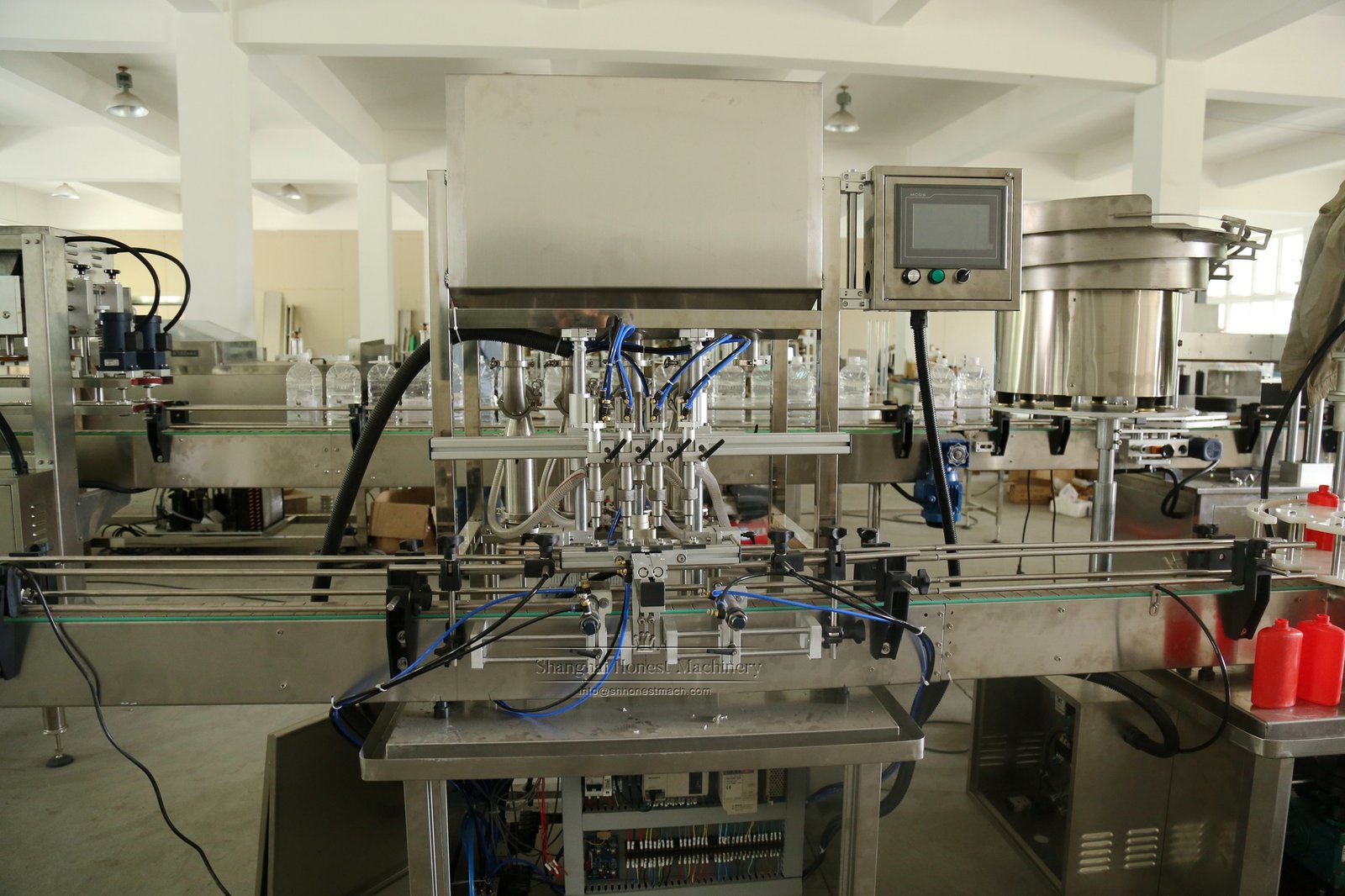

Automatic Shampoo Filling Machine Line

Working video:

What we can offer you:

  • 100% Refund Policy

    If the quality is poor or it can’t run your product, we guarantee a 100% full refund for your peace of mind

  • Two years warranty

    Any equipment purchased from us comes with a two-year warranty.we provide free replacements and cover shipping for parts under 10kg damaged due to quality issues, not deliberate damage

  • Attentive after-sales service

    We promise: all equipment purchased from us is backed by comprehensive after-sales service and lifetime benefits.

  • Timely production and delivery

    We oversee the entire process from receiving samples to design and production, providing timely photos and videos to showcase the entire process to ensure the efficiency of equipment production and timely delivery

Parameter:

  • Model: Automatic shampoo filling machine
  • Filling volume: 10-2000ml(customized)
  • Filling nozzles: 1-12 nozzles for your optional(customized)
  • Filling speed: 10-100BPM for your  optional(customized)
  • Filling method: Piston pump for filling with servo motor control
  • Filling accuracy: ±1%(according to product)
  • Capping rate: ≥99.99%
  • Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
  • Total dimension: 1870mm*1520mm*1980mm(customized)

Highlight:



1.It use piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).

2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use

1.It can quickly change for different diameter bottes

1.The hopper with mixer and it is double jacket with heating function and make it more easier to do filling for high viscosity products

2.Machine also comes with cleaning function that can do cleaning automatically after finish filling

The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use

What you can get with our linear type shampoo filling machine:

contact_us_honest_machinery

Related Products:

FAQ:

A linear filling machine is often a better choice for shampoo manufacturers producing multiple bottle sizes or frequently changing SKUs. The filling heads, guide rails and conveyor settings are easier to access and adjust, while additional filling heads can be configured according to the required output.

A rotary machine can be attractive for very high-volume production of relatively standardized containers, but a linear system generally offers more flexibility when one factory needs to run shampoo, conditioner, body wash and different bottle formats on the same line.

For this machine, 1–12 filling nozzles and 10–100 bottles/min can be customized according to the actual bottle volume, viscosity and production target.

Yes. Foam can make a bottle appear full before the required amount of actual product has entered it.

For foamy surfactant-based products, the filling process therefore needs to control not only the dosing volume but also filling speed, nozzle position and product impact inside the bottle. Industry suppliers commonly use slower-flow or anti-foam filling strategies for shampoo to reduce excessive foam formation. LEKA PACK Line

Our machine can use anti-foam filling nozzles and optimized filling parameters. For FAT, we recommend checking the actual product quantity after the foam has settled, rather than judging accuracy only from the temporary liquid level immediately after filling.

High-viscosity shampoo can form a thin product string when the filling nozzle closes. This is different from simple dripping and can contaminate the bottle neck, cap area or conveyor.
For this reason, nozzle shut-off behavior is important. Depending on the shampoo formula, we can optimize the filling nozzle, cut-off action and servo filling profile to obtain a cleaner finish at the end of each dose.
The actual result should be tested with your product because a clear shampoo, silicone-rich conditioner and very thick moisturizing shampoo can behave differently even when their nominal filling volume is the same.

Yes, but products that contain pearlescent ingredients, suspended components or formulas prone to separation require more attention to product handling before they reach the filling nozzle.

Your machine can be configured with a hopper mixer, allowing gentle product circulation or agitation during production. A double-jacket hopper with heating is also available where the formulation requires controlled temperature for easier filling. Shanghai Honest Machinery

However, agitation speed should not simply be increased as much as possible. Shampoo contains surfactants, so aggressive mixing may introduce additional air and foam. The mixing method should therefore be confirmed using the real formulation.

Viscosity changes can affect filling speed, nozzle cut-off and overall line performance even when the target volume remains unchanged.

For example, a shampoo may flow differently during a cold morning startup than after several hours of production in a warmer workshop. With servo-controlled piston filling, filling parameters can be adjusted and stored for different products or operating conditions. Your machine can also be configured with a jacketed hopper and heating function when the product formulation permits temperature control. Shanghai Honest Machinery

For projects where viscosity varies significantly, we recommend providing the actual operating temperature range and product viscosity, rather than only sending a room-temperature sample. This gives a more realistic basis for machine testing and production-speed confirmation.
