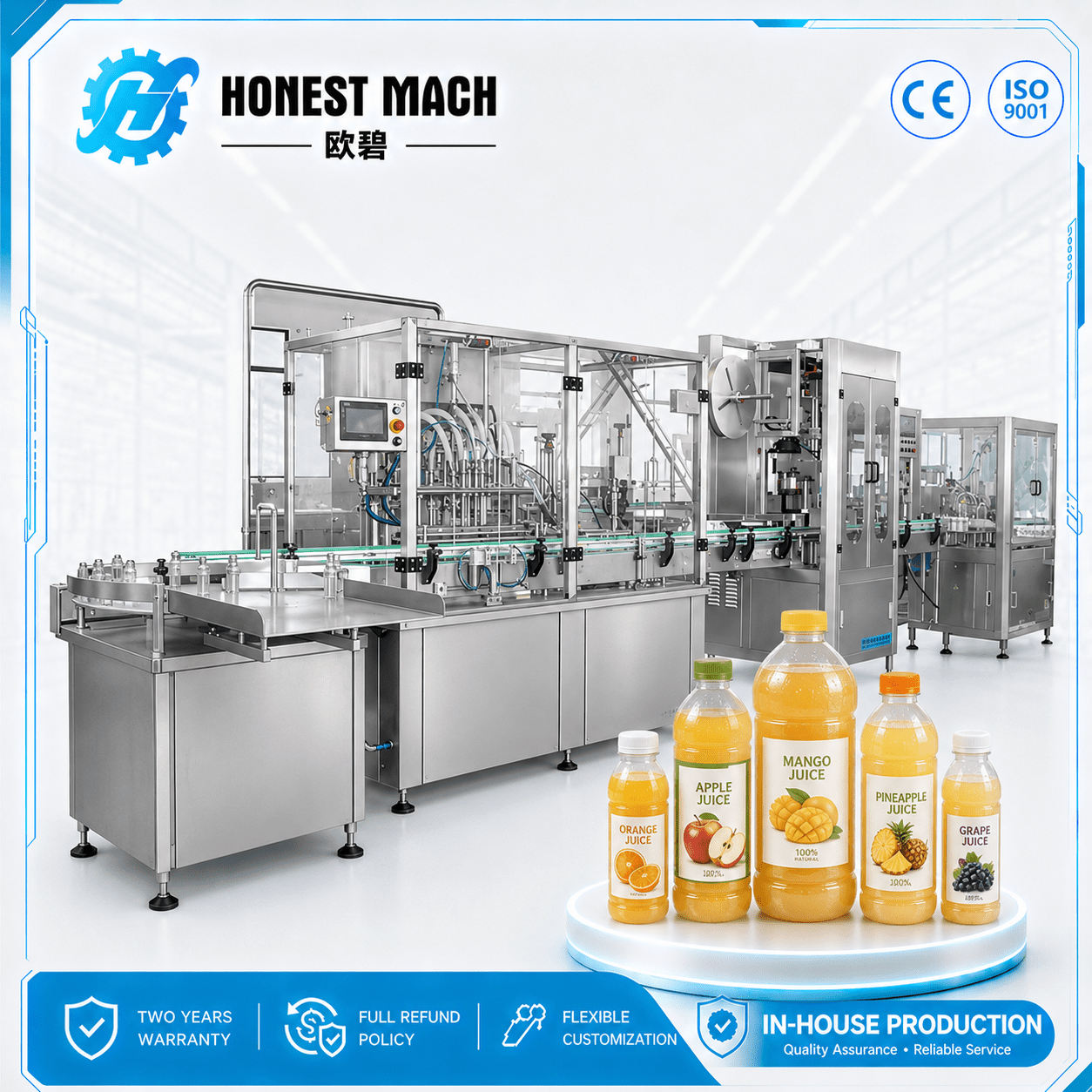

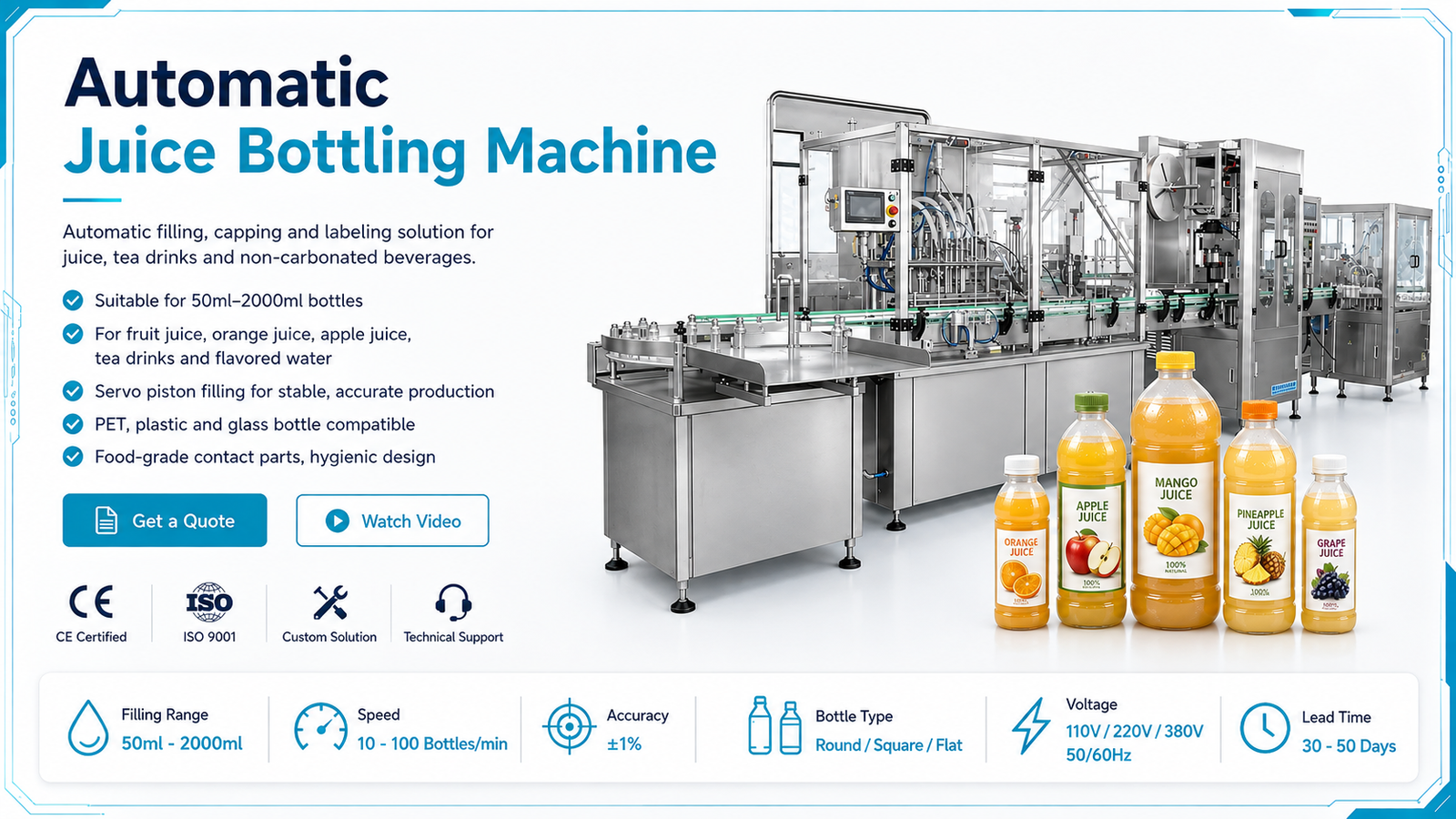

Automatic juice bottling machine
Inline juice bottle filling solution for fruit juice, orange juice, apple juice, vegetable juice, tea drinks and non-carbonated beverages.
Our automatic 4 heads juice filling machine is designed for filling fruit juice, orange juice, apple juice, vegetable juice, tea drinks, flavored water and other non-carbonated beverage products into plastic bottles, PET bottles, glass bottles or small beverage containers.
This inline juice filling machine can be customized according to your bottle volume, juice type, filling temperature, cap style and required production capacity. For clear juice or low-viscosity beverages, the machine can use gravity filling or flow meter filling. For juice with pulp, particles or higher viscosity, a piston filling system or enlarged filling valves can be selected to keep filling stable and reduce blockage.
Key Features:
- Suitable for different juice products including fruit juice, orange juice, apple juice, vegetable juice, tea drinks, flavored drinks and non-carbonated beverages.
- 4-head inline filling design for flexible production, easy operation and convenient bottle size changeover.
- Custom filling system available for clear juice, pulp juice, low-viscosity drinks or slightly thick beverage products.
- Food-grade contact parts with stainless steel structure for clean and hygienic juice filling production.
Working video for juice bottle:
What we can offer you?
Parameter:
- Model: Juice bottling machine
- Filling volume: 50-2000ml(customized)
- Filling nozzles: 1-12 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 205mm*1480mm*2050mm(customized)
Highlight:
1.It use piston pumps for filling, suitable for materials of different viscosities.
2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter bottles within 30 minutes
1.Machine comes with cleaning function that can do cleaning automatically after finish filling
2.No bottle no filling and no cap no capping
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our juice bottling machine
Related Products:
FAQ:
Yes. This machine can be configured for different juice characteristics. For clear juice or low-viscosity beverages, gravity filling or flow meter filling can be used. For juice with pulp, particles, or slightly thicker texture, the filling system can be upgraded with piston filling or enlarged filling valves to keep the filling process stable and reduce the risk of blockage. This is especially useful for buyers who want one solution for multiple juice SKUs.
The machine is designed with strong flexibility for different production needs. According to the product page, the filling volume can be customized from 50ml to 2000ml, with 1 to 12 filling nozzles available and a filling speed range of about 10 to 100 bottles per minute, depending on the juice type, bottle size, and final line configuration. This makes it suitable for both startup beverage brands and growing factories that need scalable capacity.
Yes, it can be customized according to the filling temperature required by your juice product. This matters because some juice products are hot-filled for shelf-life control, while others are filled at normal temperature. When sending an inquiry, buyers should share the filling temperature, whether the juice contains pulp, and the desired bottle material, so the correct filling method, sealing solution, and conveyor configuration can be matched to the product more accurately.
The machine is designed for flexible bottle changeover. According to the product information, it can quickly change for different bottle diameters within about 30 minutes. This is an important advantage for beverage factories that run several bottle sizes or seasonal juice products, because it helps reduce downtime and improves production efficiency during SKU changes.
A complete juice bottling line can include more than just the filler. Depending on your project, it may include bottle washing, bottle feeding or unscrambling, filling, capping, labeling, shrink wrapping, cartoning, coding, and different tank systems. For juice producers, the final solution should be based on bottle type, cap style, capacity target, and whether the project needs a semi-complete machine or a full automatic production line from bottle feeding to final packaging.
