Automatic cream jar filling machine

Automatic Cream Jar Filling Machine for Cosmetic & Skincare Production

This automatic cream jar filling machine is built for face cream, body butter, eye cream, hand cream, balm, ointment, lotion, sunscreen, gel and other high-viscosity cosmetic paste products. It can fill glass jars, plastic jars, acrylic jars and wide-mouth cosmetic containers with stable accuracy and clean filling performance.it is suitable for cosmetic factories, skincare brands, OEM personal care manufacturers and pharmaceutical cream packaging lines that need an automatic face cream filling machine, cosmetic cream filling capping machine, ointment filling machine or complete cream jar packaging solution.

Key Benefits:

  • Stable filling for high-viscosity cream and paste products
  • Suitable for face cream jars, cosmetic jars, ointment jars and skincare containers
  • Optional filling, capping, sealing, labeling and coding in one production line
  • Customizable structure for different jar sizes, caps, viscosity and output requirements
  • Stainless steel contact parts and easy-clean design for cosmetic production
Facebook
LinkedIn
Pinterest
WhatsApp
automatic-face-cream-jar-filling-machine
face-cream-jar-filling-machine-features
face-cream-filling-machine-applications-suitable-jars

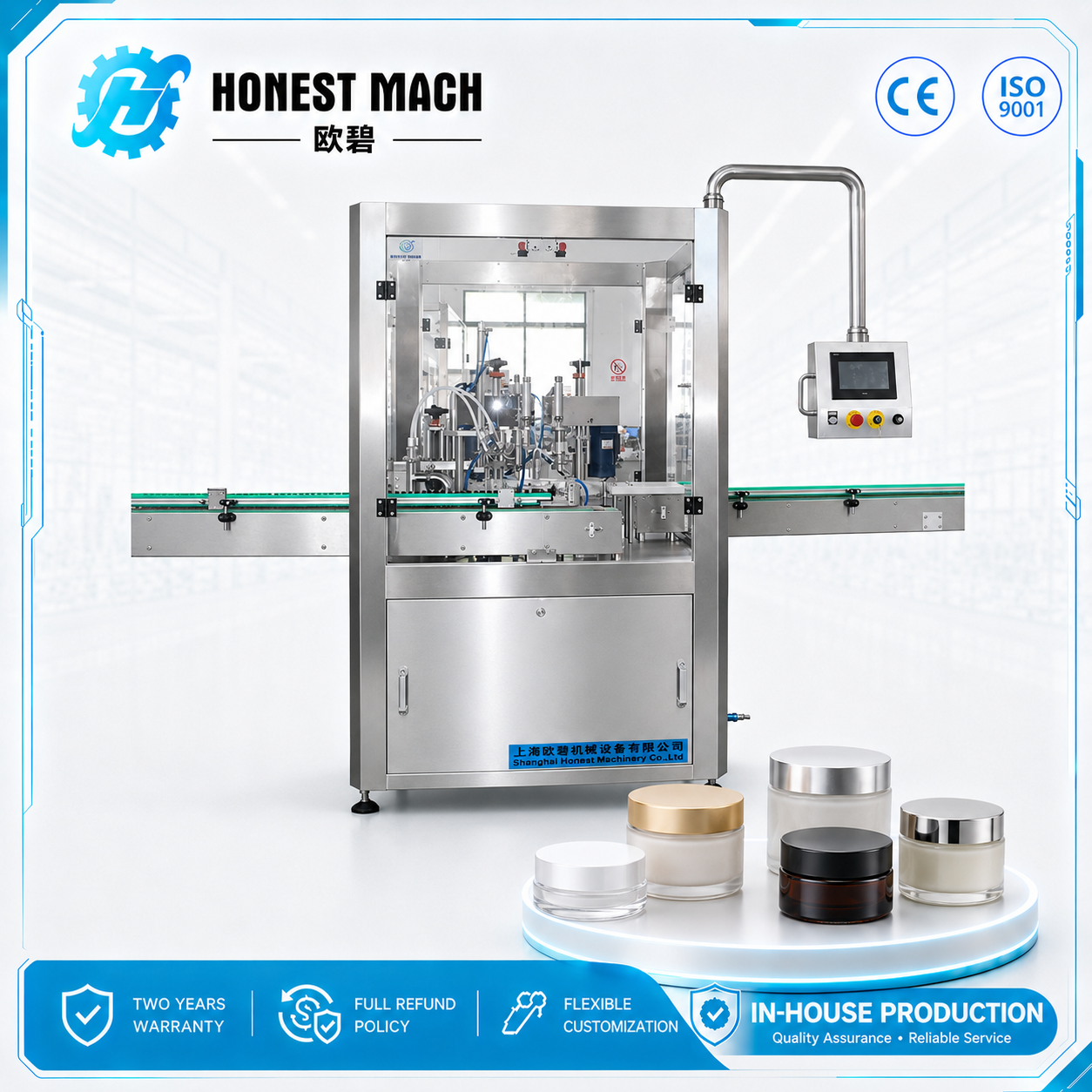

Automatic Face Cream Jar Filling Machine

Working video:

What we can offer you:

  • 100% Refund Policy

    If the quality is poor or it can’t run your product, we guarantee a 100% full refund for your peace of mind

  • Two years warranty

    Any equipment purchased from us comes with a two-year warranty.we provide free replacements and cover shipping for parts under 10kg damaged due to quality issues, not deliberate damage

  • Attentive after-sales service

    We promise: all equipment purchased from us is backed by comprehensive after-sales service and lifetime benefits.

  • Timely production and delivery

    We oversee the entire process from receiving samples to design and production, providing timely photos and videos to showcase the entire process to ensure the efficiency of equipment production and timely delivery

automatic-face-cream-jar-filling-machine

Parameter:

  • Model: Automatic face cream filling
  • Filling volume: 10-500ml(customized)
  • Filling nozzles: 1-4 nozzles for your optional(customized)
  • Filling speed: 10-60 jars per minute for your  optional(customized)
  • Filling method: Piston pump for filling with servo motor control
  • Filling accuracy: ±1%(according to product)
  • Capping rate: ≥99.99%
  • Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
  • Total dimension: 1830mm*1520mm*1950mm(customized)

Highlight:



1.It use piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).

2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use

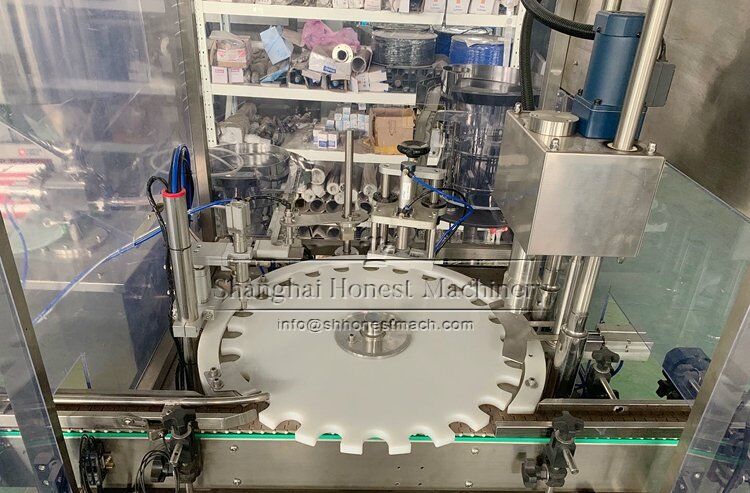

1.It can quickly change for different diameter jars

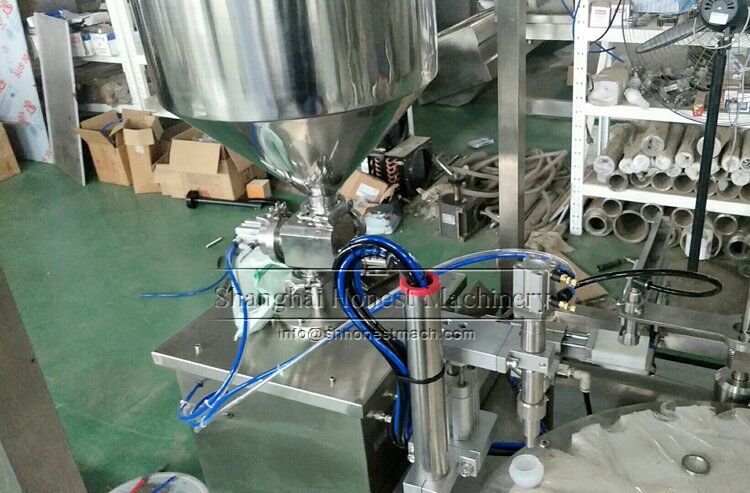

1.The hopper with mixer and it is double jacket with heating function and make it more easier to do filling for high viscosity products

2.Machine also comes with cleaning function that can do cleaning automatically after finish filling

The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use

Related Products:

contact_us_honest_machinery

Related Products:

FAQ:

Air bubbles are particularly important for premium cosmetic creams because the jar may look full immediately after filling but develop cavities or an uneven surface after the product settles.

For thick creams, the filling process can be optimized with controlled servo dosing, slower final-stage filling and suitable nozzle movement to reduce trapped air. For formulas that already contain air after emulsification or transfer, the problem may also need to be addressed upstream through deaeration or gentler product transfer rather than only changing the filling machine.

This is why actual cream samples should be tested before final machine acceptance. High-viscosity cosmetic filling specialists also identify bubble control and multi-stage filling as key factors in obtaining a stable finished appearance.

For face cream, filling accuracy alone is not enough. Customers can immediately see the surface of the product when the jar is opened, so the filling pattern must also produce a clean and consistent appearance.

The machine can optimize the nozzle height, filling speed, nozzle withdrawal timing and final cut-off stage according to the viscosity and jar diameter. For some creams, a slower final filling stage allows the product to settle more evenly and reduces peaks, holes or cream sticking around the jar rim.

This is especially valuable for premium skincare jars, where the visual appearance after filling is part of the product quality—not just the net quantity.

Yes, but premium cosmetic jars need different handling from ordinary rigid industrial containers.

Acrylic, glass and double-wall cosmetic jars can be sensitive to side pressure, impact and excessive capping torque. During machine design, the bottle guides, positioning structure and capping system should therefore be matched to the actual jar and cap rather than using excessive mechanical force.

For screw caps, torque should be controlled so the cap is secure without damaging the thread or decorative jar. If your packaging uses glossy acrylic, painted surfaces or metallized caps, we recommend sending actual production samples for testing because cosmetic appearance is as important as mechanical closure.

Your current product is specifically positioned for glass, plastic, acrylic and wide-mouth cosmetic jars, so this is an important project-design consideration.

Yes. Many face cream packages use more than one closure component, for example:

Jar → Cream Filling → Inner Disc / Protective Liner → Outer Screw Cap

If your jar uses an inner disc, protective cover or special sealing insert, an additional feeding and placement station can be designed before final capping.

The important point is that the inner disc diameter, thickness, orientation and fit inside the jar must be confirmed using actual samples. Thin cosmetic liners can be difficult to separate reliably if they stick together because of static electricity, while rigid inner discs may require precise positioning.

For this reason, the complete jar + inner disc + outer cap set should be supplied before the machine design is finalized.

For high-value skincare formulas, product remaining inside long pipes, pumps or filling cylinders can represent meaningful material loss at the end of every batch.

A better machine layout therefore tries to minimize unnecessary product-contact volume and uses shorter product paths, accessible filling parts and easy-to-clean connections where practical. Your current cream jar machine is already positioned with stainless-steel contact parts and an easy-clean design for cosmetic production. Shanghai Honest Machinery

If your factory frequently switches between expensive formulations—such as eye cream, anti-aging cream, whitening cream and gel moisturizer—it is worth telling the machine supplier the typical batch size before design. A line optimized only for maximum speed may not be the best choice if frequent small-batch changeovers cause excessive product loss.
