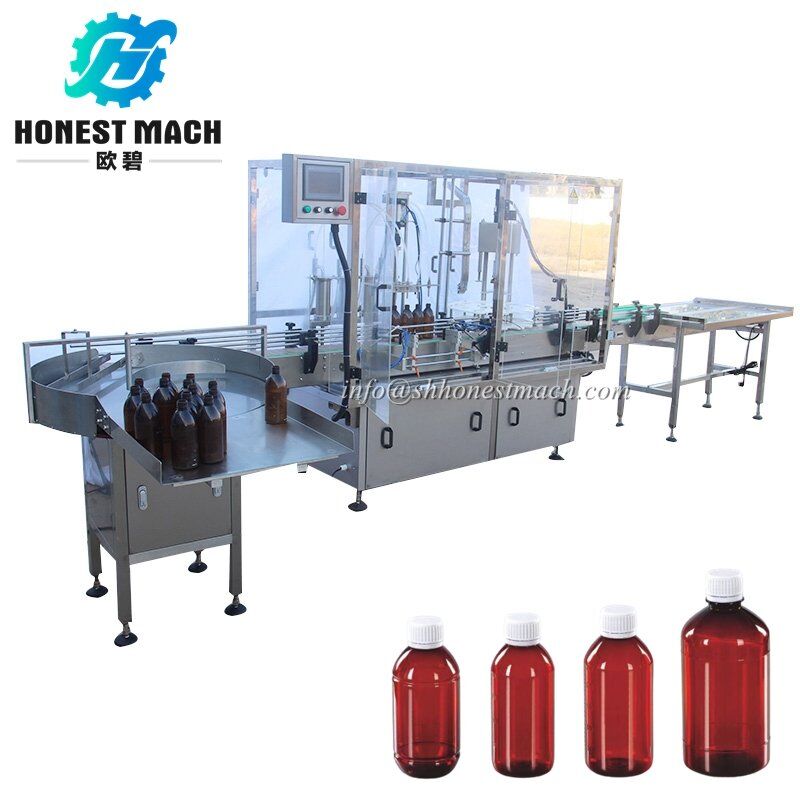

Automatic Syrup Bottle Filling Machine
This automatic syrup bottle filling machine is designed for accurate filling, capping and labeling of liquid syrup products in glass, PET and HDPE bottles. It is suitable for cough syrup, oral liquid, maple syrup, glucose syrup, honey syrup, food supplement syrup and other low to medium viscosity liquids.
Built with a servo piston filling system, anti-drip nozzles and PLC touch screen control, the machine helps reduce product waste, improve filling consistency and support clean production for food, pharmaceutical and healthcare packaging lines.
Key Features:
- Suitable for pharmaceutical syrup, food syrup, oral liquid and supplement syrup
- Works with round or shaped bottles, including glass bottles, PET bottles and plastic bottles
- Servo piston filling system for stable volume control
- Anti-drip filling nozzles to keep bottles and conveyor clean
- Optional bottle unscrambler, capping machine, labeling machine and coding system
- Customized filling heads, bottle size range and production capacity available

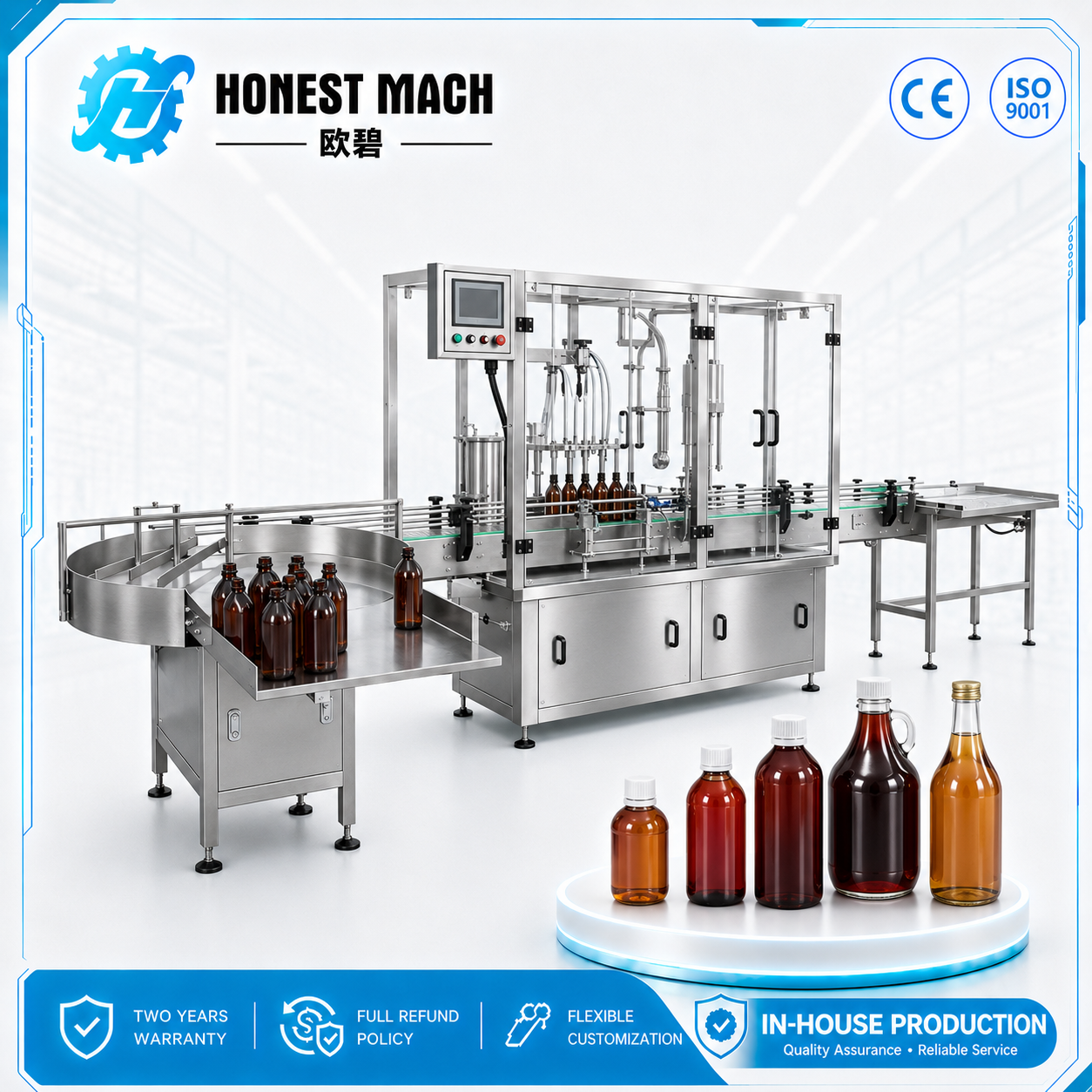

Automatic Linear Type Syrup Filling Machine Line
Working video:
What we can offer you:
-
100% Refund Policy
If the quality is poor or it can’t run your product, we guarantee a 100% full refund for your peace of mind
-
Two years warranty
Any equipment purchased from us comes with a two-year warranty.we provide free replacements and cover shipping for parts under 10kg damaged due to quality issues, not deliberate damage
-
Attentive after-sales service
We promise: all equipment purchased from us is backed by comprehensive after-sales service and lifetime benefits.
-
Timely production and delivery
We oversee the entire process from receiving samples to design and production, providing timely photos and videos to showcase the entire process to ensure the efficiency of equipment production and timely delivery
Parameter:
- Model: Automatic linear type syrup filling machine
- Filling volume: 50-2000ml(customized)
- Filling nozzles: 1-12 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 1870mm*1520mm*1980mm(customized)
Highlight:
1.It use piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).
2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter bottes
1.The hopper with mixer and it is double jacket with heating function and make it more easier to do filling for high viscosity products
2.Machine also comes with cleaning function that can do cleaning automatically after finish filling
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get from our linear type syrup filling machine:
Related Products:
FAQ:
Syrup viscosity can change with temperature, formulation and production time, especially for herbal syrups or products with higher sugar content. This may affect flow speed and nozzle cut-off even when the target volume stays the same.
For this reason, our machine uses servo-controlled piston filling so the filling stroke and speed can be adjusted more precisely for different products. If your syrup becomes significantly thicker at lower temperatures, a heated hopper can also be added to help maintain more stable flow conditions.
For FAT, it is best to test the machine under the actual production temperature range rather than only using a room-temperature sample.
Yes, but the machine configuration should be selected according to the real product behavior.
Some syrups with high sugar content, herbal extracts or concentrated formulas may become sticky or form deposits if they remain in the pipeline for too long. For these applications, we can optimize the product path, nozzle size and filling speed, and the machine can also be equipped with a double-jacket hopper with heating and mixing to help maintain better product flow.
If crystallization is a known issue, it is useful to provide the actual formula behavior, operating temperature and cleaning method before machine production.
This is a common issue with thick syrup.
When the nozzle closes, viscous syrup may form a thin string between the nozzle and bottle, which can contaminate the bottle neck and affect capping or labeling.
To reduce this, the machine can use controlled servo filling, suitable nozzle shut-off design and optimized filling speed. For especially sticky syrup, the final filling stage can be slowed down so the product flow stops more cleanly.
This is one of the main reasons we recommend testing with the customer’s real syrup rather than only using water during factory testing. Industry guidance for syrup filling also highlights anti-drip or shut-off nozzle design as important for viscous syrup products. Neostarpack Co., Ltd.
For herbal syrup or nutraceutical liquid that contains fine suspended ingredients, simple filling may not be enough. If the product settles during production, the concentration at the beginning and end of the batch may become inconsistent.
For this type of product, we can use a hopper with controlled mixing to keep the formula more uniform before filling. The mixing speed should be selected carefully, because overly aggressive agitation may introduce air or foam.
If your product contains suspended herbal particles, we recommend sending the actual sample and particle information in advance so the nozzle diameter, valve structure and mixing method can be selected properly.
When one line fills several products, cleaning is important not only for hygiene but also for avoiding flavor carryover, color contamination or cross-product residue.
Your machine can be configured with an automatic cleaning function after filling, which makes changeover easier between different syrup products.
For food syrup, cleaning may mainly focus on sugar residue and flavor carryover. For pharmaceutical or healthcare syrup, the required cleaning procedure may be stricter and should follow the customer’s internal production standard.
If several formulas are produced frequently, we recommend confirming the changeover frequency and cleaning requirement before machine design so the product-contact system can be kept as practical and easy to clean as possible.
