Perfume Filling Machine
Automatic filling, crimping and labeling solution for perfume spray bottles, fragrance samples and cosmetic liquids.
This perfume filling machine is designed for small-volume fragrance production, including perfume spray bottles, sample vials, body mist bottles, air freshener bottles and other cosmetic liquid containers. It can be configured as a single filling machine or a complete perfume filling capping labeling line according to your bottle size, cap type and production capacity.
Key Features:
- Made for Perfume & Fragrance Bottles
Suitable for small perfume bottles, spray pump bottles, sample vials and cosmetic liquid bottles. - Customizable for Your Bottle Type
Filling heads, cap structure, crimping head, conveyor layout and labeling system can be customized based on your real samples. - Cleaner Production & Less Manual Labor
Helps reduce hand contact, improve packaging consistency and support small to medium perfume production lines.
Available as: single perfume filler, perfume filling capping machine, perfume filling capping labeling line, or complete perfume packaging machine.

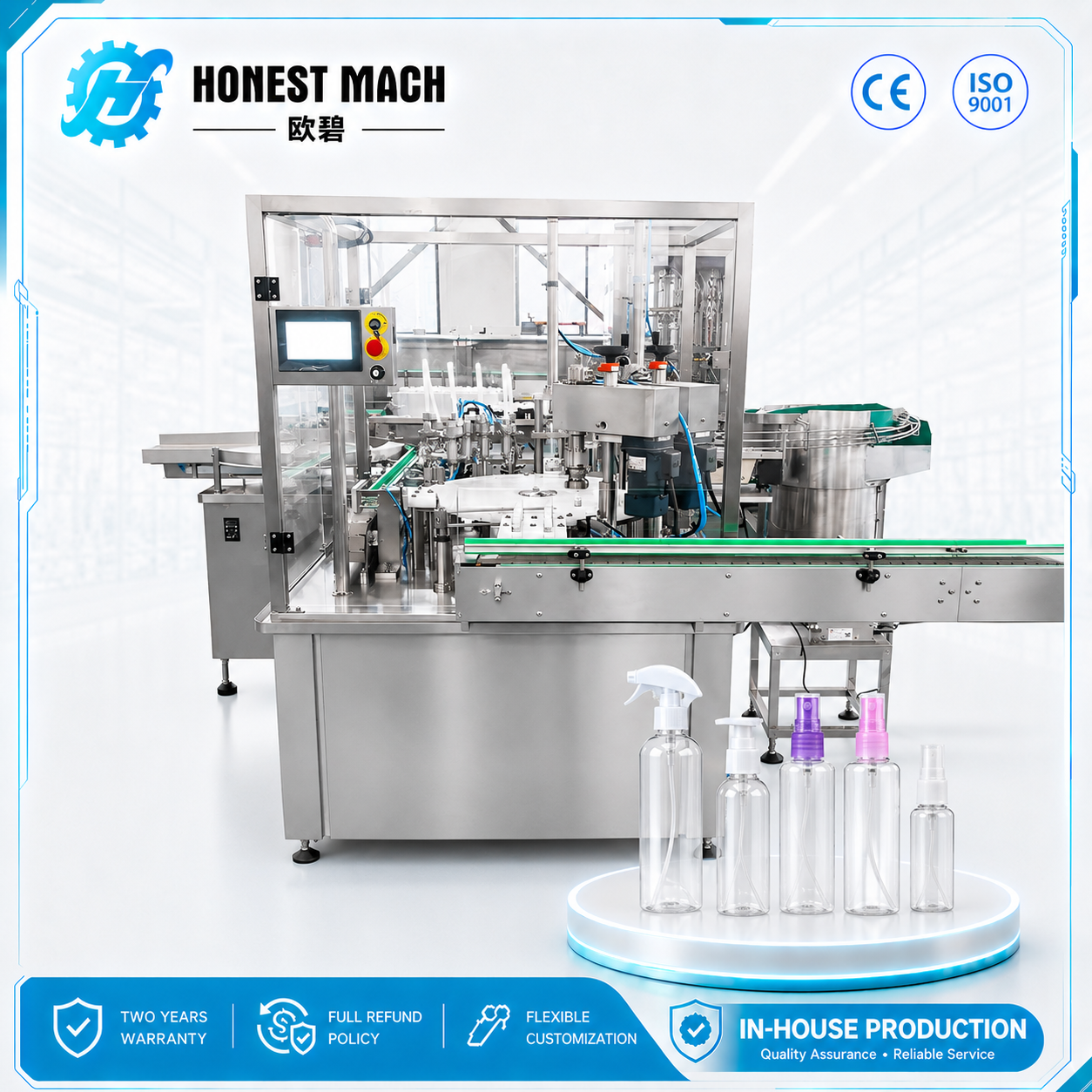

Automatic Perfume Bottle Filling Machine Line
Working video:
What we can offer you?
Parameter:
- Model: Automatic perfume filling machine
- Filling volume: 5-120ml(customized)
- Filling nozzles: 1-4 nozzles for your optional(customized)
- Filling speed: 10-80BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±0.5%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:
1.Adopt piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity). With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter bottles within 30 minutes
The machine use servo control to automatically adjust the filling volume, making it convenient for customer operation
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What You Get With Our Spray Bottle Perfume Filling Machine
Related Products:
FAQ:
A servo volumetric filling system is suitable when the priority is dispensing a defined volume into different bottle formats. Vacuum filling is often preferred for rigid glass perfume bottles when a visually consistent liquid level is more important than identical internal bottle volume. The correct system depends on the bottle material, neck design and cosmetic appearance requirements.
Yes. The filling heads, spray-pump handling system, capping structure and crimping head can be customized according to the actual closure. Customers should provide bottle, pump, collar and cap samples because small dimensional differences can affect pump insertion and crimping quality.
It depends on the fragrance’s alcohol content, flash point, production volume and local hazardous-area regulations. For high-alcohol perfume or factories operating under specific safety standards, an explosion-proof configuration, grounding and suitable vapor control may be required. Certification requirements should be confirmed before the machine is designed.
The current product configuration supports a customizable filling range of 5–120 ml, approximately 10–80 bottles per minute and filling accuracy of about ±0.5%. Final performance depends on bottle shape, filling volume, liquid behavior, spray-pump assembly and the number of filling heads.
Factory acceptance testing should verify filling accuracy, liquid level or volume consistency, dripping, bottle transport, spray-pump insertion, crimping or capping quality and label position. Testing should use the customer’s actual bottle, pump, cap and representative fragrance whenever shipping regulations and sample availability allow.
