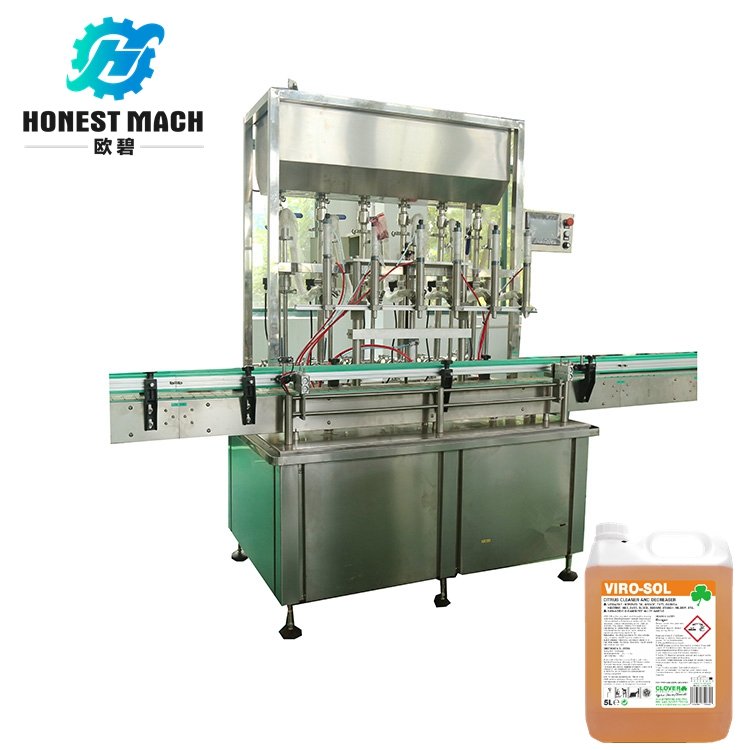

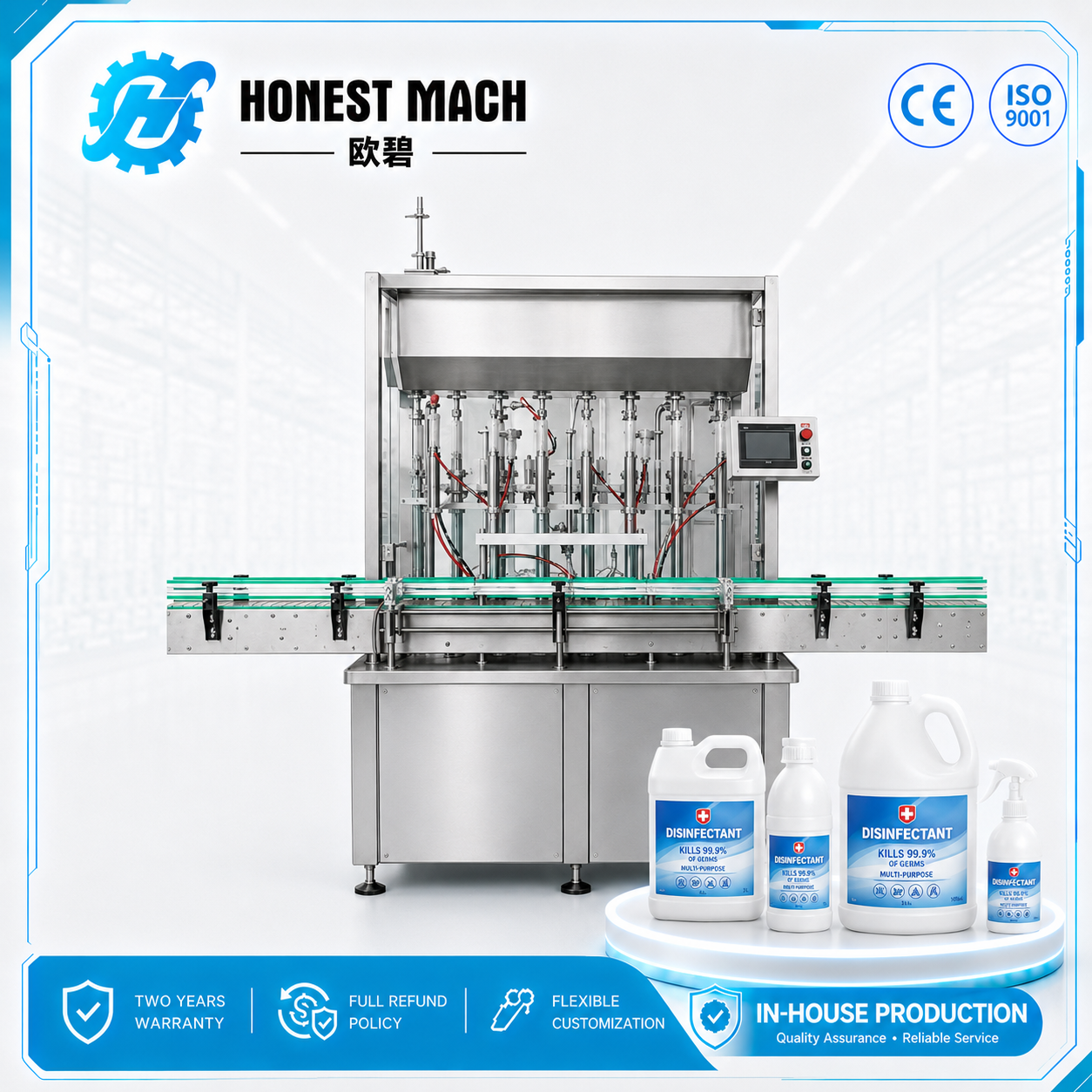

Automatic disinfectant filling machine

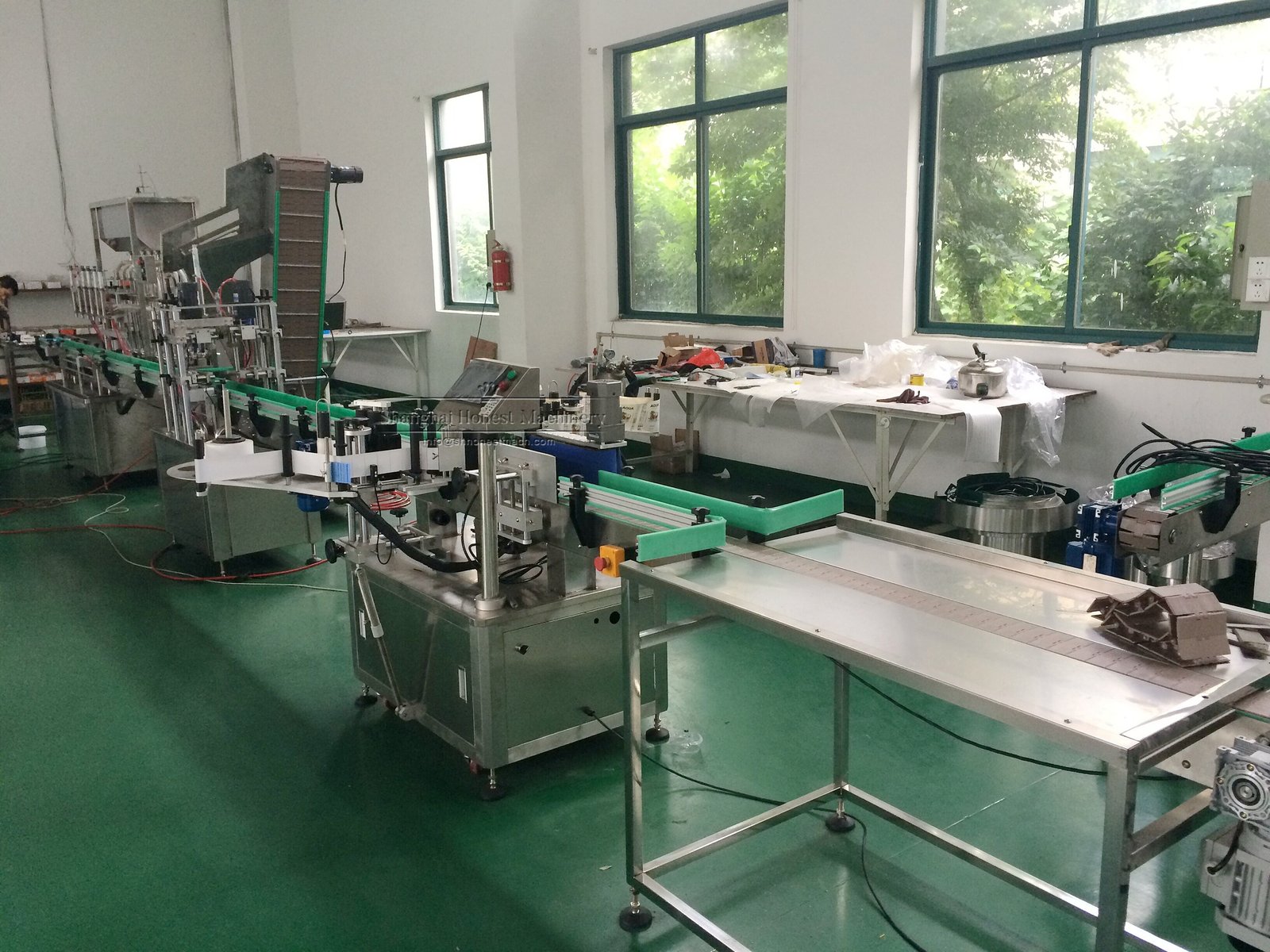

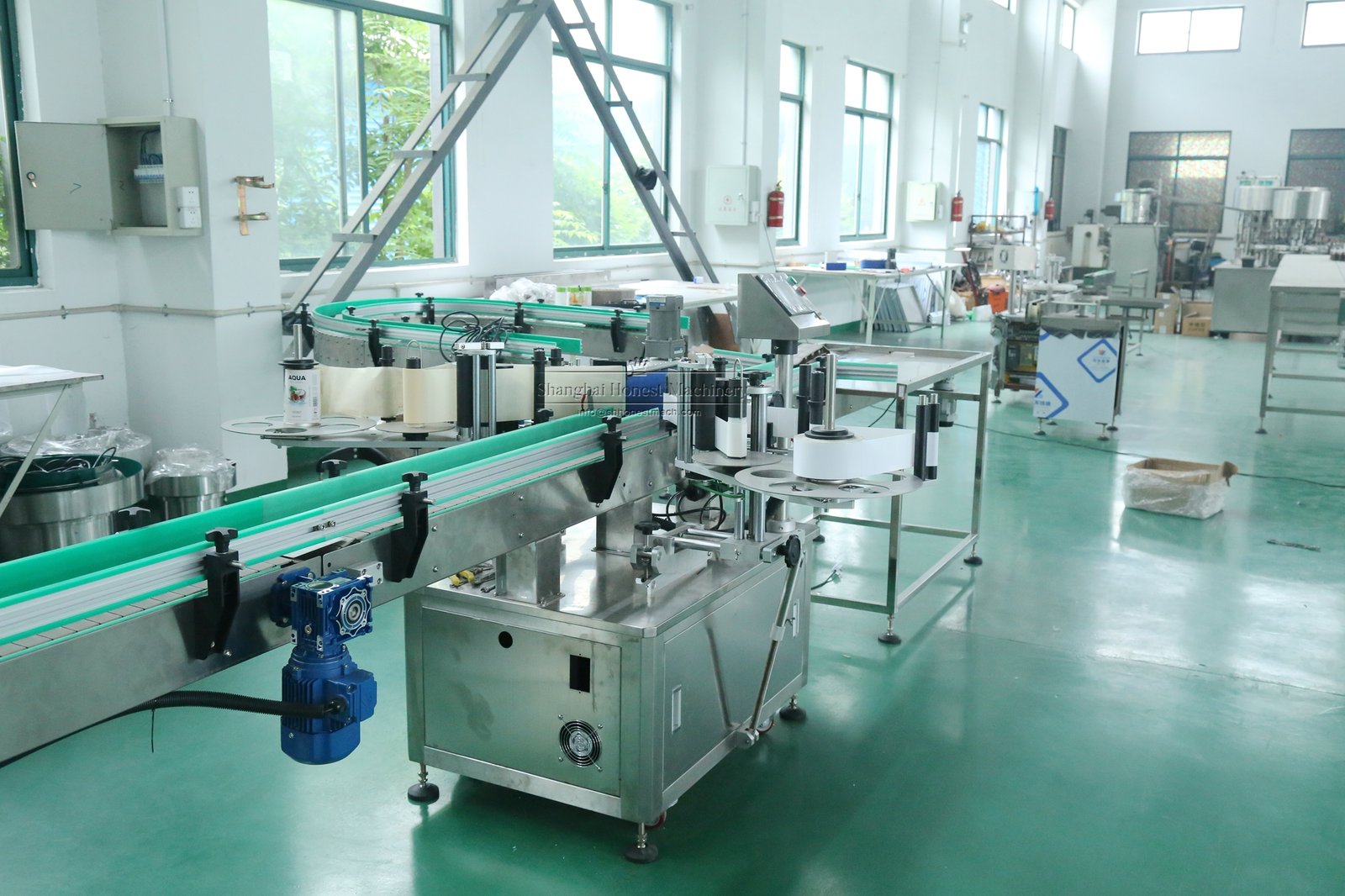

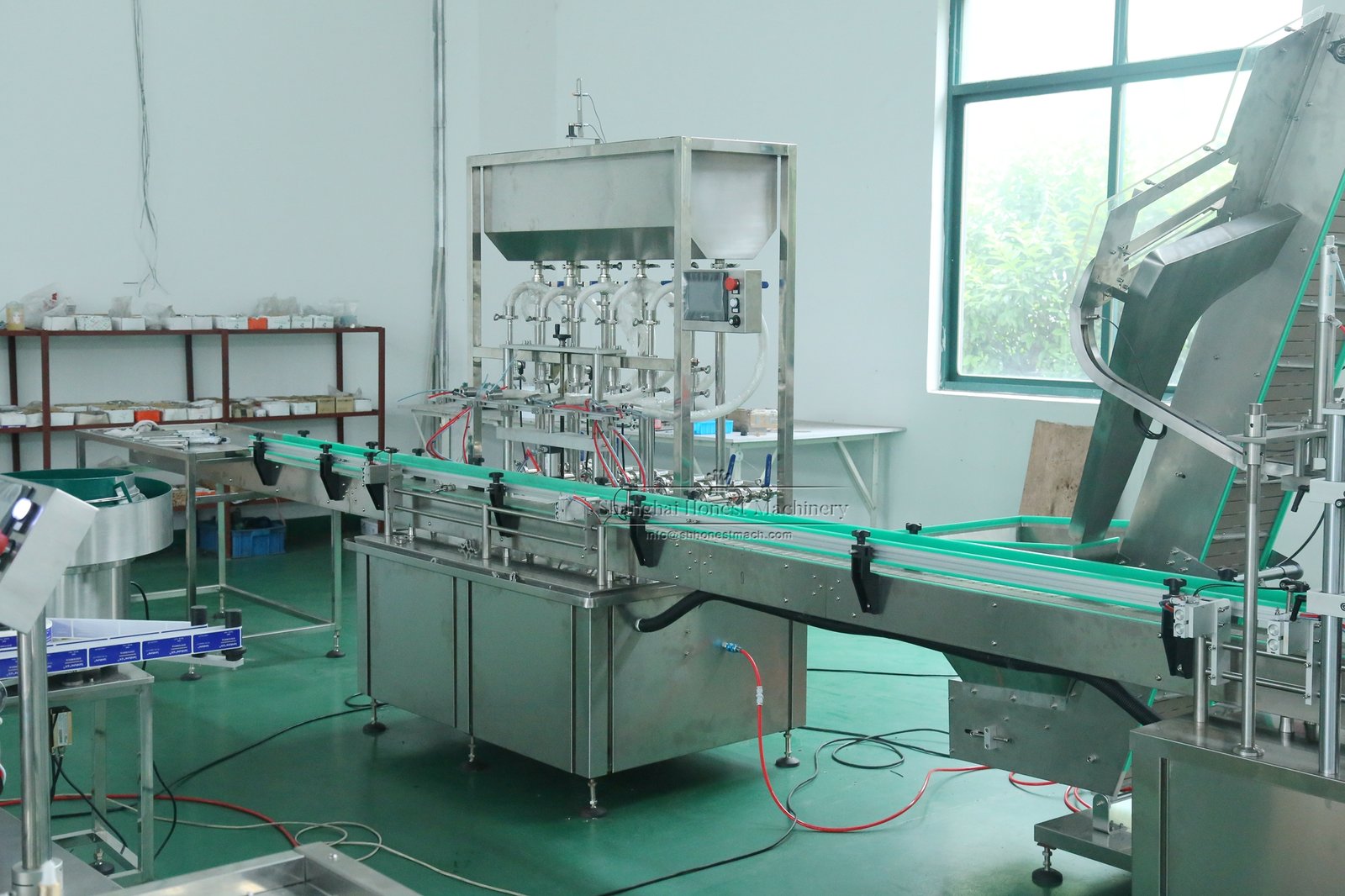

Inline filling, capping and labeling solution for disinfectant, sanitizer, alcohol liquid, bleach, cleaning liquid and household chemical products.
Our automatic disinfectant filling machine is designed for filling disinfectant liquid, sanitizer, alcohol-based solution, surface cleaner, bleach, floor cleaner, toilet cleaner and other household or industrial chemical products into 0.5L, 1L, 2L, 3L and 5L plastic bottles or jugs.
For corrosive liquids such as bleach or strong cleaning solutions, the filling nozzles, pipelines, sealing parts and liquid contact materials can be customized for better chemical compatibility. For alcohol-based disinfectant, explosion-proof electrical configuration can be added according to your production safety requirements.
Key Features:
- Suitable for disinfectant and cleaning liquids such as sanitizer, alcohol liquid, bleach, surface cleaner, floor cleaner and household chemicals.
- Custom filling system with flow meter, gravity or piston filling according to liquid viscosity and accuracy requirements.
- Optional chemical-resistant or explosion-proof design for corrosive liquid, bleach or alcohol-based disinfectant products.
Tell us your disinfectant formula, bottle size, cap type and target capacity. We will recommend a suitable disinfectant filling and bottling solution for your production.
Working video:
What we can offer you?
-
100% Refund Policy
If the quality is poor or it can’t run your product, we guarantee a 100% full refund for your peace of mind
-
Two years warranty
Any equipment purchased from us comes with a two-year warranty.we provide free replacements and cover shipping for parts under 10kg damaged due to quality issues, not deliberate damage
-
Attentive after-sales service
We promise: all equipment purchased from us is backed by comprehensive after-sales service and lifetime benefits.
-
Timely production and delivery
We oversee the entire process from receiving samples to design and production, providing timely photos and videos to showcase the entire process to ensure the efficiency of equipment production and timely delivery
Parameter:
- Model: Automatic disinfectant filling machine
- Filling volume: 50-5000ml(customized)
- Filling nozzles: 1-16 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:
1. Integration with automated systems allows precise monitoring and increased efficiency
1.It can quickly change for different diameter bottles
1.Machine comes with cleaning function that can do cleaning automatically after finish filling
2.No bottle no filling and no cap no capping
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our automatic disinfectant filling machine:
Related Products:
FAQ:
Yes. The machine can be customized for a wide range of disinfectant and hygiene liquids, including alcohol-based sanitizer, non-foaming or foaming disinfectant, household cleaning liquid, and other water-thin chemical solutions.
Before production, we normally confirm the product formula, viscosity, corrosiveness and filling temperature, then match the proper contact materials, seals, hose type and nozzle structure. For aggressive or sensitive liquids, we can also recommend corrosion-resistant parts to improve long-term stability and safety.

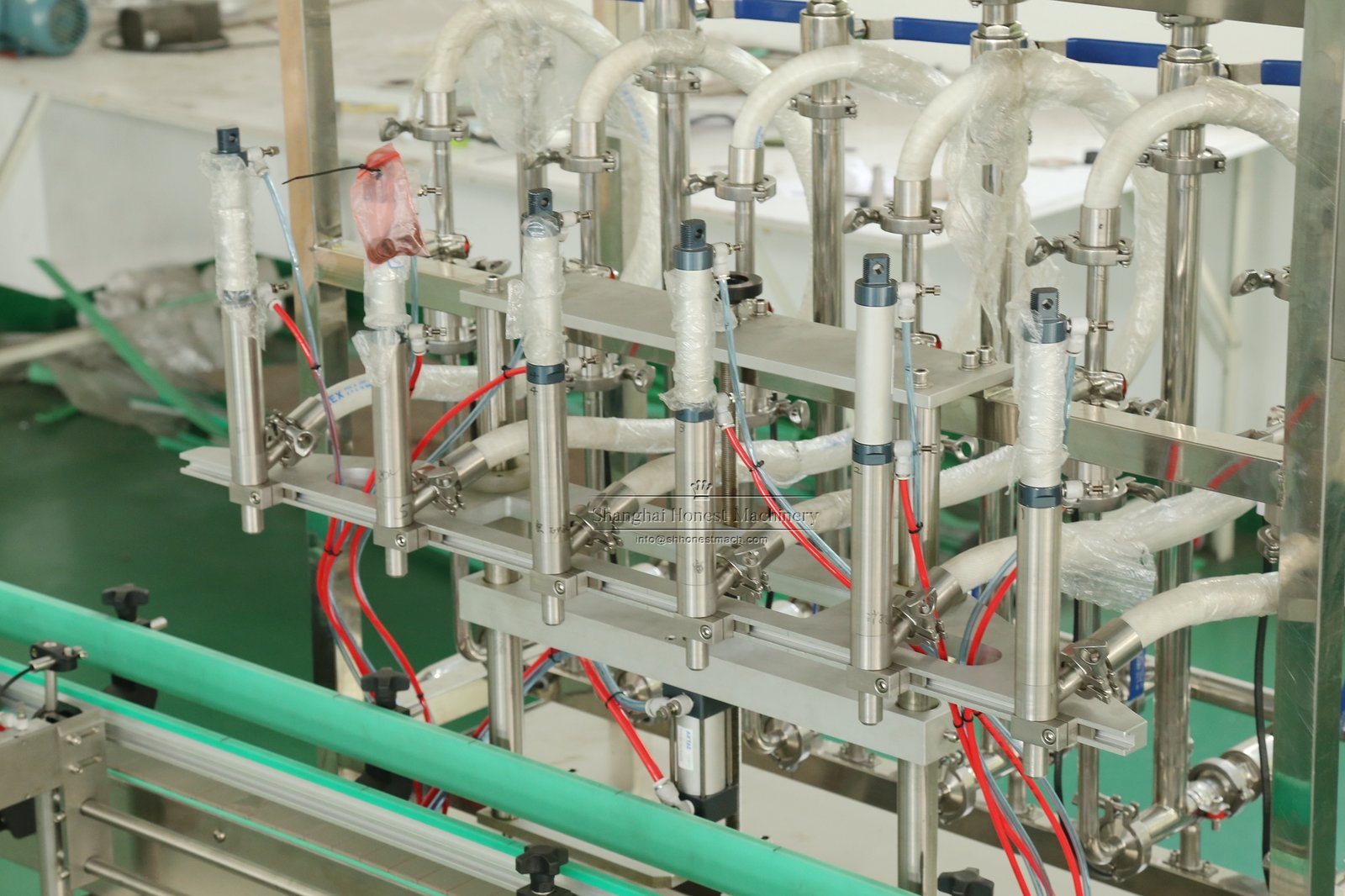

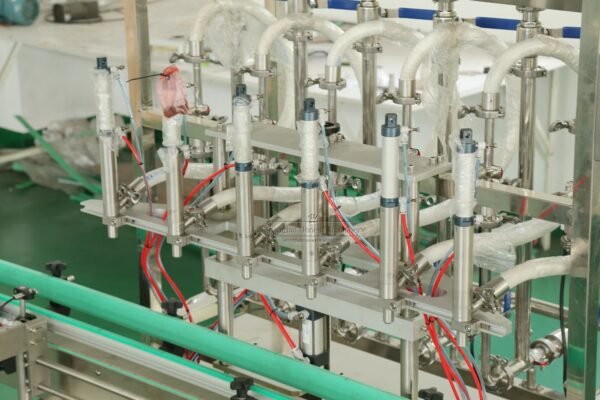

Disinfectant liquids often require clean filling, especially for low-viscosity or foam-prone products. Our machine can be equipped with anti-drip filling nozzles, diving nozzles and suitable filling control to reduce splashing and foam during the filling process.
For sanitizer, cleaning liquid or disinfectant that foams easily, we adjust the filling speed, nozzle position and tank structure according to the product characteristics. This helps keep the bottle mouth clean, reduces waste and improves the final packaging appearance.

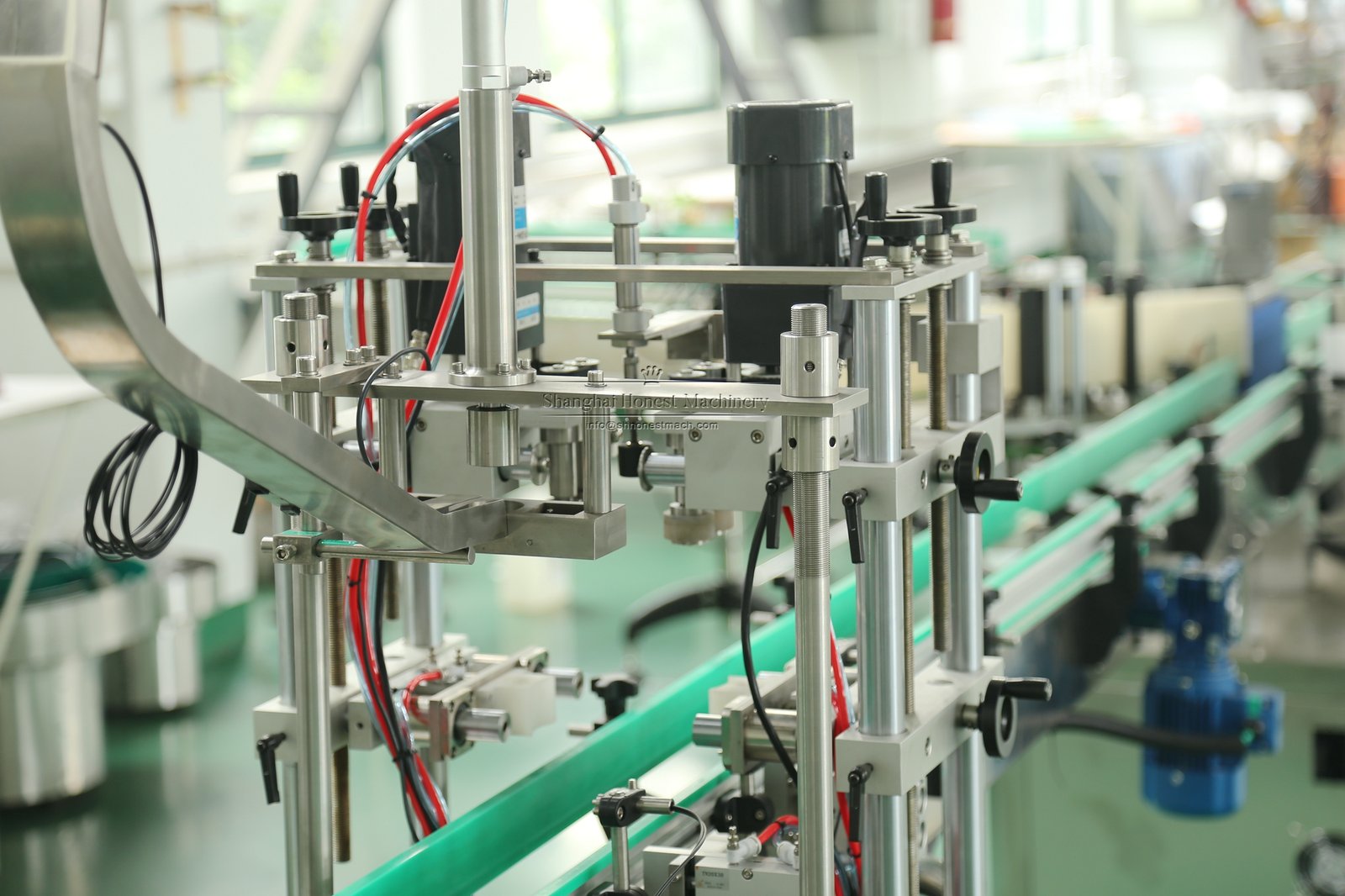

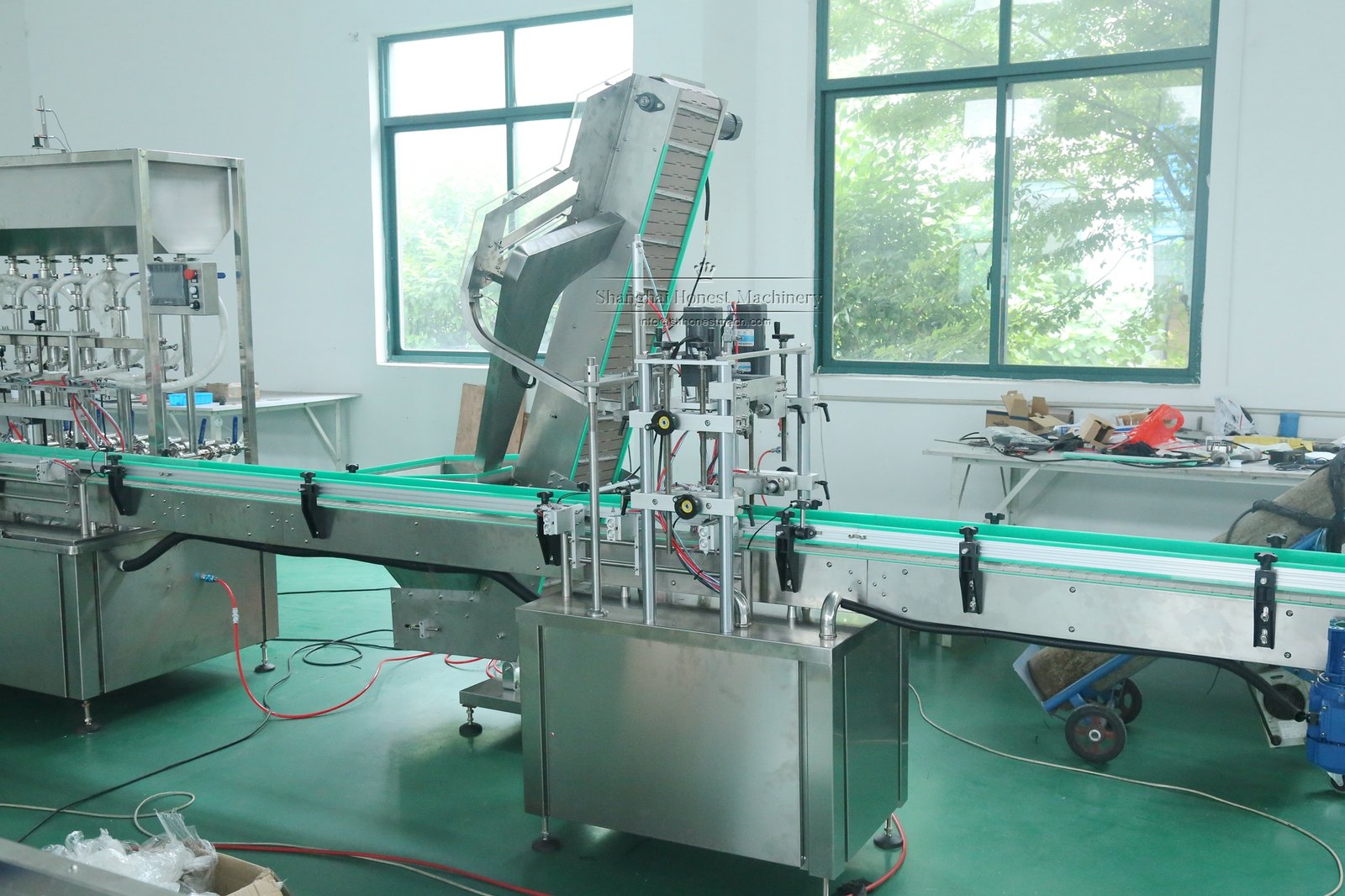

Yes. The line can be designed for round, square, flat and shaped plastic bottles, and it can also be matched with different closure systems such as screw caps, flip caps, pump caps, trigger sprayers or other custom caps.
If you need one line for several bottle sizes, we can design the conveyor, bottle guiding parts and capping section for easier changeover. The final solution depends on the bottle dimensions, cap type and output requirement, so it is best to confirm all sample containers before production.
Yes, if your product contains high alcohol content or requires extra safety protection, explosion-proof configuration can be considered. This is especially important for sanitizer products used in markets with stricter electrical and workshop safety requirements.
We can evaluate whether explosion-proof motors, electrical components or other safety measures are needed based on your product formula and factory environment. If you are filling alcohol sanitizer, please share the concentration and local compliance requirement in advance so the machine can be configured more appropriately.
The best way is to provide your product details and sample bottles/caps before final production. Once we receive the necessary information, we can evaluate the filling material, bottle type, closure type, target speed and packaging workflow more accurately.
Before shipment, we usually test the machine with the customer’s samples or confirmed specifications to make sure the filling effect, capping result and line operation meet the project requirement. This reduces risk for the buyer and helps ensure the machine fits the actual production need.
