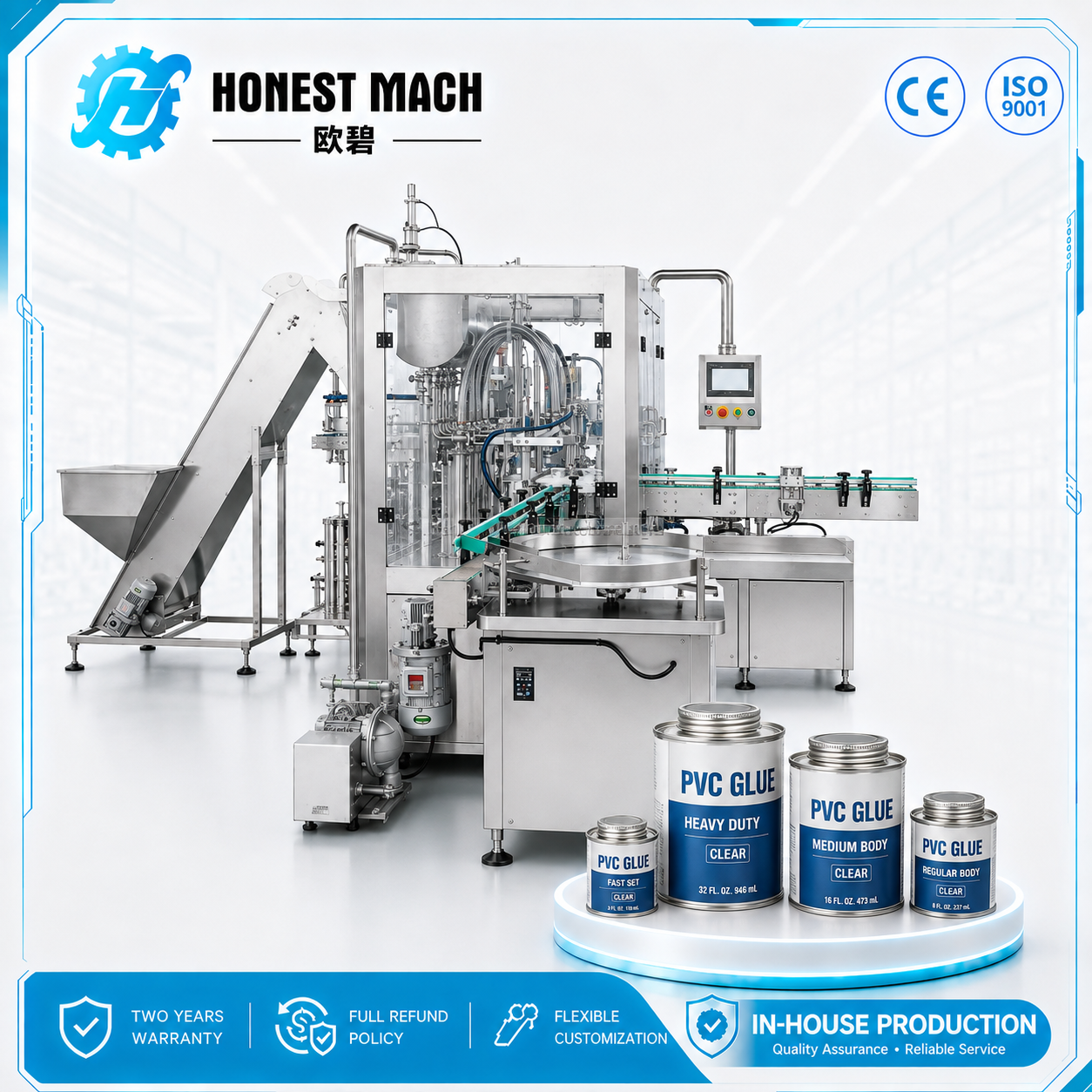

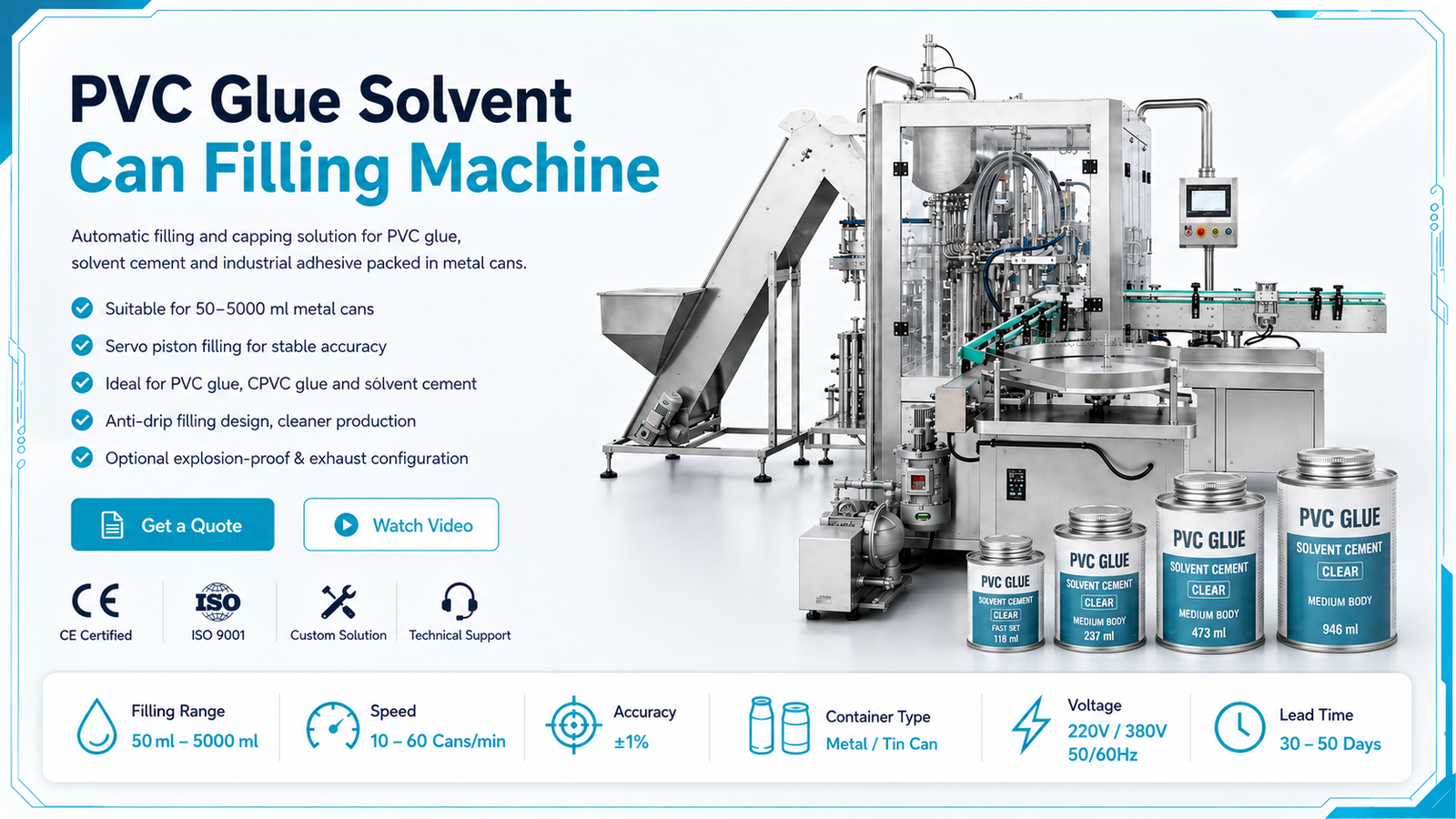

PVC glue solvent can filling machine

Solvent evaporation is a more important issue for PVC cement than for ordinary water-based glue because product exposure can gradually change viscosity and filling behavior.

For this reason, the filling system should minimize unnecessary product exposure by using an appropriately enclosed product path, controlled filling nozzles and suitable tank or pipeline design. Our machine can also use sealed filling and anti-drip configurations to help reduce leakage and solvent loss during continuous production.

For long production runs, we recommend testing with the customer’s actual formulation because solvent content, workshop temperature and production cycle can all influence how the product behaves during filling.

Yes, provided that the filling system is configured around the full viscosity range of the products.

Regular-body, medium-body and heavy-body solvent cements do not behave identically during suction, dispensing and nozzle shut-off. A machine that performs well with a low-viscosity formula may need different servo parameters, piston speed or nozzle configuration when handling a heavier formulation.

PVC cement manufacturers themselves distinguish products partly by viscosity and intended application.

Our machine uses servo-controlled piston filling and can be customized according to material viscosity. For customers producing several grades, we recommend sending samples of the lowest- and highest-viscosity formulas so the machine can be tested for the complete production range.

The product-contact material should be selected according to the actual solvent formulation rather than assuming one standard seal or hose is suitable for every PVC cement.

Before finalizing the machine, it is useful to provide the SDS, solvent composition or chemical compatibility requirements for the product. Based on this information, the filling valves, hoses, seals and other wetted components can be selected for better chemical resistance.

This is particularly important if the same factory produces PVC cement, CPVC cement, primer, contact adhesive or other solvent-based products, because their chemical compositions may differ significantly.

The goal is not only to prevent premature seal failure, but also to reduce swelling, leakage and maintenance problems after long-term production.

The decision should be based on the actual product and factory environment rather than simply labeling every glue machine as “explosion-proof.”

We normally recommend confirming:

• product SDS,
• solvent composition,
• flash point,
• expected vapor concentration,
• workshop ventilation,
• local hazardous-area classification,
• and local electrical safety requirements.

For flammable liquids, OSHA requires precautions against ignition sources and, in applicable dispensing operations, electrical interconnection/bonding between the filling nozzle and container; hazardous areas may also require appropriately classified electrical equipment. Adequate ventilation and ignition-source control are also core considerations when flammable vapors may be present.

Our PVC solvent cement machine can therefore be configured with exhaust, grounding and explosion-proof options when the project requires them.

Yes, but this closure needs to be confirmed during machine design because a PVC cement lid with an attached dauber or brush is different from a standard flat screw cap.

The applicator extends downward into the can, so the cap feeding and placement system must consider:

• lid diameter,
• thread or closure structure,
• dauber stem length,
• brush or applicator size,
• can opening diameter,
• and required capping torque or pressing method.

A standard cap feeder designed for ordinary flat caps may not reliably handle this type of closure.

For these projects, we strongly recommend sending the actual metal can + cap + dauber/brush assembly before production. We can then test automatic cap feeding, insertion and final capping together with the filling process instead of validating each station separately.
