Protein powder filling machine

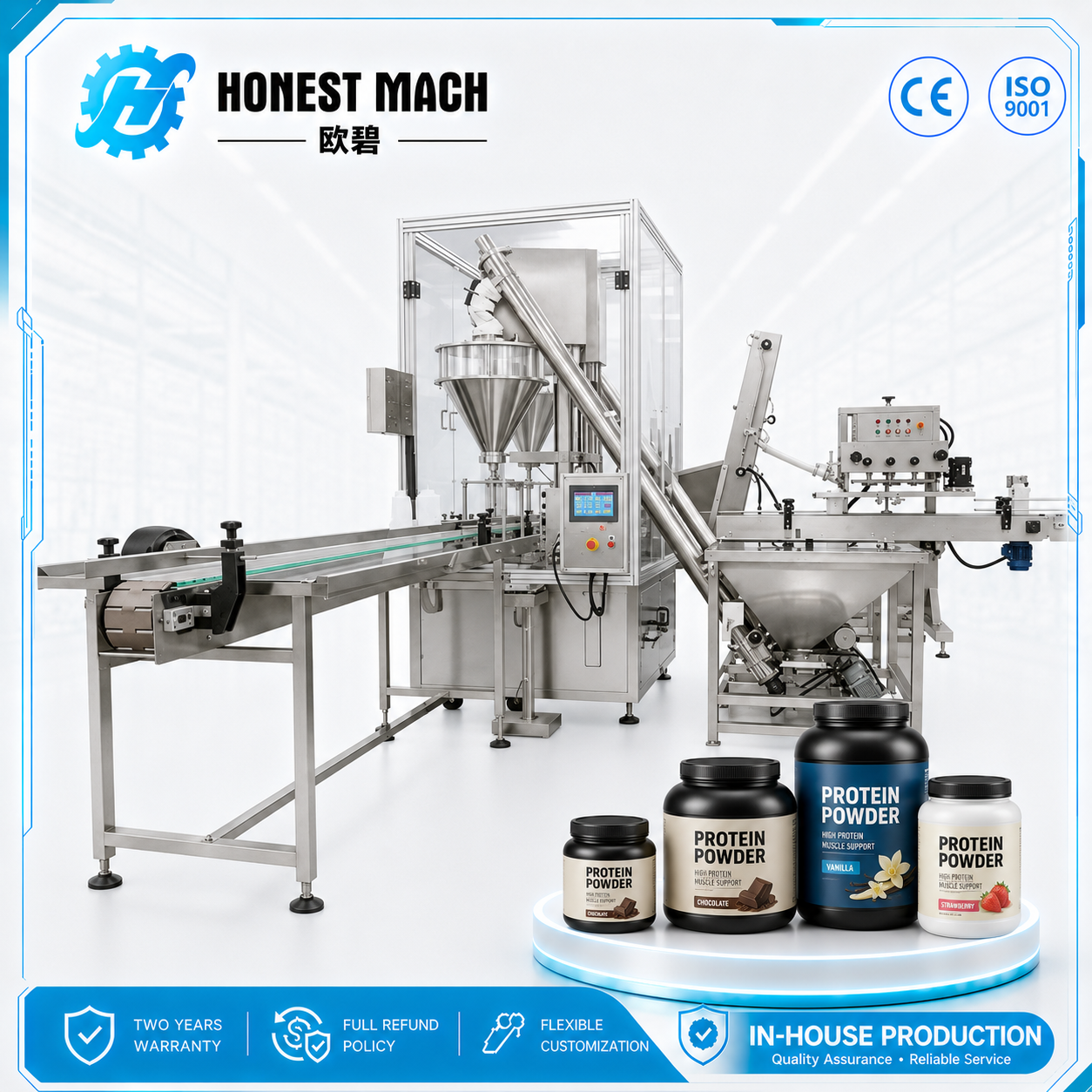

Protein Powder Filling Machine for Jars and Cans
This protein powder filling machine is designed for accurate filling and packaging of protein powder, whey protein, collagen powder, nutrition powder, milk powder, meal replacement powder, coffee powder and other food supplement powders into jars, bottles, cans and plastic containers.
The machine uses an auger filling system with servo motor control to help achieve stable filling weight and reduce powder waste during continuous production. According to your powder flowability, target filling weight, container size and production capacity, the machine can be customized with an agitator, anti-bridging hopper, weighing feedback, dust collection system and different filling nozzles.
Key Advantages:
- Servo-controlled auger filling helps maintain stable filling weight for protein powder, nutrition powder and fine powder products.
- Suitable for plastic jars, PET cans, bottles, round cans and customized supplement containers.
- Dust collection, bottle lifting and neck positioning options help reduce powder residue around the jar mouth before capping or foil sealing.
- Optional agitator and anti-bridging hopper help reduce powder caking, blocking and unstable feeding.
- Optional desiccant inserter, induction foil sealing and nitrogen flushing can be added for protein powder brands that need better moisture protection.
Working video:
What we can offer you?
Parameter:
- Model: Automatic protein powder jar filling machine
- Filling volume: 10-5000g(customized)
- Filling nozzles: 1-12 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Auger for filling
- Filling accuracy: 10-100g≤±1%,100-1000g≤±0.8%(according to product and weight)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2130mm*1480mm*2050mm(customized)
Highlight:
1.Machine adopt auger to measure and fill powder and granular,with high fling speed and filling accuracy. the auger is driven by servo motor.
1.It can quickly change for different diameter bottles
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our protein powder filling machine
Related Products:
FAQ:
Yes. This machine is specifically designed for a wide range of food supplement powders, including protein powder, whey protein, collagen powder, nutrition powder, meal replacement powder, milk powder and even coffee powder. Because different powders have different bulk density, flowability and dust behavior, the machine can be customized with an agitator, anti-bridging hopper and different auger setups to match your product characteristics and help maintain stable filling performance.
This is one of the most important issues for protein powder packaging. Excess powder on the container mouth can affect cap tightening, foil sealing quality and shelf appearance. For this reason, the machine can be equipped with dust collection, bottle lifting and neck-positioning functions, which help reduce powder residue around the jar opening before the next packaging step. This is especially useful for fine and light powders that tend to float during filling.
Yes, and this is a very practical option for supplement brands. The official product page specifically notes that optional desiccant inserters, induction foil sealing and nitrogen flushing can be added. These functions are valuable when you need better moisture protection, improved product freshness and stronger retail packaging performance, especially for protein powder products that are sensitive to humidity and long storage cycles.
The machine is listed with a filling range of 10–5000 g, and the filling accuracy is shown as ±1% for 10–100 g and ±0.8% for 100–1000 g, depending on the powder and target weight. In real projects, actual accuracy will still depend on powder flowability, particle size, density variation and container stability. For protein powder packaging, it is best to confirm your target fill weight, powder sample and container size before final configuration so the auger system can be tuned properly.
Yes. This machine is suitable for plastic jars, PET cans, bottles, round cans and other customized supplement containers. It is a good option for brands that sell multiple SKUs, such as 250 g trial packs, 500 g retail jars and 1 kg or 2 kg larger containers. The product page also highlights quick adjustment for different bottle sizes, so if your product line includes several container diameters or heights, the machine can be configured to support faster changeover and more flexible production planning.
