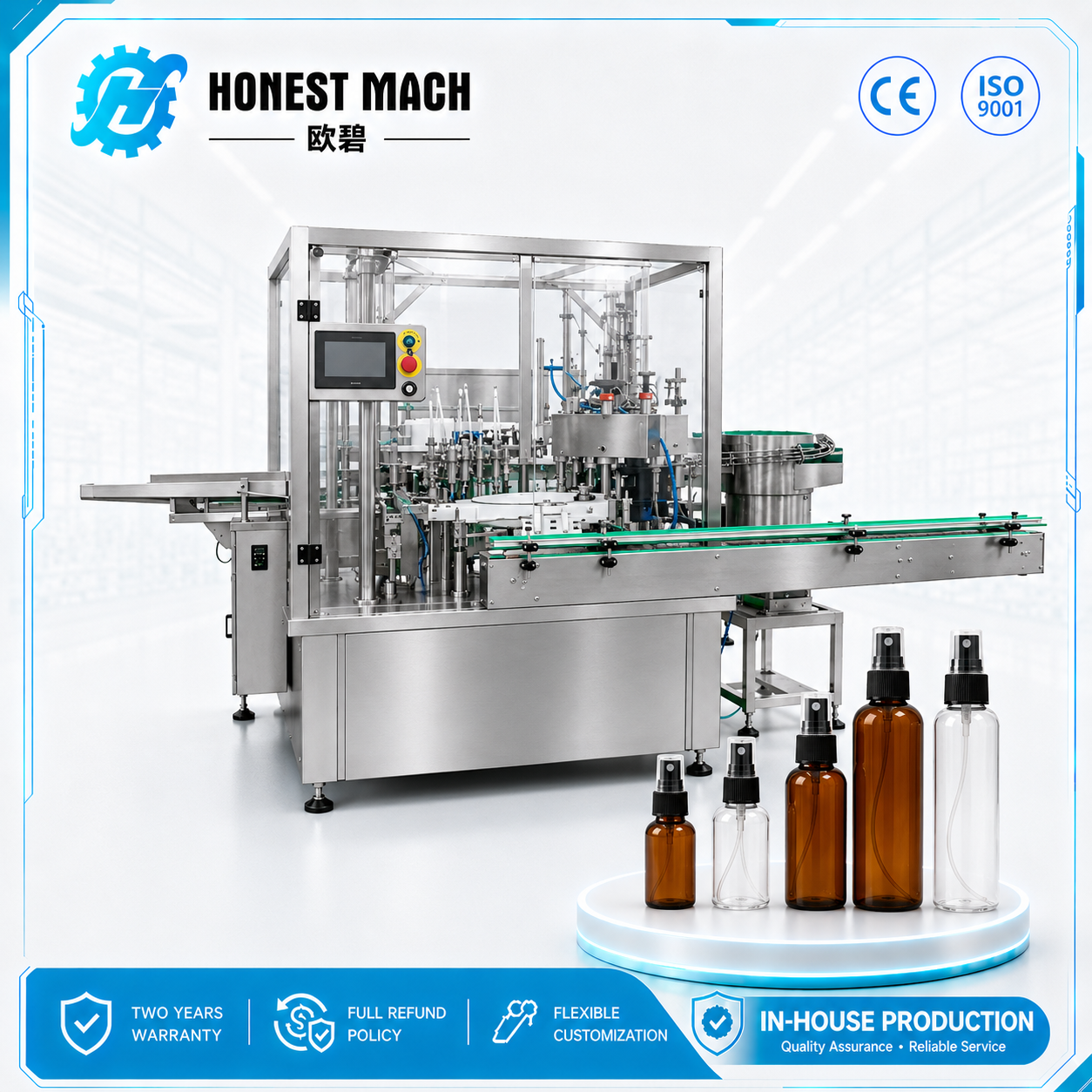

Spray Bottle Vacuum Filling Machine
Perfume Vacuum Filling Machine
Automatic vacuum filling and spray pump capping solution for perfume, fragrance, cologne and small cosmetic bottles.
This perfume vacuum filling machine is built for low-viscosity, alcohol-based fragrance products. It helps achieve a clean, consistent liquid level in glass perfume bottles, spray bottles, sample vials and nail polish bottles, improving the final bottle appearance while reducing dripping, bubbles and product waste.
Key Advantages:
- Consistent Bottle Appearance: Vacuum filling helps keep perfume bottles at the same visible fill level, even when bottle volume or shape has small differences.
- Clean Filling for Volatile Liquids: Anti-drip nozzles and closed filling design help reduce leakage, bubbles and product waste during fragrance filling.
- Flexible Bottle Compatibility: Suitable for perfume spray bottles, cologne bottles, glass vials, nail polish bottles, essential oil bottles and other small cosmetic containers.
Recommended for: perfume filling, fragrance bottling, spray bottle filling, perfume bottle capping, perfume crimping, cosmetic liquid filling and small bottle packaging projects.

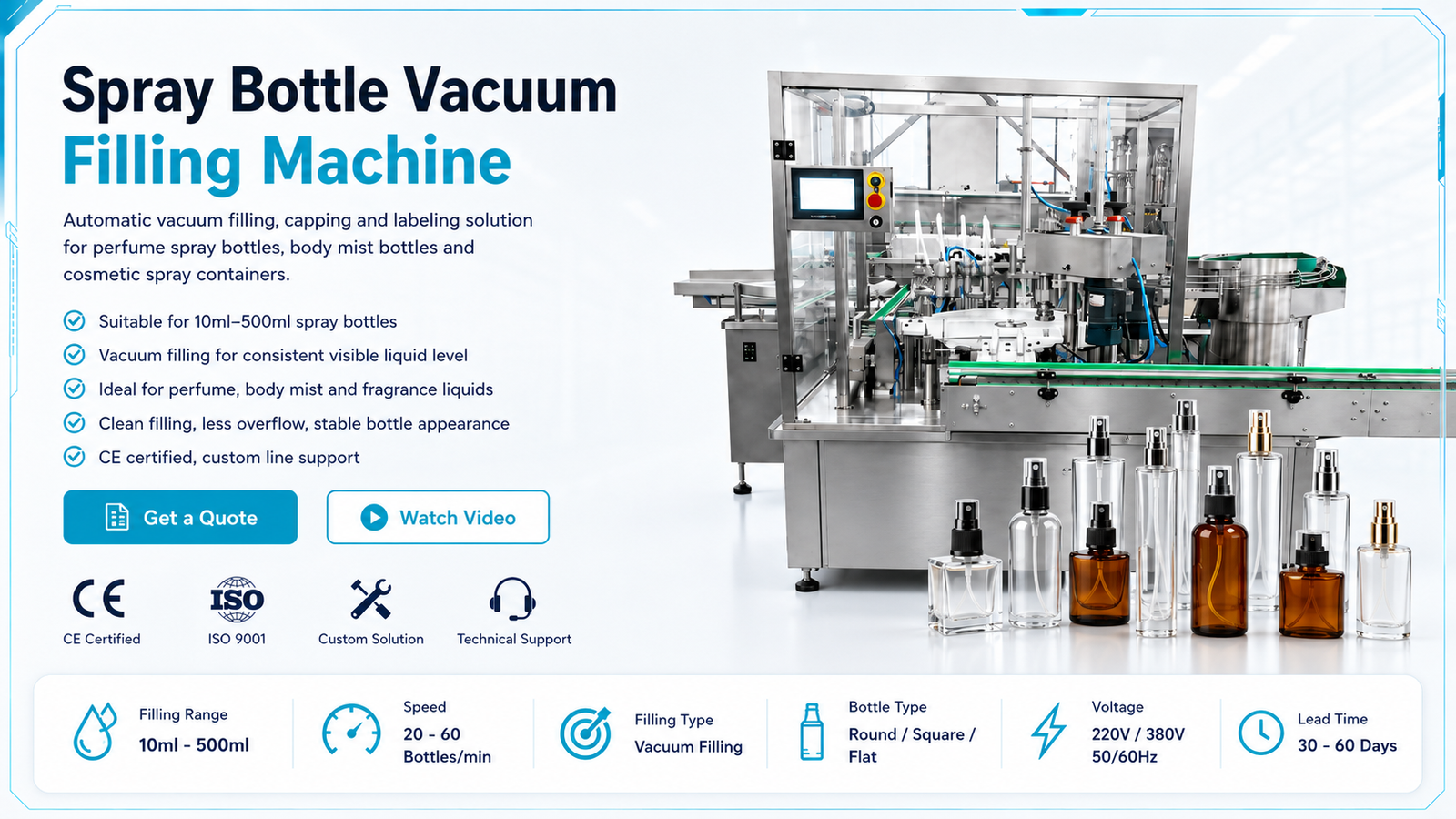

Automatic Spray Bottle Vacuum Filling Machine Line
Working video:
What you can get from us?
Parameter:
- Model: Automatic Spray Bottle Vacuum Filling Machine
- Filling volume: 5-120ml(customized)
- Filling nozzles: 1-4 nozzles for your optional(customized)
- Filling speed: 10-80BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±0.5%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:
1.Adopt vacuum filling solution for filling that ensure filling with high precision and custmized for perfume products making it convenient for customer operation and use
1.It can quickly change for different diameter bottles within 30 minutes
The machine use servo control to automatically adjust the filling volume, making it convenient for customer operation
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What You Can Get With Our Spray Bottle Vacumm Filling Machine
Related Products:
FAQ:
A spray bottle vacuum filling machine creates negative pressure inside a rigid bottle and draws the liquid into the container. The filling nozzle controls the final liquid height, while excess liquid can be returned to a recovery tank. This makes vacuum filling especially suitable for transparent perfume and body mist bottles where a consistent visible fill level is important.
Unlike a volumetric filling machine, a vacuum filler normally fills each bottle to the same height rather than dispensing exactly the same volume into every container. Minor differences in the internal capacity of glass bottles may therefore cause small variations in the actual milliliter volume.
Vacuum filling is best suited for rigid containers such as glass perfume bottles and sufficiently rigid plastic spray bottles. Round, square and flat bottles can usually be handled when the conveyor guides, bottle positioning parts and filling nozzles are customized to the actual packaging.
The bottle neck must be flat and dimensionally stable so that the filling nozzle can form an airtight seal. Thin or easily collapsible plastic bottles may deform under vacuum and should be tested before the machine design is finalized.
The machine is mainly designed for low-viscosity liquids such as perfume, cologne, body mist, fragrance mist, facial toner, alcohol-based spray and other cosmetic liquids. Vacuum filling can reduce visible differences in fill height and help limit foaming or air pockets in suitable products.
It is not normally the first choice for thick creams, gels, shampoos or high-viscosity products. The final suitability depends on viscosity, alcohol content, foaming behavior, bottle opening and the selected vacuum system, so the actual formulation should be tested before production.
A standard vacuum filling system should not automatically be described as explosion-proof. Perfumes and colognes containing a high percentage of alcohol can release flammable vapor, so the required machine configuration depends on the formulation, flash point, workshop ventilation and local hazardous-area regulations.
Where required, the line can be designed with explosion-proof electrical components, appropriate grounding and antistatic measures, pneumatic controls, vapor management and suitable motors or control enclosures. The customer should provide the alcohol percentage, safety data sheet and local certification requirements before the machine is manufactured.
Customers should provide representative bottles, spray pumps, dip tubes, collars, overcaps and the actual perfume or a safe test liquid with similar characteristics. Bottle drawings alone may not reveal variations in the bottle neck, internal capacity, pump fit or crimping dimensions.
During factory acceptance testing, the supplier should verify:
- Liquid-level consistency
- Bottle sealing during vacuum filling
- Overflow recovery and product return
- Bottle transportation and positioning
- Spray-pump and dip-tube insertion
- Crimping, press-capping or screw-capping quality
- Changeover between different bottle sizes
- Continuous running speed and alarm functions
Physical sample testing is particularly important because vacuum filling performance depends on bottle rigidity and the ability of the bottle neck to form a reliable seal with the nozzle.
