Automatic tin can PVC glue filling machine

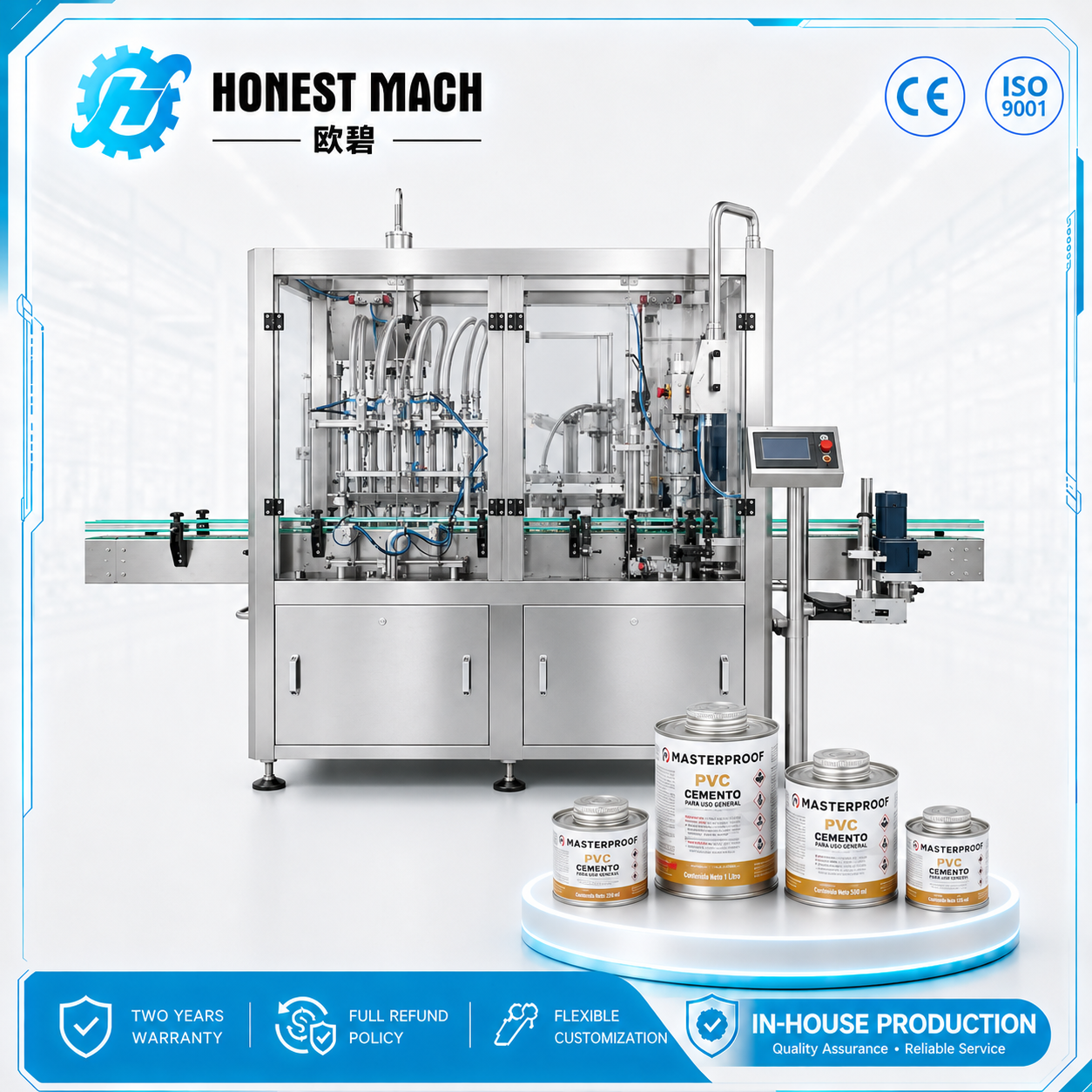

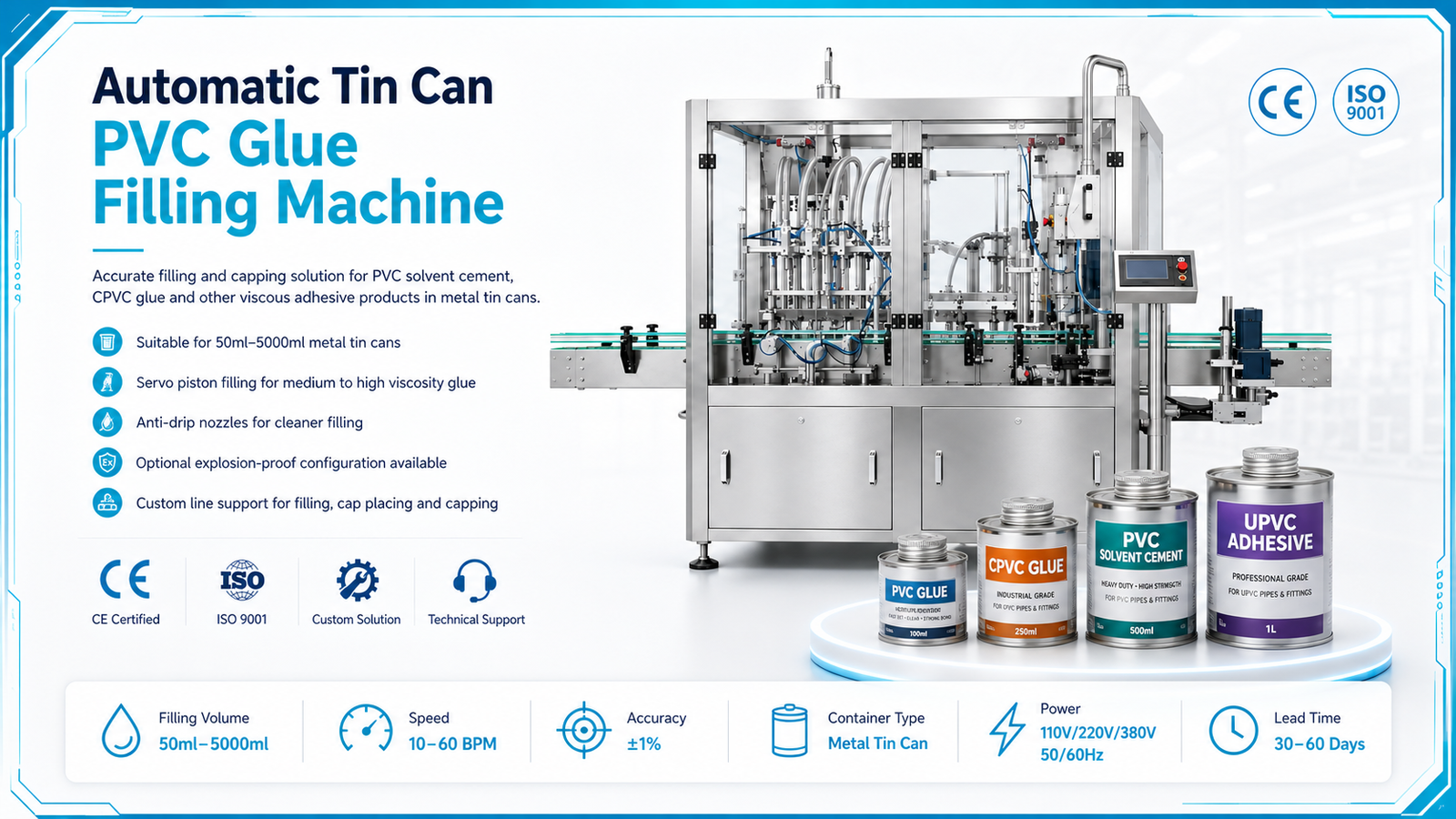

Automatic Metal Can PVC Glue Filling Machine
This automatic metal can PVC glue filling machine is designed for filling and capping solvent-based adhesives, PVC solvent cement, CPVC glue, UPVC adhesive, epoxy glue, contact adhesive, resin, sealant and other high-viscosity industrial liquids into metal tin cans or similar rigid containers.
The machine can complete automatic can feeding, accurate glue filling, cap placing and capping according to your can size, filling volume and adhesive viscosity. For PVC glue and solvent cement products, the filling system can be customized with piston filling, servo filling or anti-drip nozzles to reduce material waste, control stringing and keep the filling area cleaner during continuous production.
Key Advantages:
- Accurate Filling for Viscous Glue: Suitable for PVC glue, solvent cement, epoxy adhesive, resin and other medium-to-high-viscosity liquids.
- Metal Can Packaging Solution: Designed for tin cans, metal cans, aluminum cans and customized rigid adhesive containers.
- Anti-Drip and Cleaner Filling: Optional anti-drip filling nozzles help reduce glue stringing, leakage and product waste.
- Safer Solvent-Based Production: Optional exhaust, grounding and explosion-proof configuration are available for volatile adhesive products.
Working video:
What we can offer you?
Parameter:
- Model: Automatic tin can PVC glue filling machine
- Filling volume: 50-5000ml(customized)
- Filling nozzles: 1-8 nozzles for your optional(customized)
- Filling speed: 10-60BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 1890mm*1520mm*1970mm(customized)
Highlight:
1.It use piston pumps for filling, suitable for materials of different viscosities.
2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter bottles
1.Machine comes with cleaning function that can do cleaning automatically after finish filling
2.No bottle no filling and no cap no capping
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our automatic tin can PVC glue filling machine line
Related Products:
FAQ:
Yes. This machine can be configured for solvent-based PVC cement and similar adhesive products. For this type of liquid, the key point is not just filling speed, but how the machine controls dripping, stringing, and sealing cleanliness.
We can optimize the filling system with suitable valves, nozzle design, and product-contact materials to reduce leakage and improve filling stability. Before production, we also recommend testing with your actual sample to confirm compatibility and filling performance.
The machine can be designed for multiple metal can sizes within an agreed range, rather than only one fixed can format. If your product line includes several tin can volumes—such as small retail cans and larger industrial packs—we can adjust the conveyor, positioning structure, and filling setup accordingly.
For customers with more than one can size, we normally evaluate the diameter, height, opening size, and filling volume in advance so that the machine is practical for real production instead of only working for one sample can.
This is one of the most important points for PVC glue packaging. If glue residue remains on the can mouth, it may affect cap tightening, sealing quality, and the final label appearance.
To reduce this risk, the machine can be configured with a stable filling path, controlled nozzle action, and a layout that helps keep the can opening area clean during production. In actual projects, we pay special attention to the relationship between filling accuracy, nozzle shut-off behavior, and cap application, because clean filling is essential for good packaging results.
Yes. For PVC glue and similar industrial adhesives, many overseas customers are concerned about plant safety, ventilation conditions, and local workshop requirements. We can discuss customized electrical configuration, machine layout, safety guarding, and production-line matching based on your product and factory conditions.
If your material has special safety requirements, please share the product data or basic information in advance. That allows us to recommend a more suitable configuration and avoid a generic solution that may not fit your application.
To prepare an accurate quotation, it is best to provide:
- Your product type and basic viscosity information
- The tin can sizes you want to run
- The target filling volume for each can
- Required speed or output per hour
- Whether you need only filling, or also cap pressing/capping, labeling, coding, or carton packing
- Photos or samples of the can, lid, and finished package
For PVC glue projects, these details are especially important because the machine must match both the product behavior and the container structure. The more complete the information is, the more accurate and useful the proposed solution will be.
