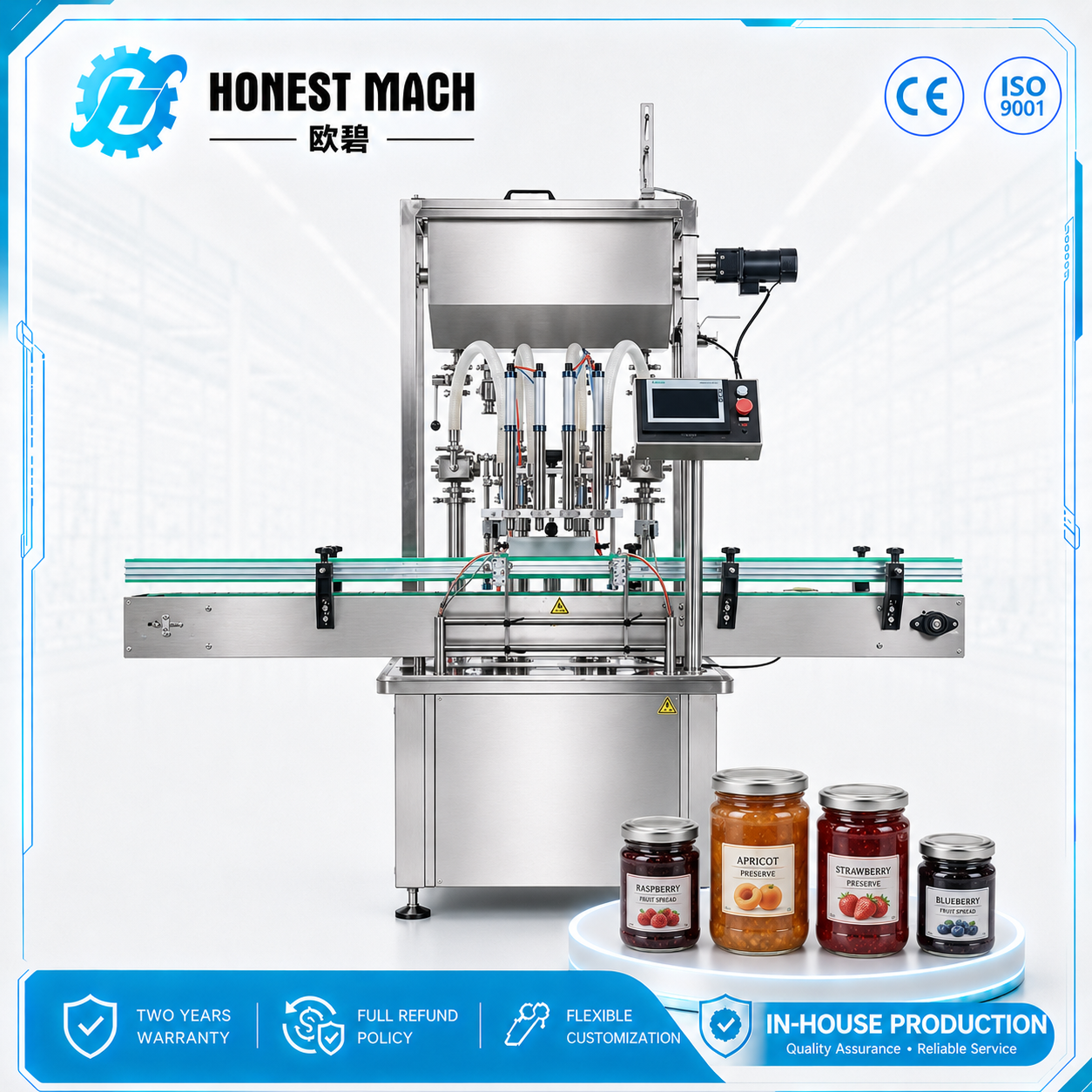

Automatic glass jar jam filling machine
Custom viscous filling, capping and labeling solution for fruit jam, jelly, honey, sauce and other thick food products.
This automatic jam filling machine is designed for filling fruit jam, jelly, marmalade, honey, ketchup, chili sauce, peanut butter and other high-viscosity food products into glass jars or plastic containers.
The machine uses a piston filling system with anti-drip nozzles to help keep each jar clean, reduce product waste and improve filling accuracy. For thicker jam or products with small fruit particles, the hopper can be customized with heating, mixing or pressure feeding to keep the product flowing smoothly during production.
Key Features:
- Built for viscous products: Suitable for jam, jelly, honey, sauce, ketchup, peanut butter and other thick liquids.
- Cleaner filling result: Anti-drip filling nozzles help reduce leakage and keep jar mouths clean before capping.
- Custom filling range: Filling volume, nozzle quantity and line speed can be adjusted based on your jar size and production capacity.
- Optional heating and mixing hopper: Helps keep thick jam or sauce moving smoothly during continuous filling.
Send us your jar size, filling volume, lid type and product viscosity. we can recommend a suitable jam filling machine or complete glass jar filling line for your production.

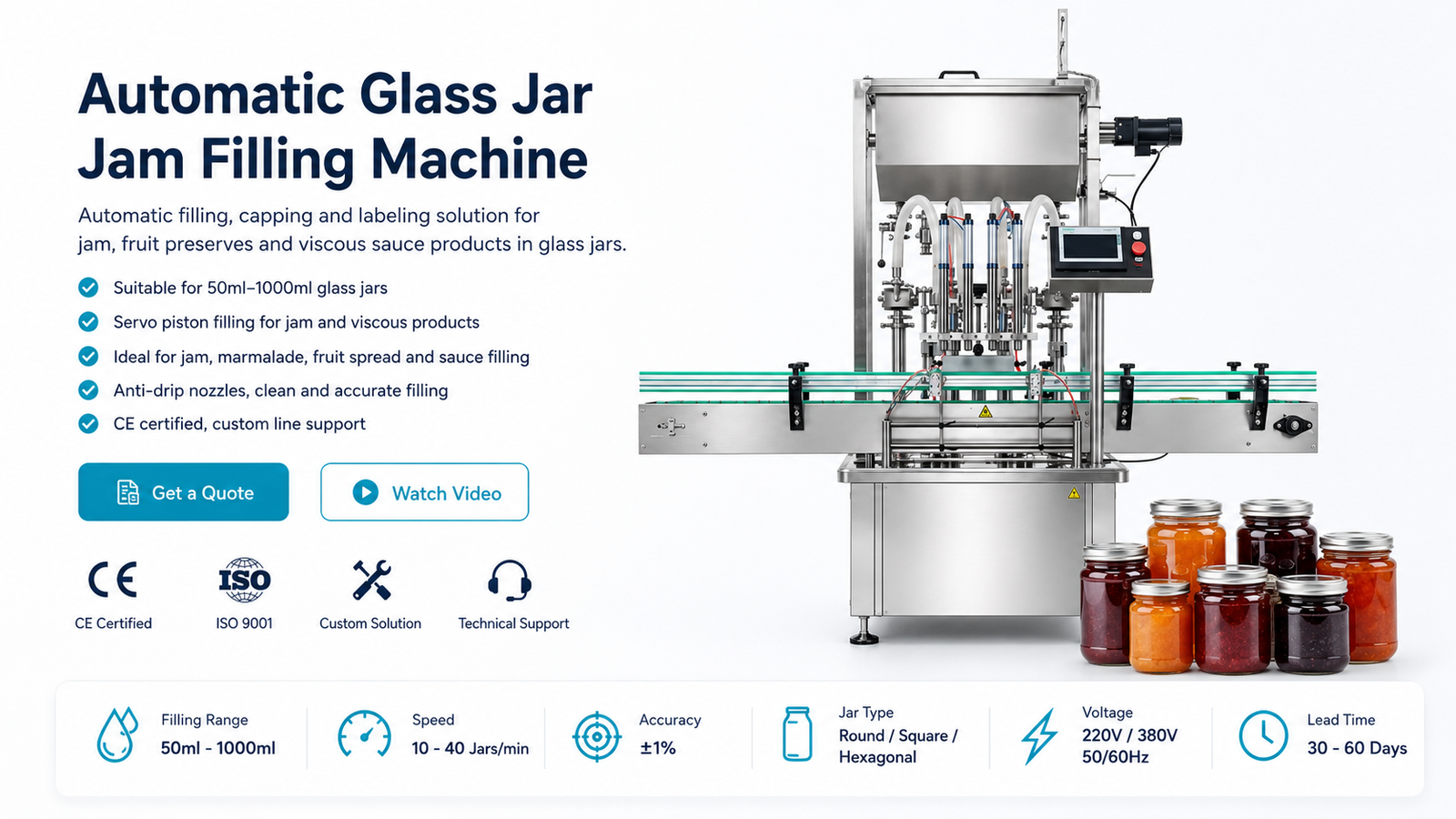

Automatic Glass Jar Jam Filling Machine Line
Working video:
What we can offer you?
Parameter:
- Model: Automatic glass jar jam filling machine
- Filling volume: 50-1000ml(customized)
- Filling nozzles: 1-12 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:
1.It use piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).
2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter jars
1.The hopper with mixer and it is double jacket with heating function and make it more easier to do filling for high viscosity products
2.Machine also comes with cleaning function that can do cleaning automatically after finish filling
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our automatic glass jar jam filling machine
Related Products:
FAQ:
The machine is suitable for viscous food products such as jam, marmalade, fruit preserves, fruit spread, honey, chili sauce, tomato sauce and other thick or semi-thick products.
For products containing pulp, fruit particles or seeds, the filling system can be customized according to the product characteristics to ensure smooth feeding and stable filling performance.
Yes. The machine can be customized for different glass jar formats, including round jars, square jars, hexagon jars and wide-mouth jars.
It can also be adjusted for different filling volumes, typically from small glass jars to larger food jars, depending on your production needs. To ensure the best match, customers are recommended to provide jar samples or detailed dimensions before production.
Yes, it can be configured for hot-fill applications or products that require temperature control.
For jam, marmalade or other viscous products that need better flowability, the machine can be equipped with a heated hopper and mixing function. This helps keep the product uniform during filling and reduces clogging or inconsistent filling caused by temperature changes.
The machine uses servo piston filling with anti-drip nozzles to reduce dripping and stringing during filling.
This is especially important for jam and other sticky products, because clean jar mouths improve sealing quality and help the capping process run more smoothly. A clean fill also gives the finished product a better appearance on the retail shelf.
To recommend the right solution, it is best to provide:
- Product name and viscosity
- Whether the product contains fruit pieces or particles
- Filling volume
- Jar shape, size and opening diameter
- Cap type
- Required production speed
- Whether you need capping, labeling or coding functions
If possible, sending actual product and jar samples is highly recommended. This helps confirm filling accuracy, nozzle design, jar handling and complete line compatibility before production.
