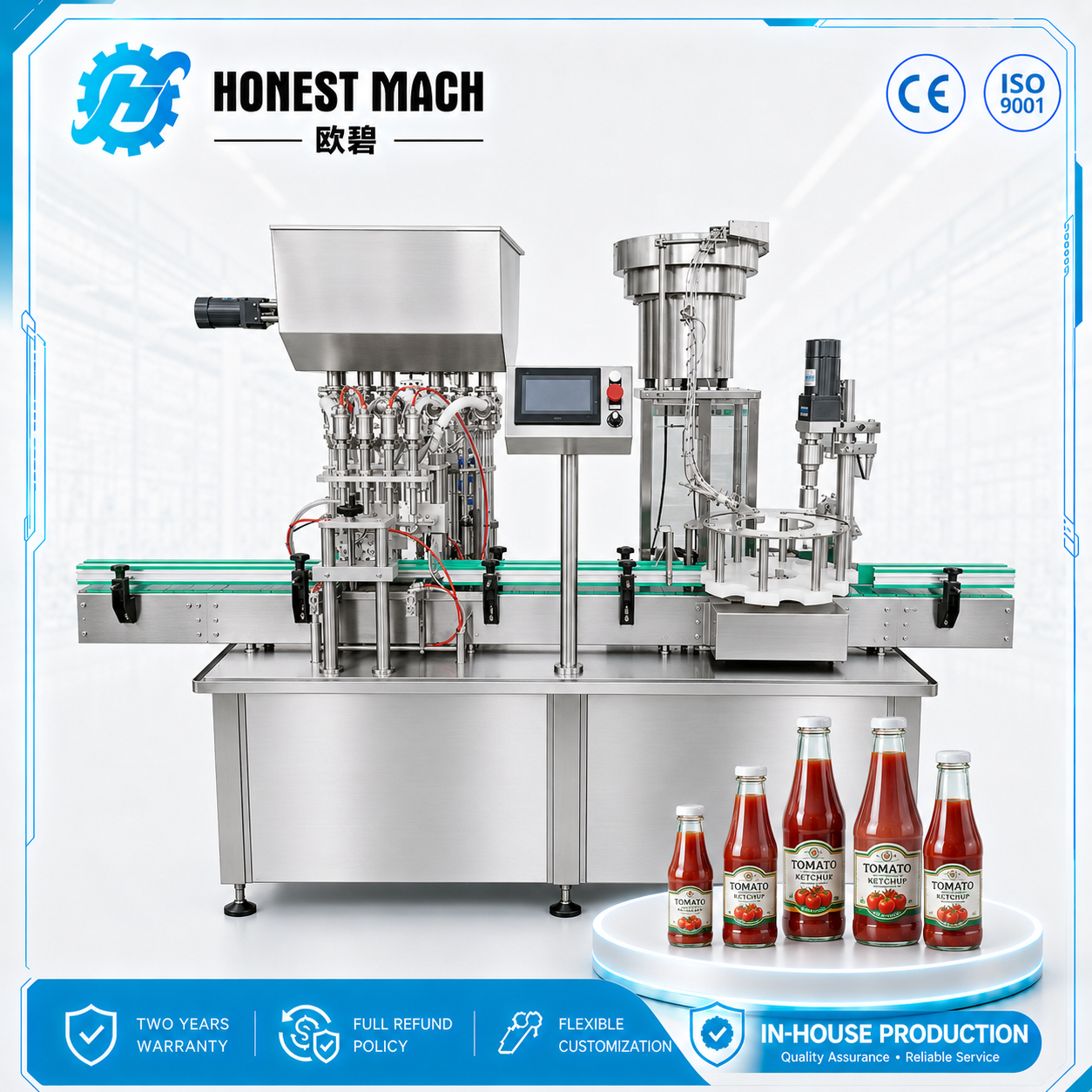

Automatic glass bottle tomato paste filling machine
Servo piston filling, capping and labeling solution for tomato paste, ketchup, tomato sauce and other thick food sauces.
This tomato paste filling machine uses a servo piston filling system to handle viscous and semi-liquid sauces with stable volume and clean filling performance. It is suitable for glass bottles, jars and customized sauce containers, and can be connected with automatic capping, labeling and date coding machines to build a complete ketchup filling and packing line.
Key Features:
- Suitable for tomato paste, ketchup, tomato sauce, chili sauce, jam, honey and mayonnaise
- Servo piston filling system for thick sauce and paste products
- Anti-drip filling nozzles to keep the bottle mouth clean
- Optional heating hopper and mixing tank for better sauce flow
- Can connect with bottle feeding, capping, labeling and coding machines
- Customized according to bottle size, cap type, filling volume and target capacity
Tell us your bottle sample and sauce viscosity. We will design the right filling solution for your production line.

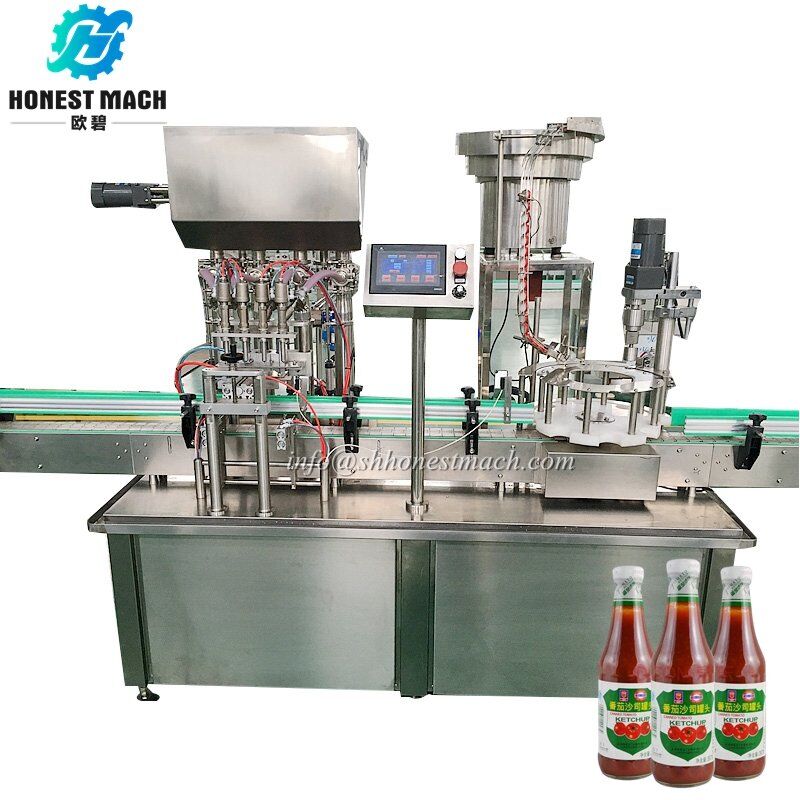

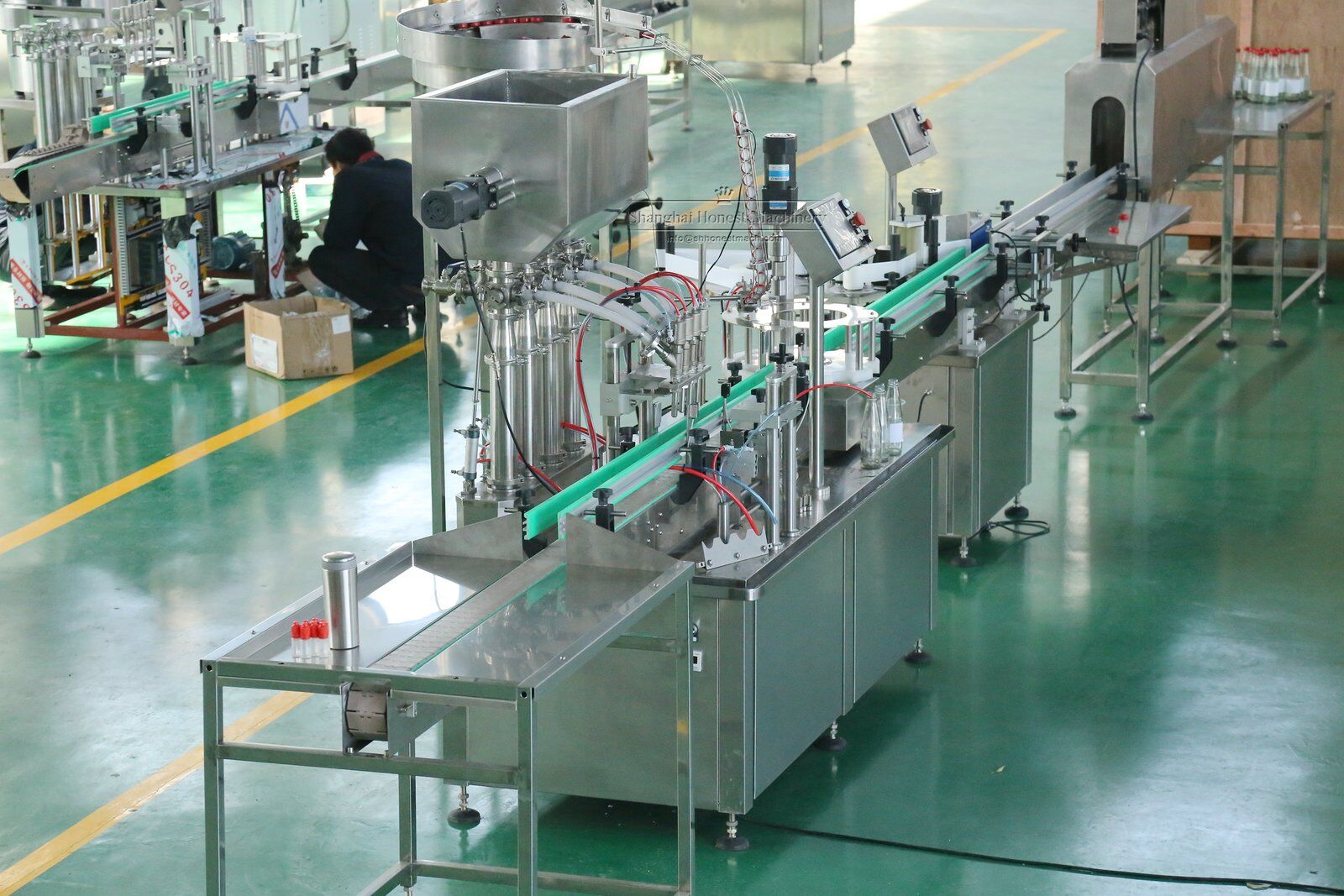

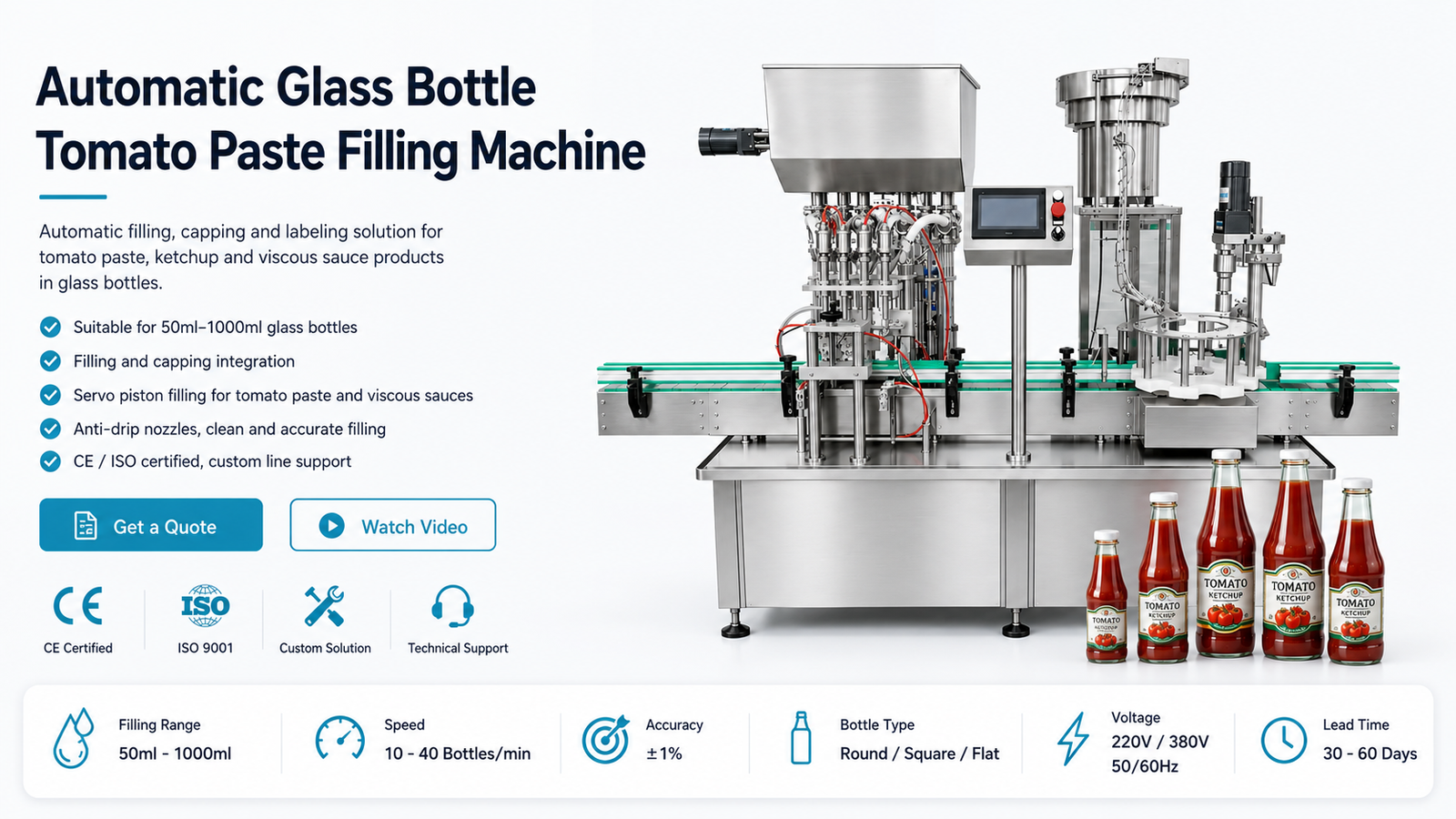

Automatic Glass Bottle Tomato Paste Filling Machine Line
Working video:
What we can offer you?
Parameter:
- Model: Automatic glass bottle tomato paste filling machine
- Filling volume: 50-1500ml(customized)
- Filling nozzles: 1-12 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:
1.It use piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).

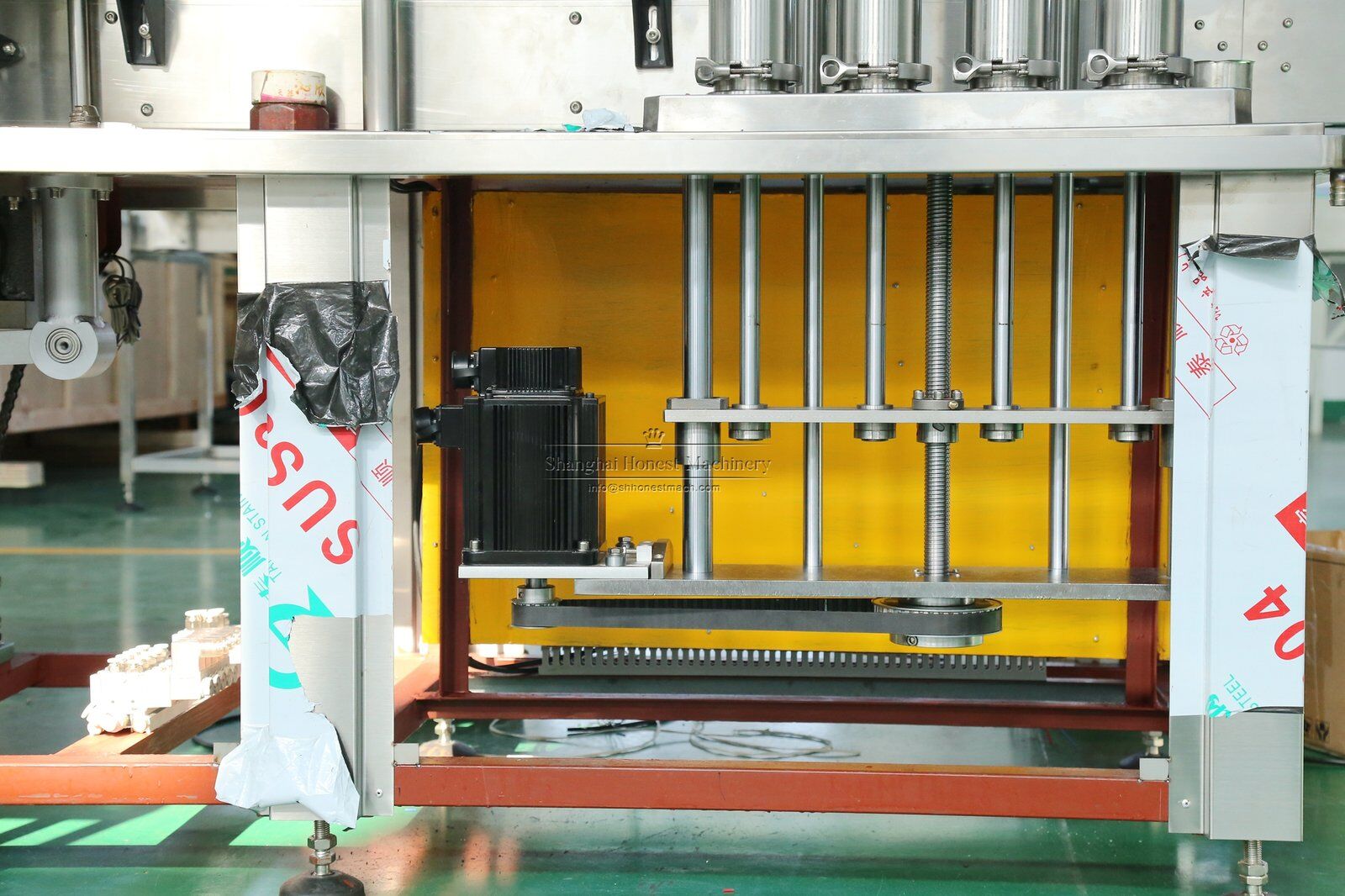

2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter bottles within 30 minutes
1.The hopper with mixer and it is double jacket with heating function and make it more easier to do filling for tomato paste products
2.Machine also comes with cleaning function that can do cleaning automatically after finish filling

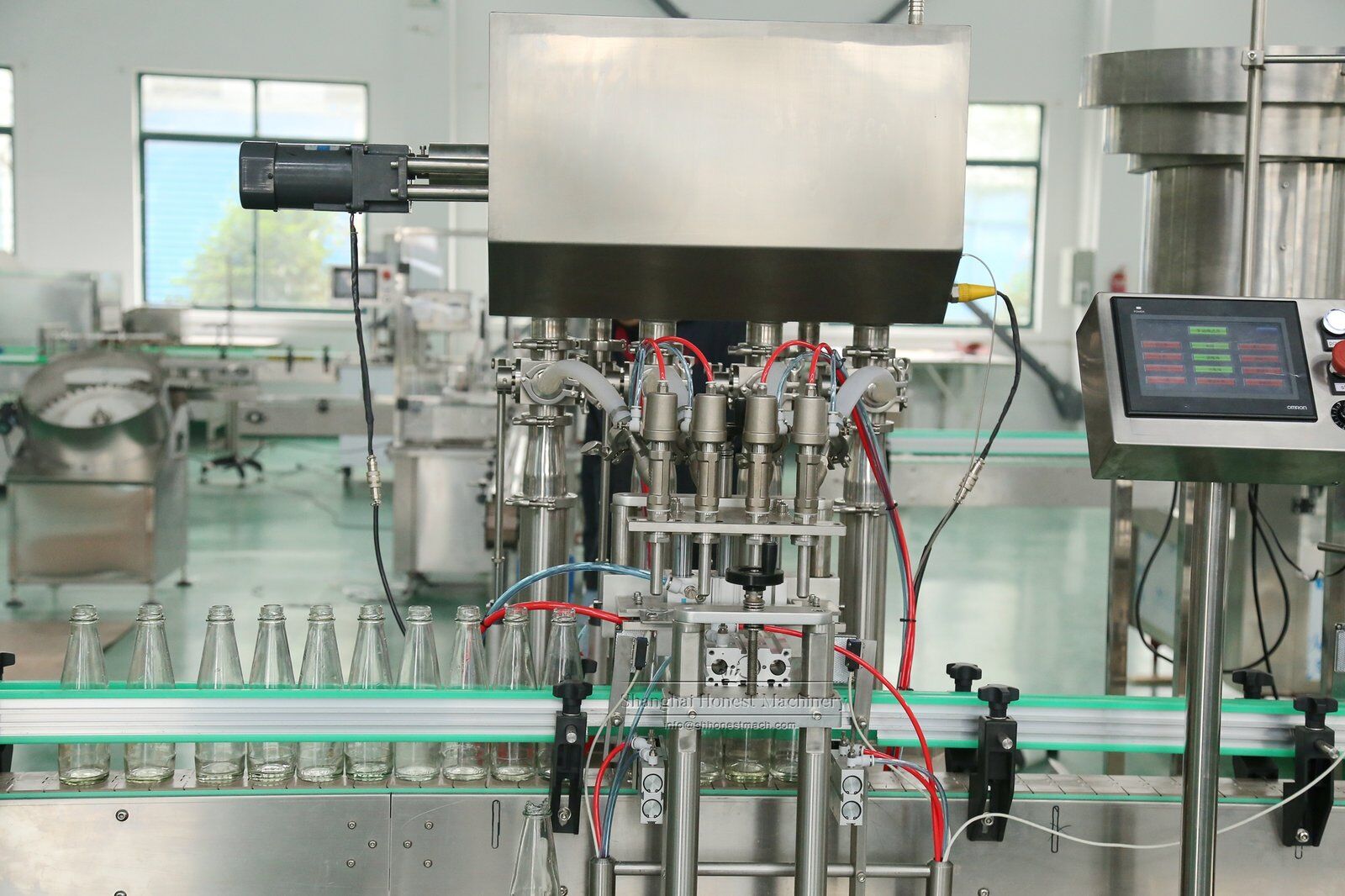

The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our automatic glass bottle tomato paste filling machine
Related Products:
FAQ:
The machine is suitable for tomato paste, ketchup, tomato sauce, chili sauce, hot sauce and other viscous or semi-viscous sauce products.
If your product contains pulp, small particles or seasonings, the filling system can be customized according to the actual product characteristics to ensure stable feeding and clean filling.
Yes. The machine can be customized for multiple glass bottle formats, including round, square and flat bottles.
It can also be adjusted for different filling volumes, typically from small bottles to larger sauce bottles, depending on your project requirements. For the most accurate machine design, bottle samples or detailed bottle dimensions are recommended before production.
Yes, it can be configured for hot filling or for products that require better flow performance during filling.
For thicker sauces such as tomato paste, the machine can be equipped with a heated hopper and mixing function if needed. This helps maintain product consistency and improves filling stability during production.

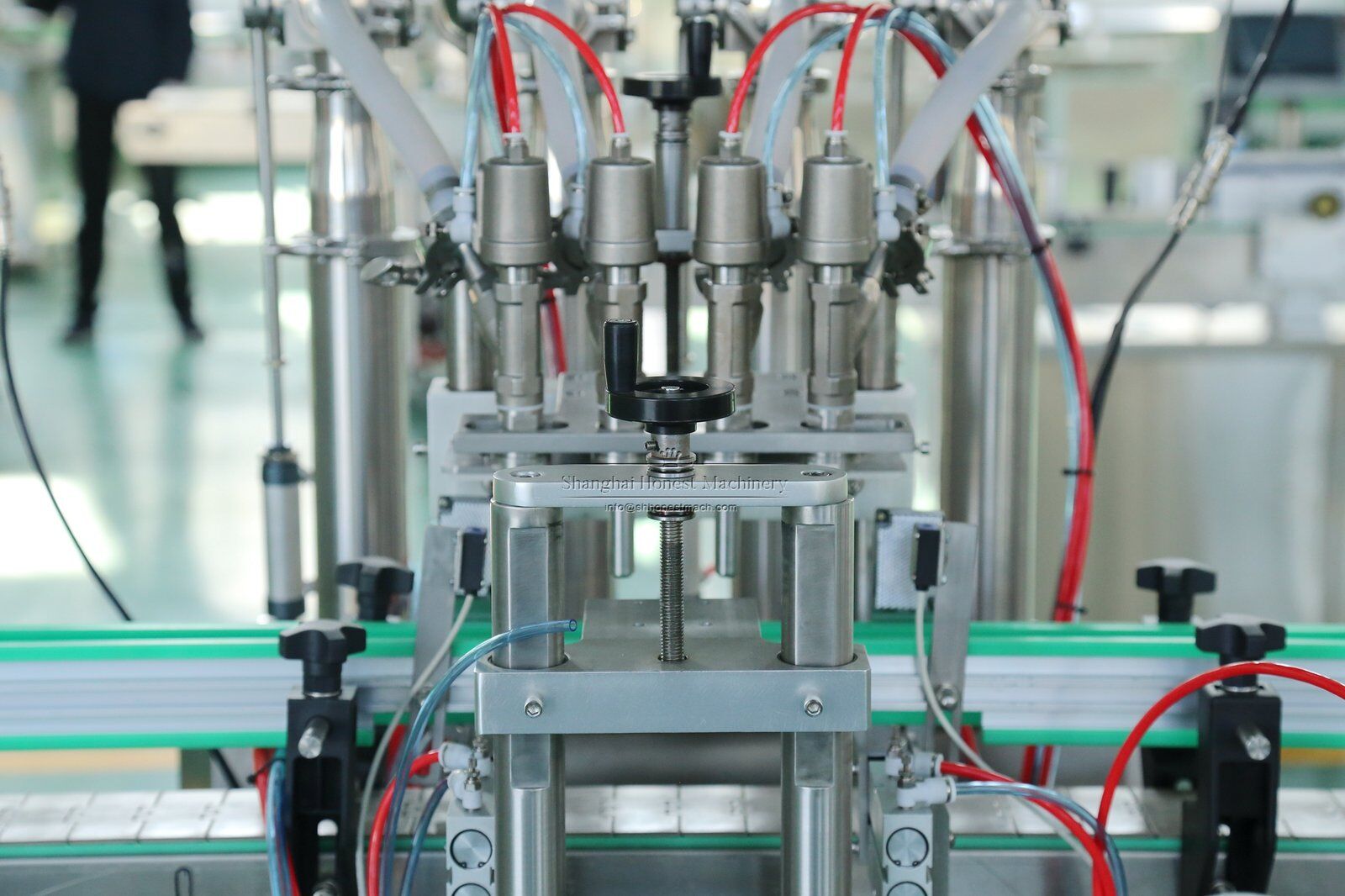

The machine uses servo piston filling with anti-drip nozzles to reduce dripping, stringing and product residue at the bottle mouth.
This is especially important for tomato paste and thick sauces, because clean filling improves bottle appearance, reduces waste and helps the capping process run more smoothly.
To recommend the right solution, it is best to provide the following details:
- Product name and viscosity
- Whether the product contains particles or pulp
- Filling volume
- Bottle shape, size and neck diameter
- Cap type
- Required production speed
- Whether you also need capping, labeling or coding
If possible, sending actual product and bottle samples is highly recommended. This helps confirm filling performance, nozzle design, bottle handling and line compatibility before manufacturing.
