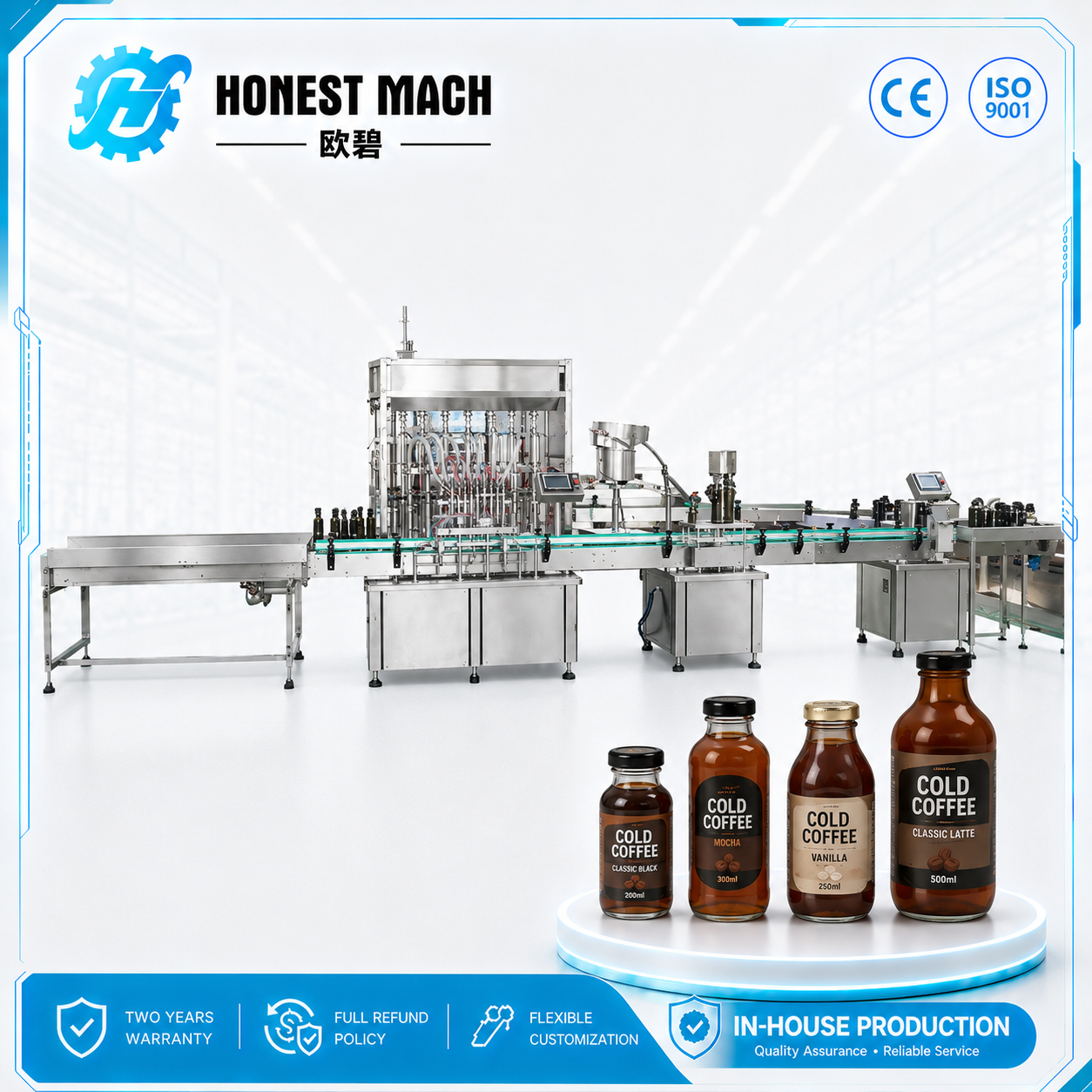

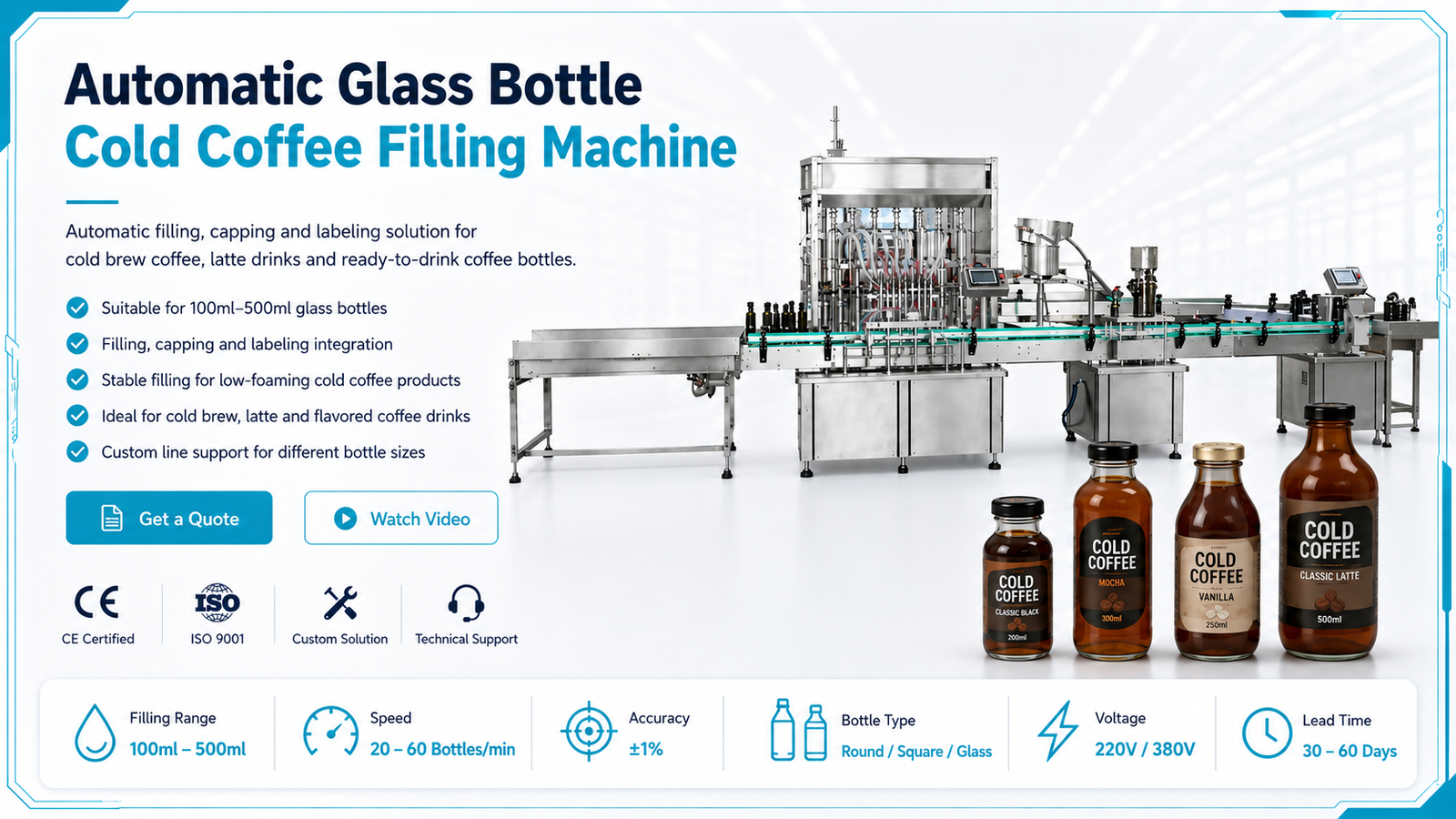

Automatic glass bottle cold coffee filling machine
Inline coffee beverage filling, capping and labeling solution for cold brew coffee, iced coffee, RTD coffee, milk coffee and non-carbonated coffee drinks.
Our automatic glass bottle cold coffee filling machine is designed for filling cold brew coffee, iced coffee, RTD coffee, coffee concentrate, milk coffee, flavored coffee drinks and other non-carbonated beverage products into glass bottles, PET bottles or small beverage containers.
This inline coffee filling machine can be customized according to your bottle volume, coffee type, viscosity, foam level, filling temperature, cap style and target production capacity. For clear coffee or low-viscosity coffee beverages, gravity filling, flow meter filling or overflow filling can be selected. For milk coffee, coffee concentrate or slightly thicker beverage products, piston filling can be configured to improve filling stability and accuracy.
Key Features:
- Suitable for cold coffee products such as cold brew coffee, iced coffee, RTD coffee, milk coffee, coffee concentrate and flavored coffee drinks.
- Designed for glass bottles and beverage containers, including glass coffee bottles, PET bottles, round bottles and square bottles.
- Custom filling system with gravity filling, flow meter filling, overflow filling or piston filling according to viscosity and fill level requirements.
- Food-grade contact parts for hygienic filling of coffee beverages and non-carbonated drinks.
Working video:
What we can offer you?
Parameter:
- Model: Automatic glass bottle cold coffee filling machine
- Filling volume: 50-5000ml(customized)
- Filling nozzles: 1-16 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 1930mm*1550mm*2050mm(customized)
Highlight:
1.Gravity-based free-flow filling simplifies equipment and reduces maintenance.
1.It can quickly change for different diameter bottles
1.Machine comes with cleaning function that can do cleaning automatically after finish filling
2.No bottle no filling and no cap no capping
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our automatic glass bottle cold coffee filling machine
Related Products:
FAQ:
Yes, the machine can be configured for different cold coffee formulations, including black coffee, latte, milk coffee, sweetened coffee and some drinks with light suspended particles. The most important point is to match the filling system with the actual product viscosity, temperature and ingredient characteristics.
For milk-based or sugar-containing drinks, we usually recommend a hygienic filling solution with food-grade contact parts and easy-clean structure. If your product has fine particles or a thicker texture, we can also evaluate the flow behavior and recommend the most suitable filling method after checking your sample details.
This depends on your product process. The machine can be designed for cold filling, normal-temperature filling, or hot filling, depending on your beverage and shelf-life requirements. For ready-to-drink cold coffee in glass bottles, many customers use cold or ambient filling together with sterilization or pasteurization steps elsewhere in the line.
If your product requires hot filling, please share the filling temperature, bottle type and target output. We can then confirm whether the machine structure, sealing components and conveyor design should be upgraded for that process.
Compatibility is confirmed based on your bottle and cap details. We normally check the bottle height, diameter, mouth size, neck finish, cap type and label area before finalizing the machine design. This is especially important for glass bottles because bottle stability, bottle neck alignment and cap feeding accuracy directly affect production performance.
If you send us your bottle and cap samples or drawings, we can evaluate whether one machine can run multiple bottle sizes and what change parts may be needed.
For cold coffee products, hygiene is a key concern because coffee beverages can contain sugar, dairy ingredients or flavoring components that may leave residue in the filling path. A good machine should use SUS304 or SUS316L contact parts where required, smooth inner surfaces, sanitary piping and an easy-to-clean filling structure.
If you have higher hygiene requirements, we can also discuss CIP-compatible design or other sanitation-focused solutions. In actual projects, buyers usually focus not only on filling speed, but also on how quickly and thoroughly the machine can be cleaned between product changes.
A complete cold coffee bottling line often includes more than just the filler. Depending on your production process, the full line may include bottle feeding, bottle rinsing, filling, cap sorting, capping, labeling, date coding, shrink sleeving, carton packing and conveyor integration.
Some customers also need mixing tanks, filtration, sterilization or inspection equipment before or after filling. If you are planning a new project, it is better to review the whole line layout from the beginning so the filling machine matches your target capacity, bottle format and downstream packaging process.
