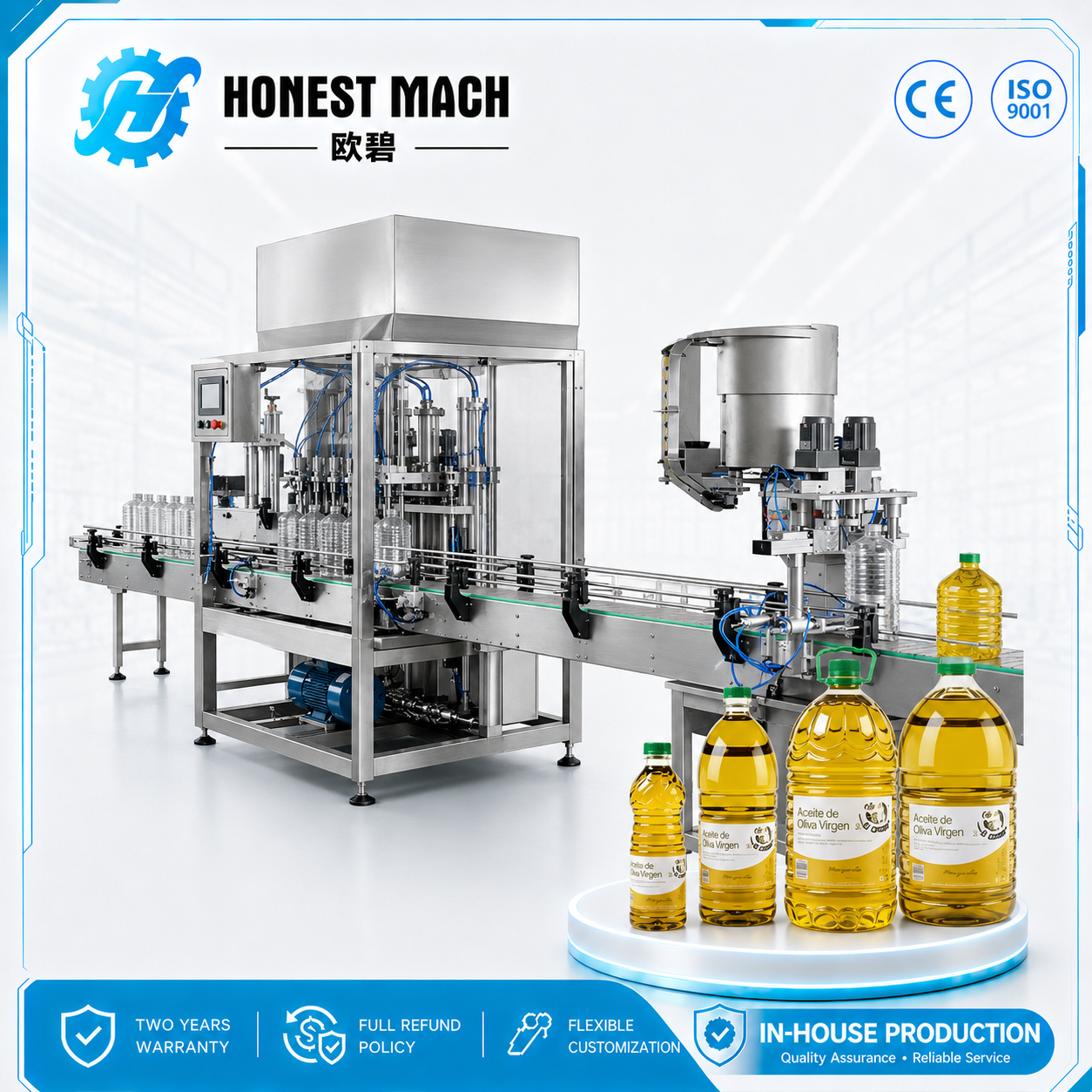

Automatic oil filling machine

The best filling method depends on the oil type, bottle volume, required accuracy and production capacity rather than simply choosing one technology for every edible oil.

For example, a servo-controlled piston filler provides precise volume control and works well across different viscosities. Flow-meter filling can be attractive for continuous high-speed production, while net-weight filling measures the actual product weight and can be useful where product giveaway must be closely controlled.

Our edible oil filling machine can therefore be customized with piston, flow-meter, gravity or weighing filling according to your product and production requirements.

If one factory produces several oils, such as sunflower oil, soybean oil and olive oil, the filling method should be selected based on the most demanding oil and bottle combination, not just the easiest product.

This is particularly important with edible oil because even a small amount of residual oil on the bottle exterior can create problems later in the packaging process.

Oil remaining on the bottle neck can contaminate the cap area, while oil on the bottle body may affect label adhesion and finished-product appearance. Cooking-oil packaging specialists therefore treat anti-drip filling as an important part of the complete line rather than only a cosmetic feature.

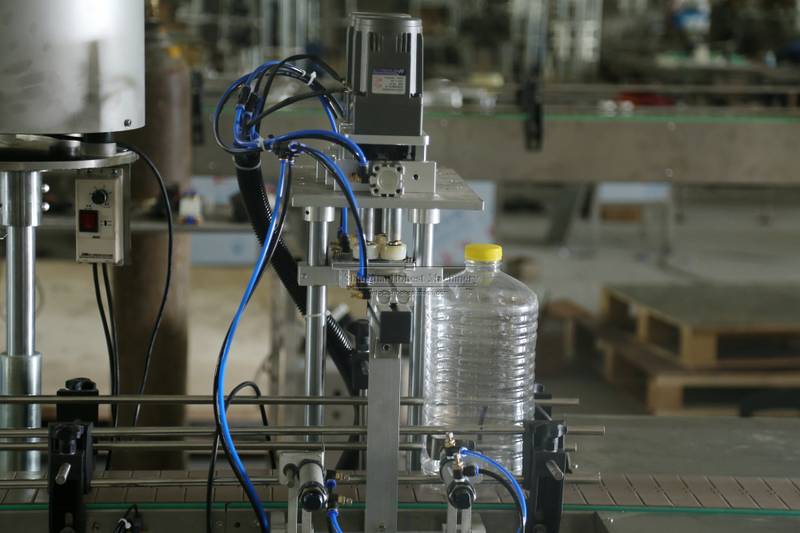

Our machine uses anti-drip filling nozzles to reduce oil leakage and keep the bottle mouth cleaner before capping.

For an actual project, the nozzle cut-off and filling speed should also be tested using the customer’s real oil because different oils can behave differently after the filling valve closes.

Yes, several food-grade oils can usually share one filling machine when their filling characteristics and production requirements are compatible.

However, changing from one oil to another should not be treated as only changing a touchscreen recipe. The product-contact circuit must also be properly cleaned when cross-product carryover matters.

Your current machine includes an automatic cleaning function after filling, and the filling parameters can be adjusted for different products and bottle sizes.

Other packaging-equipment manufacturers similarly note that multiple oils may share a machine when appropriate cleaning procedures, recipe control and wetted-part management are used; food-grade products should not simply share an uncontrolled system with industrial oils.

For premium products such as extra virgin olive oil, buyers should therefore discuss acceptable cross-product carryover before finalizing the line design.

They can.

Different edible oils already have different flow characteristics, and their behavior can also change with operating conditions. Because filling speed and dosing performance are influenced by product viscosity, the machine configuration should be based on the real production conditions rather than only the nominal bottle volume. Filling-machine manufacturers commonly treat viscosity as a key variable when determining output and equipment configuration.

Your machine can use different filling principles according to oil viscosity and required accuracy, including piston, flow-meter, gravity and weighing systems.

For a project where oil temperature changes significantly between seasons, it is better to specify the expected minimum and maximum filling temperatures before FAT so the machine can be tested under more realistic conditions.

The filling volume itself is only one part of the problem.

A 500ml retail bottle and a 5L handled cooking-oil bottle differ significantly in:

• bottle height and width,
• conveyor footprint,
• center of gravity,
• neck position,
• filling time,
• cap size,
• and labeling requirements.

Your current machine supports 50–5000ml filling, can quickly change for different bottle diameters, and uses servo control to adjust filling volume for different formats.

However, if both formats will be produced frequently, the line should be designed from the beginning around the full bottle family—including guide rails, filling nozzle spacing, cap feeding and downstream labeling—not just the filler.

For buyers with many SKUs, it is therefore better to provide all planned bottle and cap samples before machine design, rather than testing only one bottle and adding the others later.
