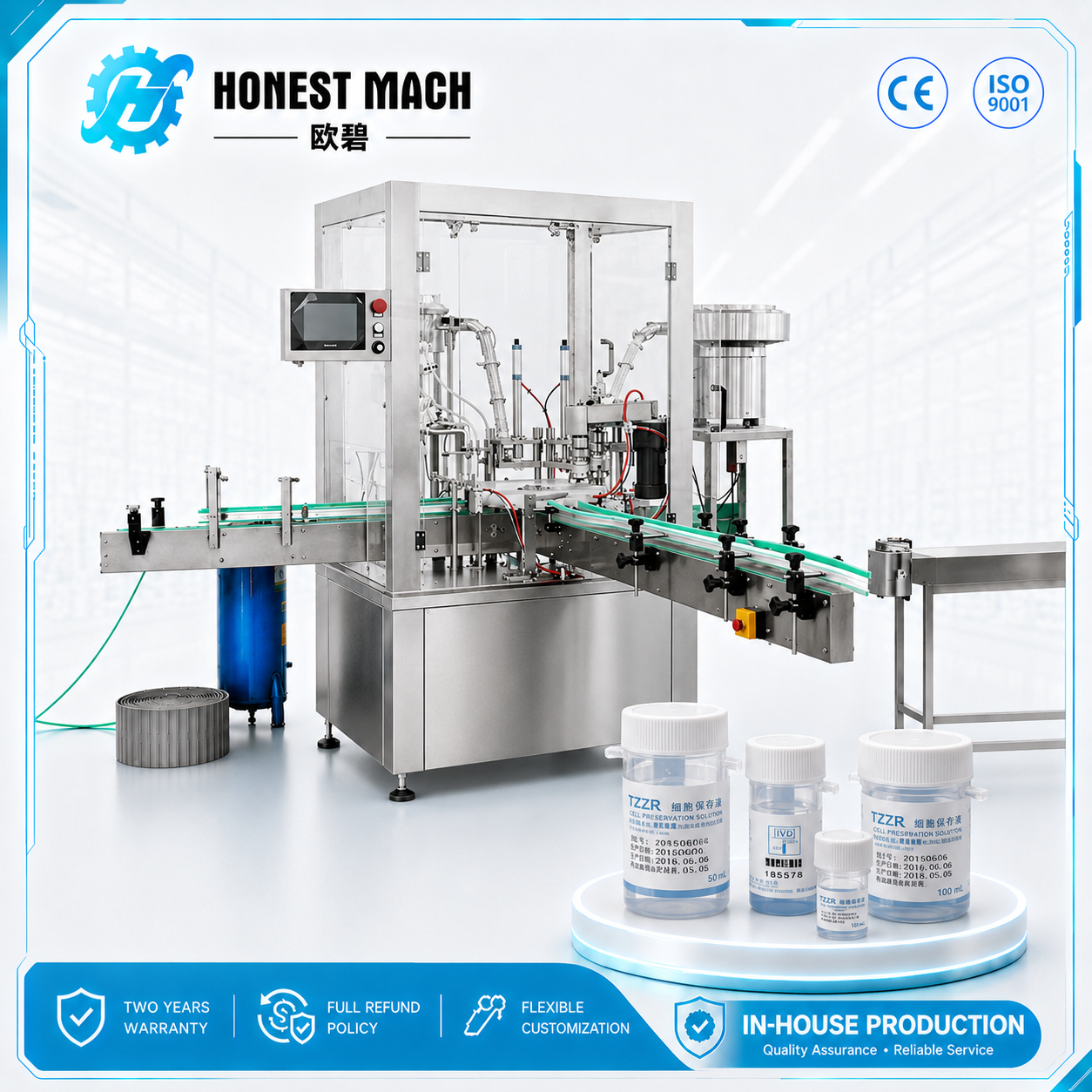

Cell preservation solution filling machine
Product Description：

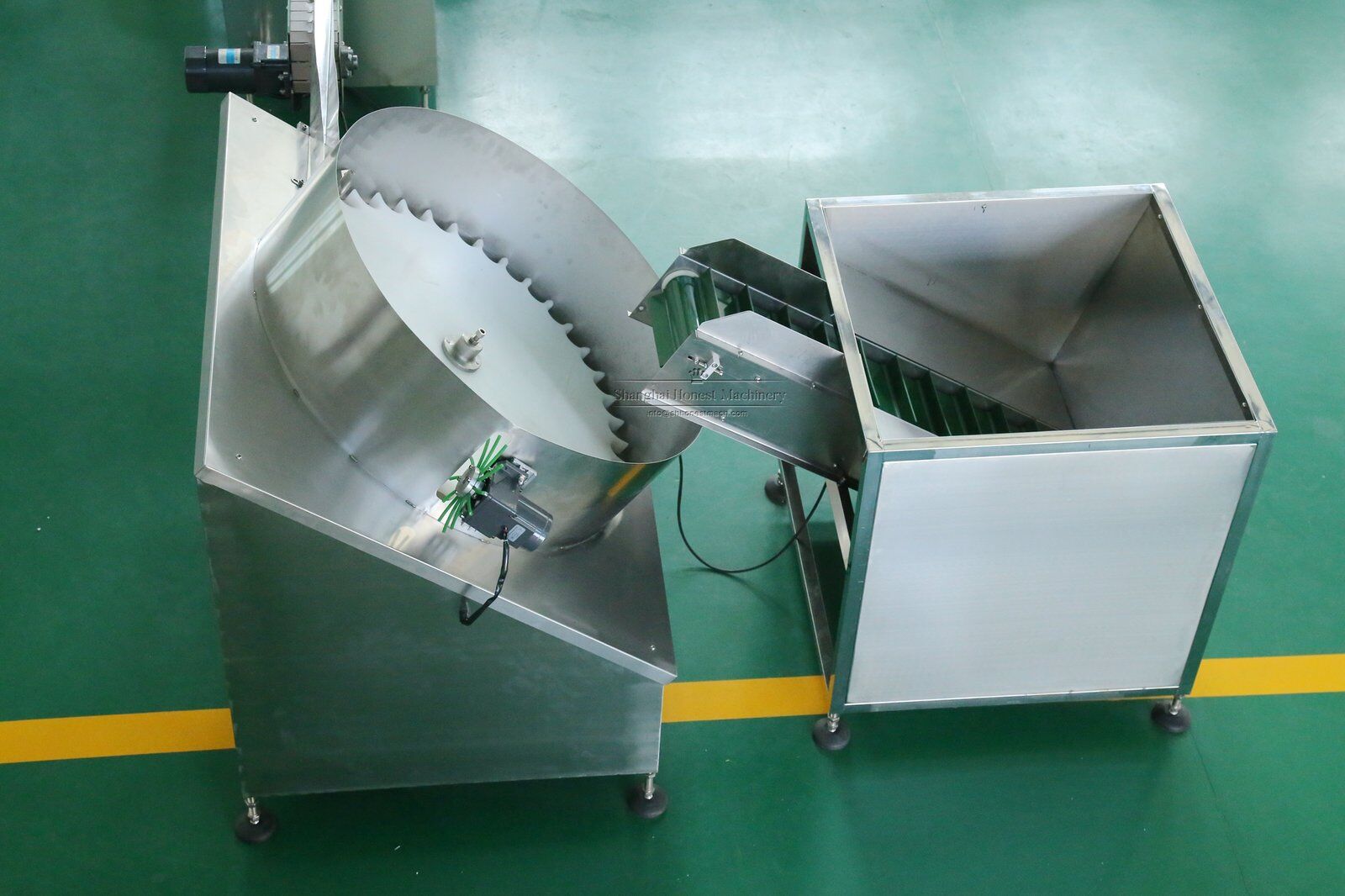

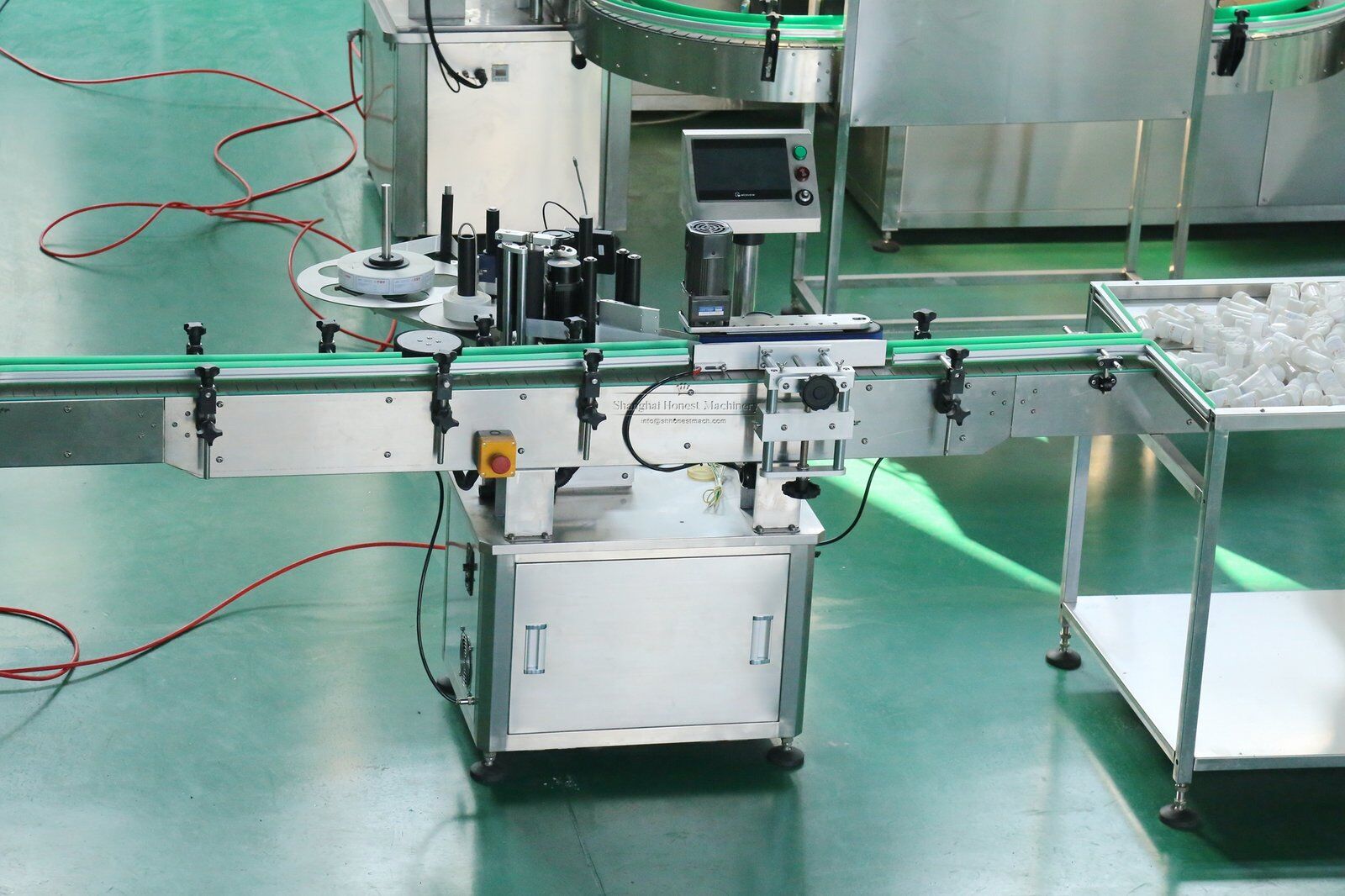

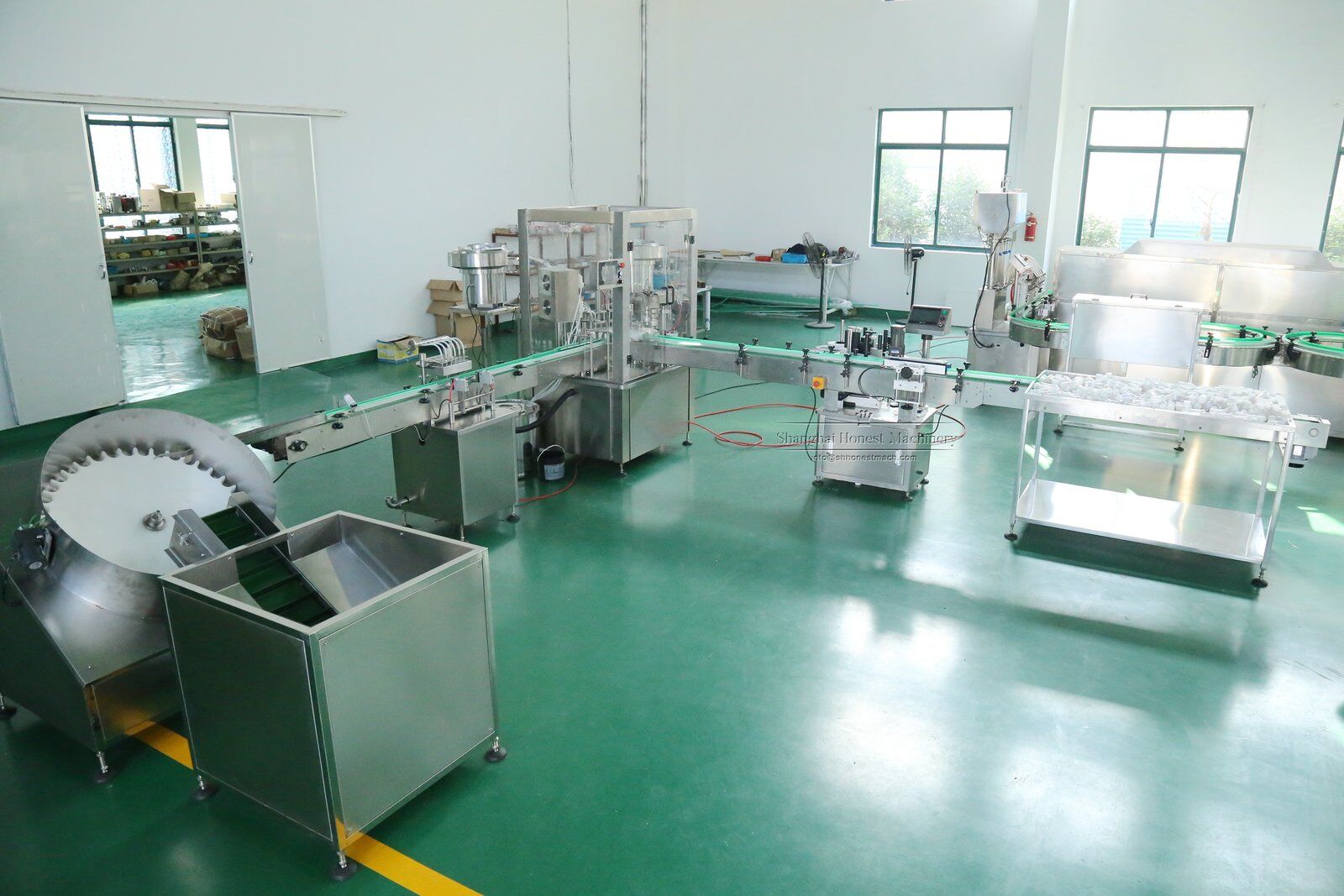

This cell preservation solution filling machine is designed for small-volume liquid packaging in biotech, laboratory, medical consumable and life science production. It can automatically complete bottle feeding, liquid filling, cap placing, screw capping and optional labeling in one connected line, helping manufacturers improve filling efficiency and reduce manual operation.
For customers who need higher hygiene control, the machine can be customized with SS316L contact parts, dust cover, laminar flow protection, cleanroom-compatible design and optional sterile filling configuration based on project requirements.
Key Features：
- Precise Small-Volume Filling: Designed for 5ml, 10ml, 15ml, 30ml, 50ml and other small bottle formats used in laboratory and biotech liquid packaging.

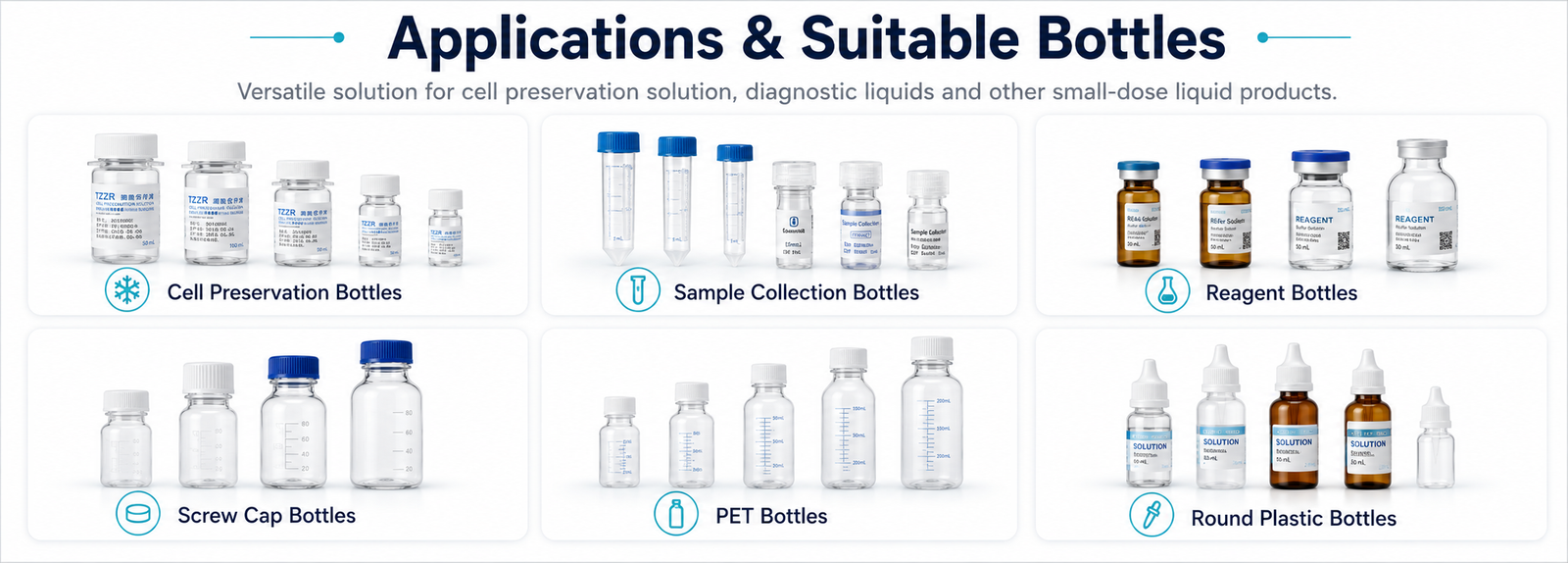

- Flexible Bottle Compatibility: Suitable for cell preservation solution bottles, reagent bottles, vials, dropper bottles, eye drop bottles, e-liquid bottles and essential oil bottles.
Send us your bottle size, filling volume, cap type and required output. We will recommend a suitable cell preservation solution filling and capping machine for your production line.

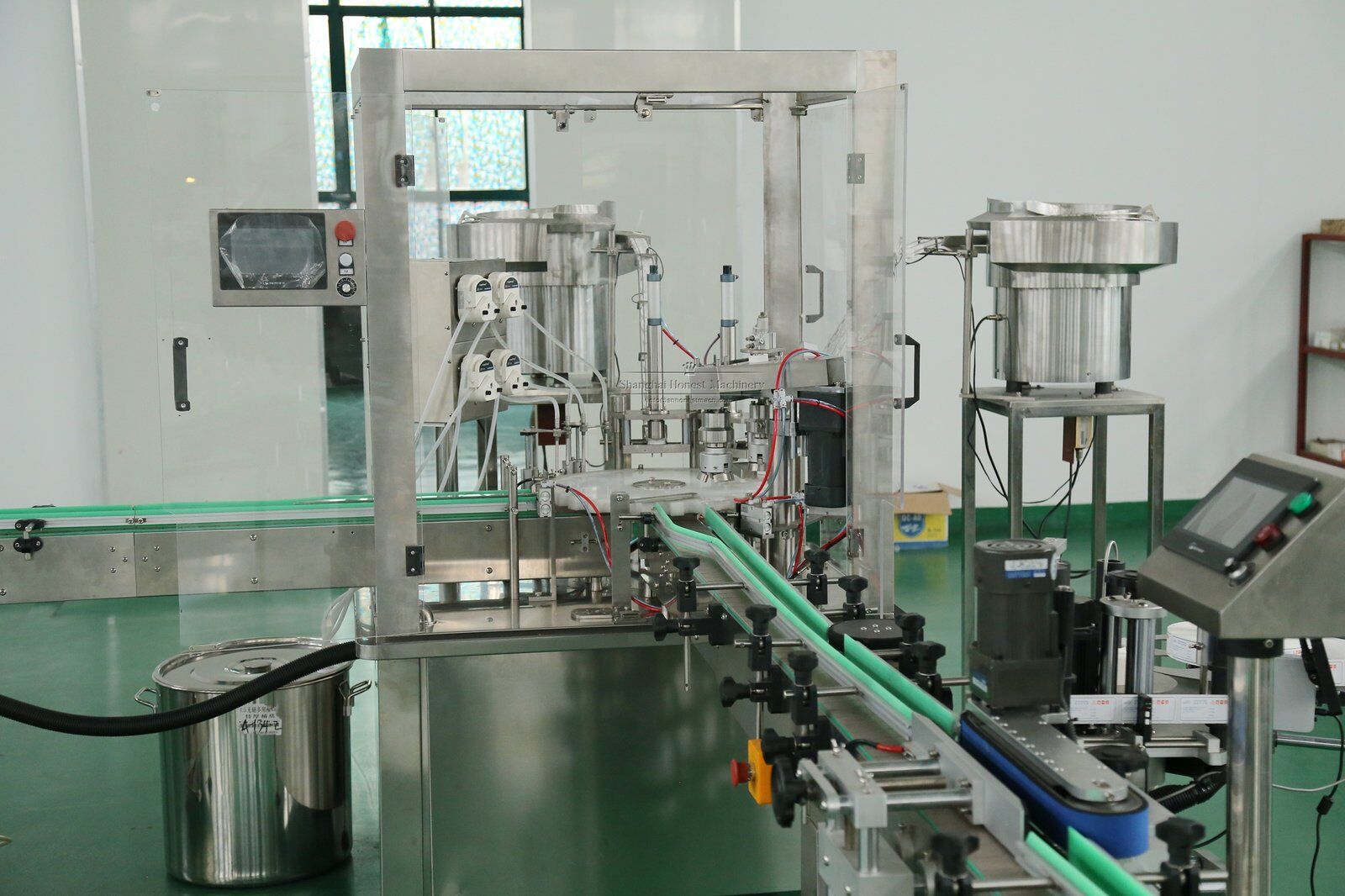

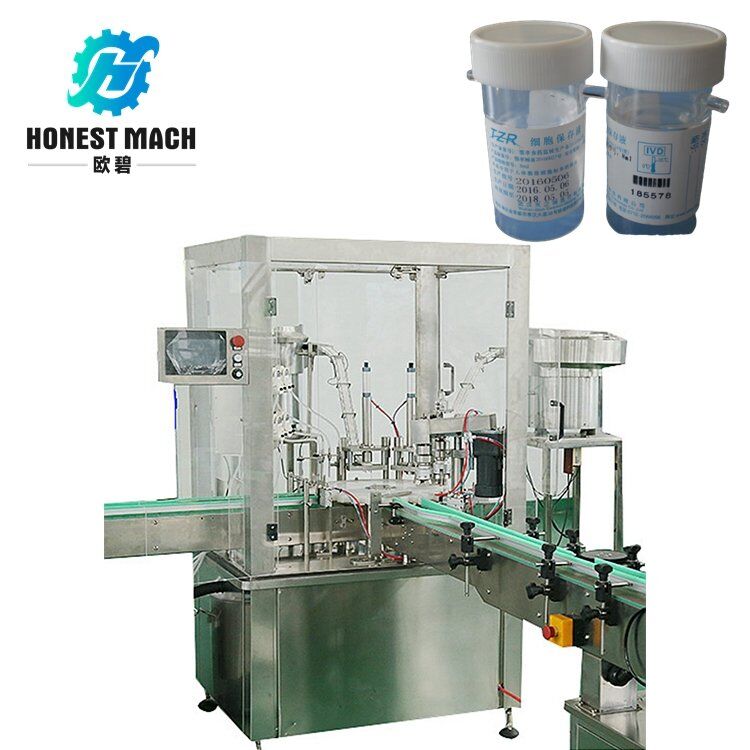

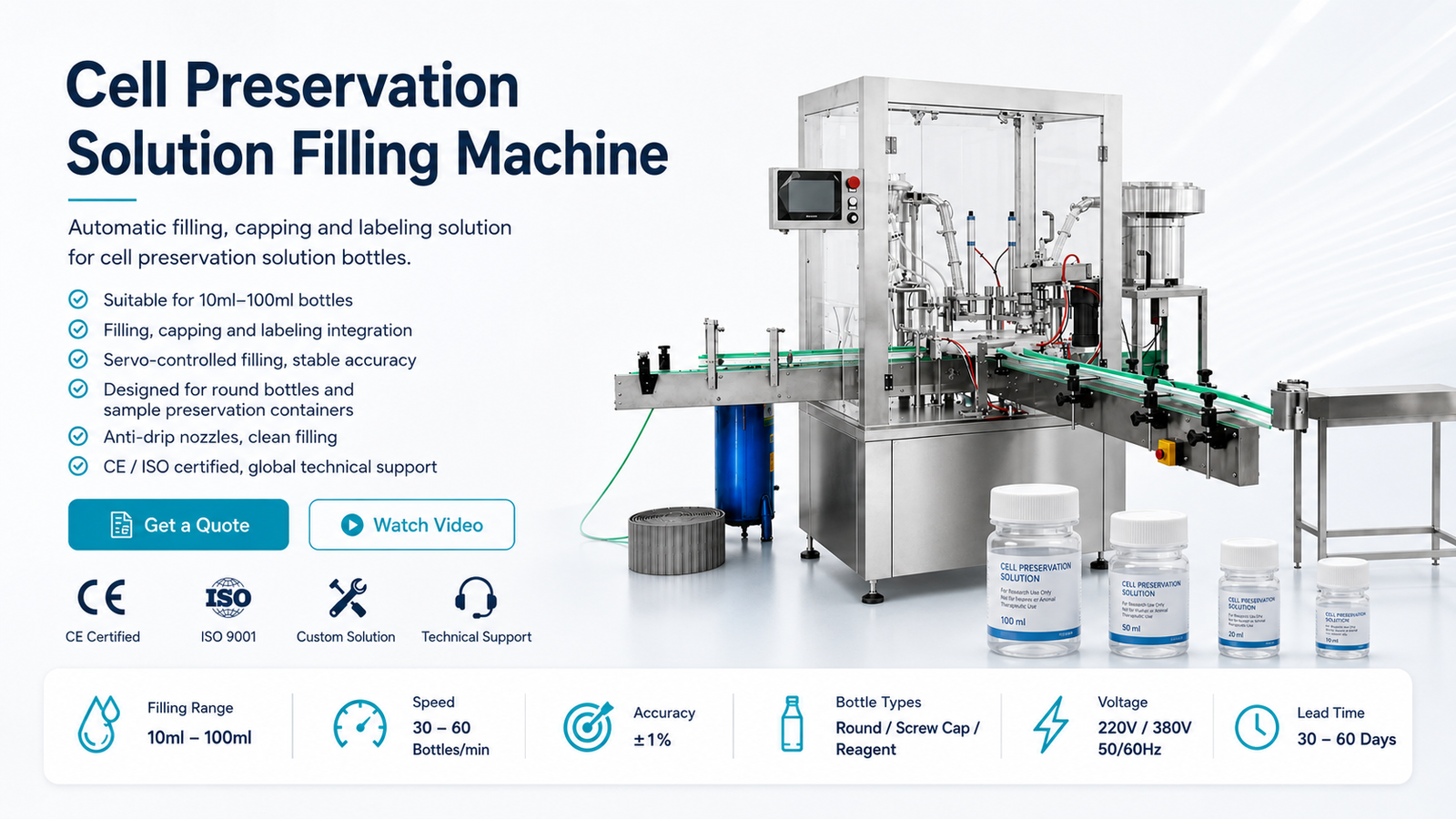

Automatic Cell Preservation Solution Filling Machine
What you can get from us?
Parameter:
- Model: Automatic Cell Preservation Solution Filling Machine
- Filling volume: 5-120ml(customized)

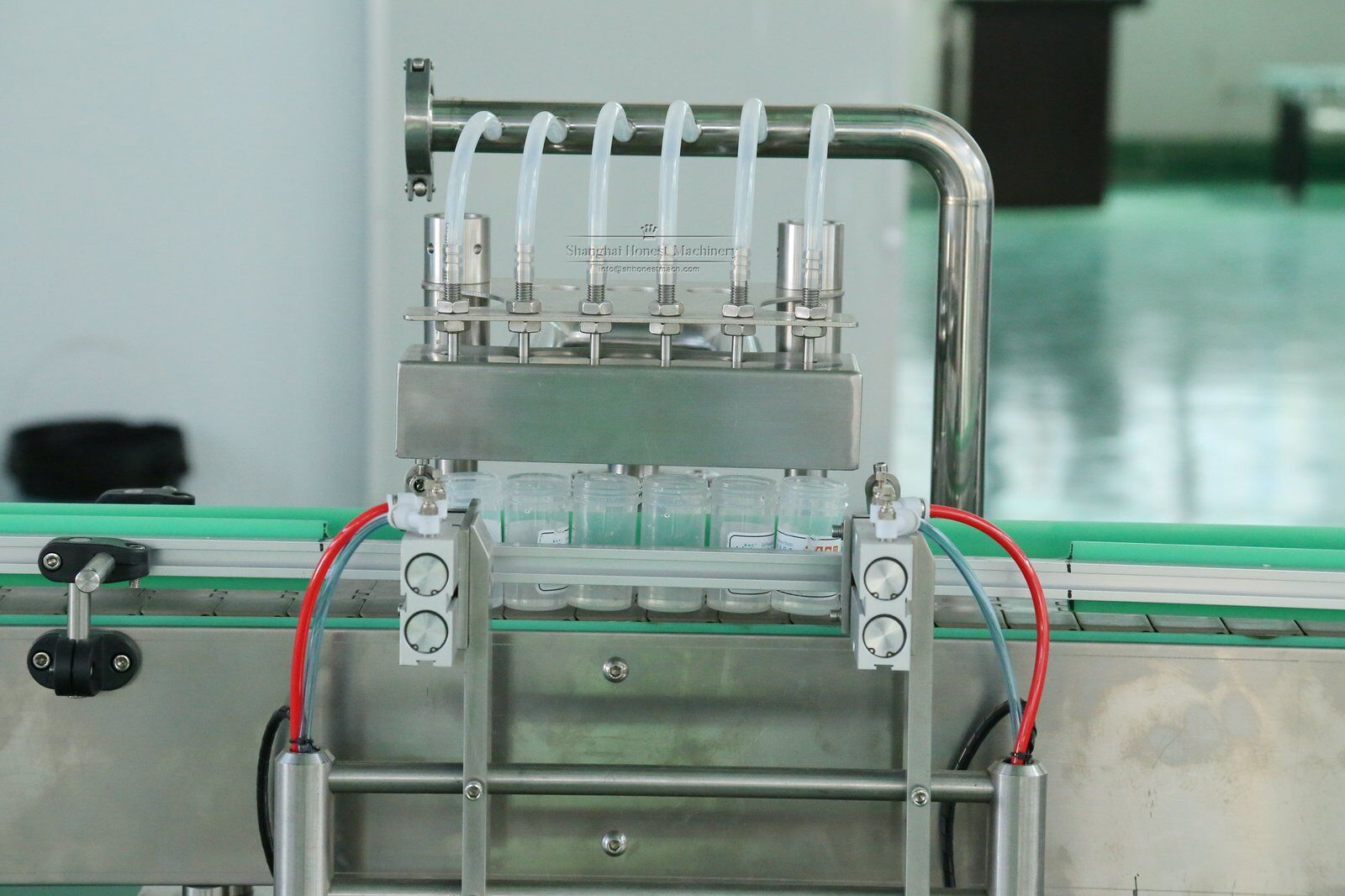

- Filling nozzles: 1-8 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method:With peristaltic pump and piston pump filling solution for your optional
- Filling accuracy: ±0.5%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:

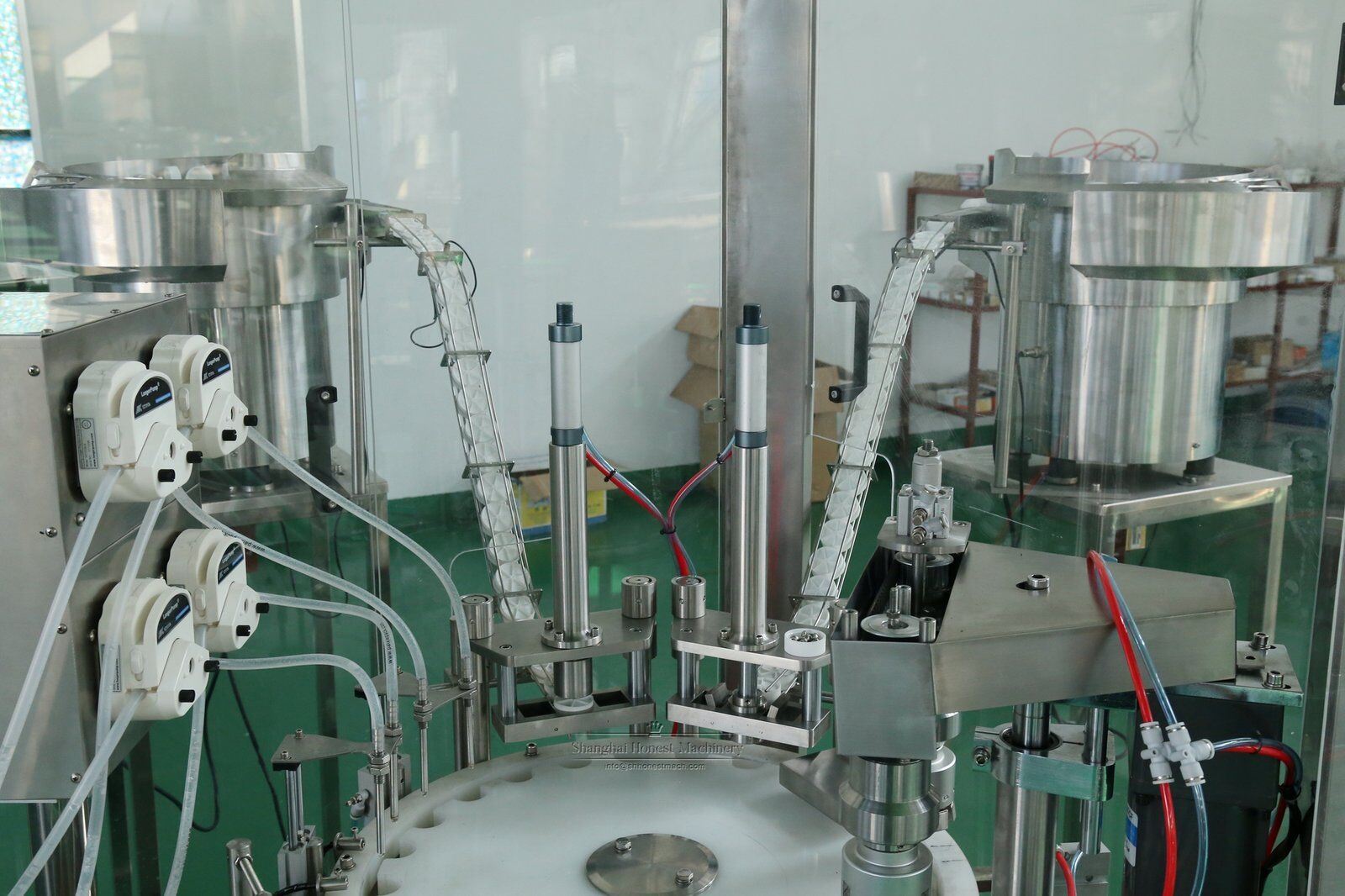

1.Adopt peristaltic pumps for filling, which are mainly suitable for low-viscosity materials and filling multiple flavors. They can quickly switch and clean electronic cigarette materials for different flavors within 5 minutes.
2.Adopt piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter bottles within 30 minutes
The machine can choose to use servo control to automatically adjust the filling volume, making it convenient for customer operation
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What You Get With Our Cell Preservation Solution Filling Machine
Related Products:
FAQ:
This machine is suitable for cell preservation solution, diagnostic liquids, sample preservation liquids, reagent-type liquids and other small-dose medical or laboratory liquid products. The final configuration depends on the liquid properties, bottle design and production requirement.
The machine is commonly designed for bottle sizes such as 10ml, 20ml, 30ml, 50ml and 100ml. It can also be customized based on the actual bottle samples and cap structures provided by the customer.
Yes. The machine can be configured to run round bottles, screw-cap bottles, reagent bottles and sample preservation containers. Different bottle dimensions and closures may require dedicated change parts or format adjustments.
The machine uses a stable dosing system and controlled filling process to help maintain consistent volume. Under suitable production conditions, filling accuracy can generally reach around ±1%, depending on bottle consistency, fill volume and liquid characteristics.
Yes. The machine can be used as a standalone unit or connected with bottle feeding, capping, labeling and downstream packaging equipment. This allows customers to build a more complete production solution based on their capacity and factory layout.
