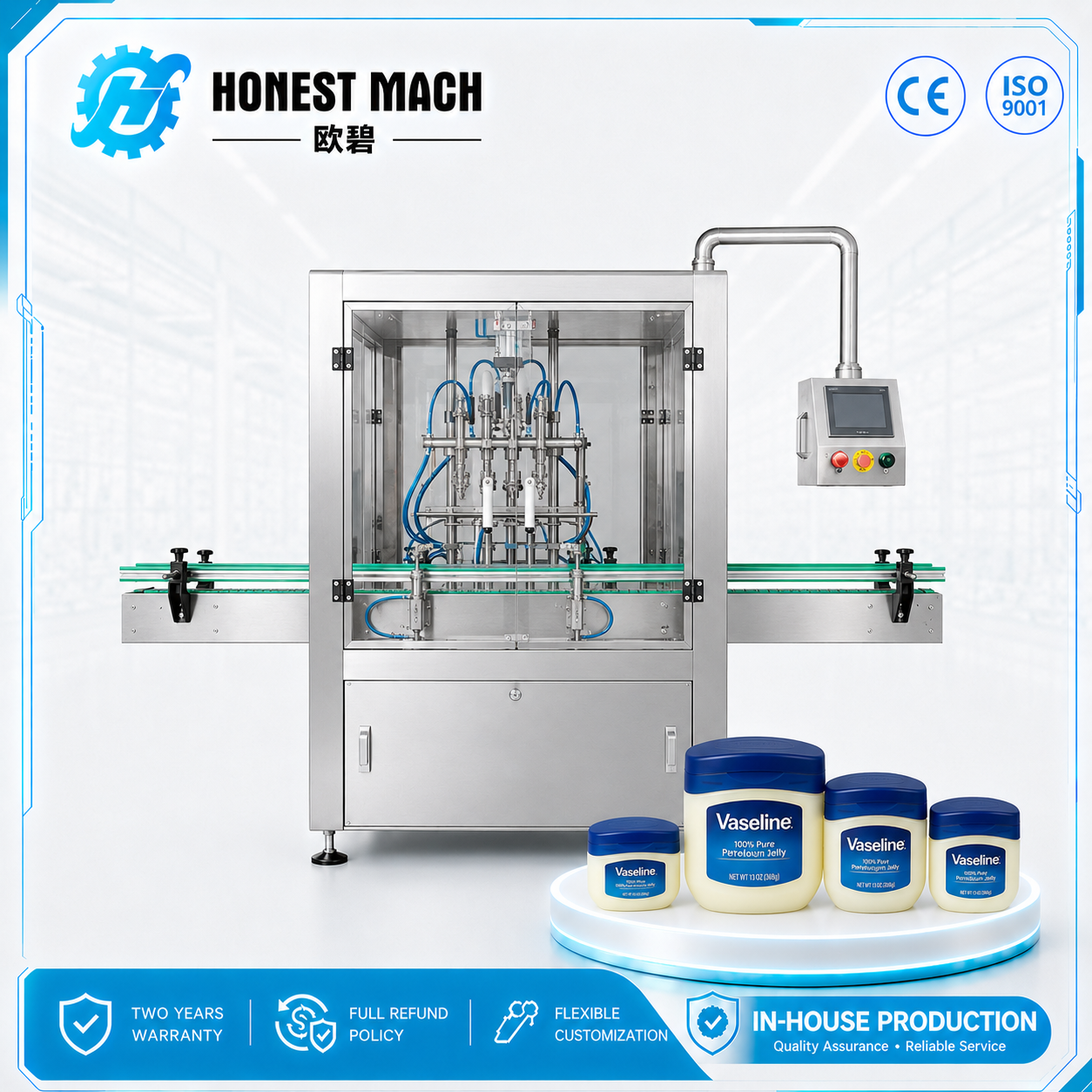

Automatic vaseline filling machine

Hot filling solution for petroleum jelly, ointment, balm, cream and other high-viscosity paste products

Our automatic vaseline filling machine is designed for filling thick and heat-sensitive paste products such as petroleum jelly, cosmetic cream, ointment, balm, wax, gel and similar viscous materials into plastic bottles, glass jars, aluminum tins or small containers.

The filling volume, nozzle quantity, conveyor length, capping system and labeling machine can be customized according to your container size, product viscosity and required production capacity. It is suitable for cosmetic, personal care, pharmaceutical, daily chemical and specialty paste packaging projects.

Key Features:
  • Suitable for vaseline, petroleum jelly, ointment, balm, cream, wax, gel and other thick paste products
  • Heating and mixing system available to keep high-viscosity material in good flow condition
  • Piston filling system for stable and accurate filling of bottles, jars, tins and small containers

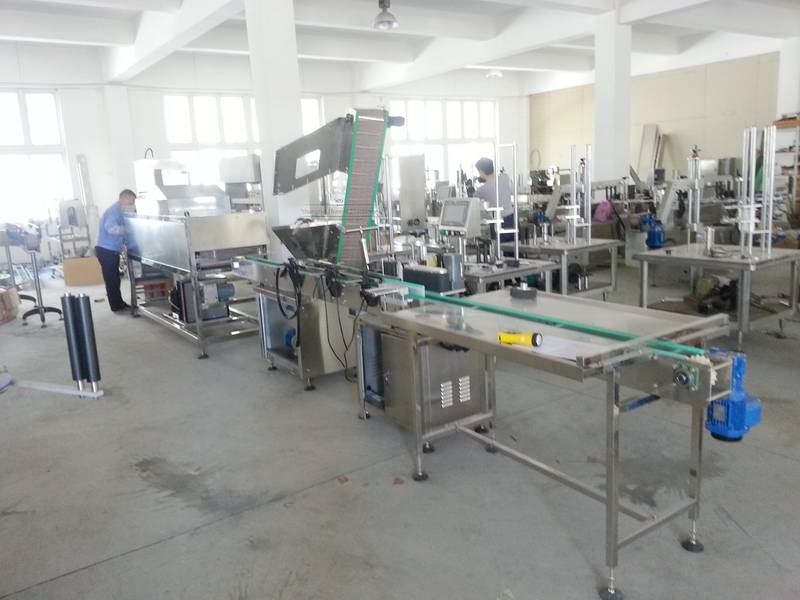

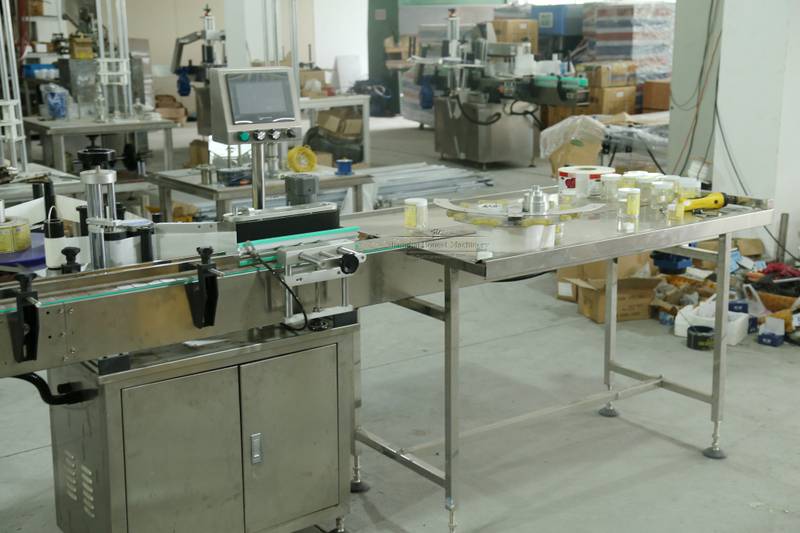

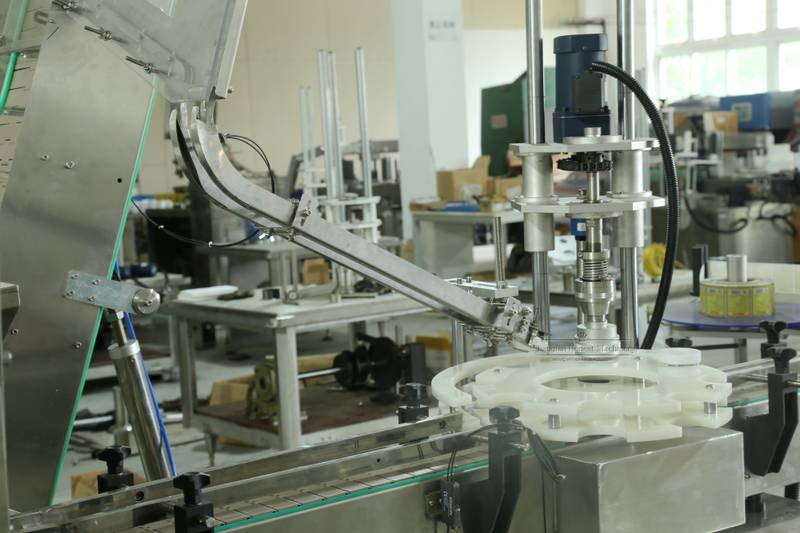

  • Optional automatic capping, sealing, cooling, labeling and conveyor system for a complete filling line
  • Custom design available according to bottle size, filling volume, production speed and factory layout

Send us your container photos, filling volume and production speed. We will recommend a suitable vaseline filling machine solution for your product.

Facebook
LinkedIn
Pinterest
WhatsApp
automatic-vaseline-filling-machine
automatic-vaseline-filling-machine-features
vaseline-filling-machine-applications-containers

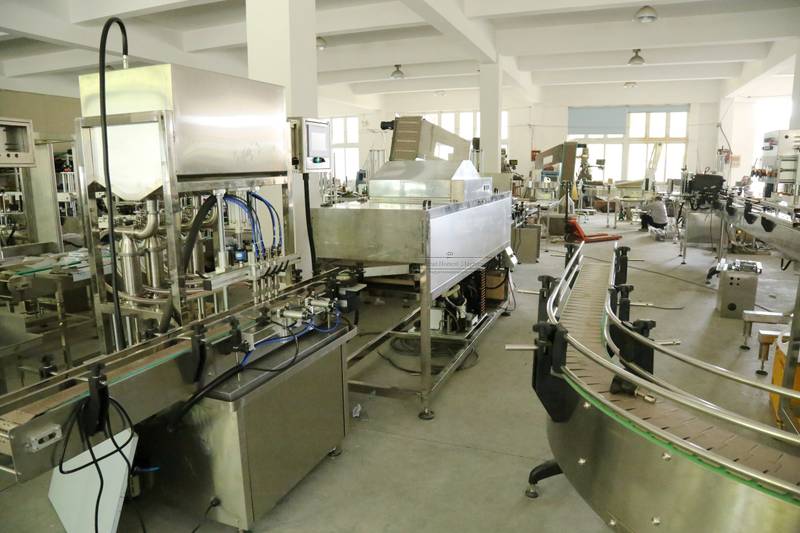

Automatic Vaseline Jar Filling Machine

Working video:

What we can offer you:

  • 100% Refund Policy

    If the quality is poor or it can’t run your product, we guarantee a 100% full refund for your peace of mind

  • Two years warranty

    Any equipment purchased from us comes with a two-year warranty.we provide free replacements and cover shipping for parts under 10kg damaged due to quality issues, not deliberate damage

  • Attentive after-sales service

    We promise: all equipment purchased from us is backed by comprehensive after-sales service and lifetime benefits.

  • Timely production and delivery

    We oversee the entire process from receiving samples to design and production, providing timely photos and videos to showcase the entire process to ensure the efficiency of equipment production and timely delivery

Parameter:

  • Model: Automatic vaseline jar filling machine
  • Filling volume: 50-2000ml(customized)
  • Filling nozzles: 1-12 nozzles for your optional(customized)
  • Filling speed: 10-100BPM for your  optional(customized)
  • Filling method: Piston pump for filling with servo motor control
  • Filling accuracy: ±1%(according to product)
  • Capping rate: ≥99.99%
  • Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
  • Total dimension: 1930mm*1520mm*2010mm(customized)

Highlight:

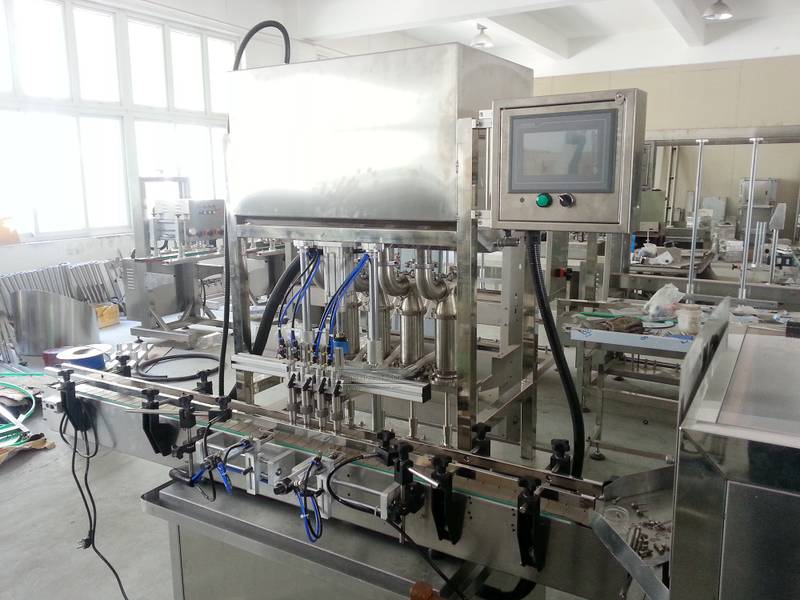

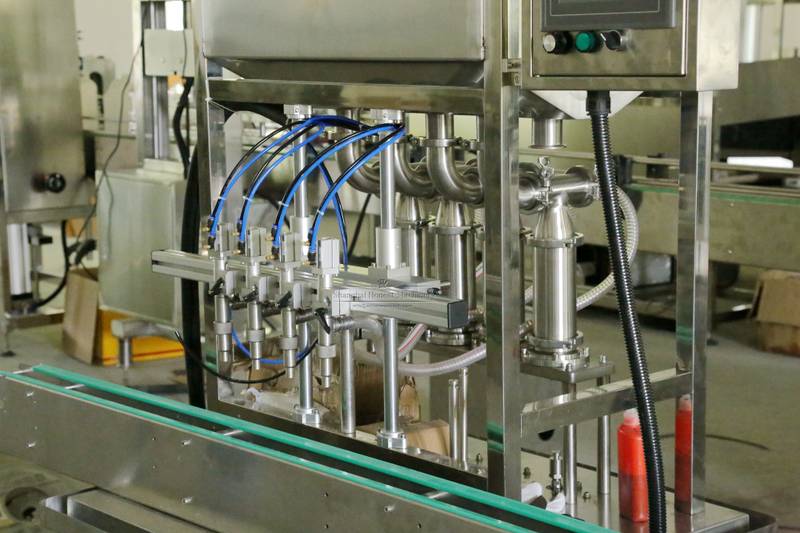

1.It use piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).

2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use

1.It can quickly change for different diameter jars

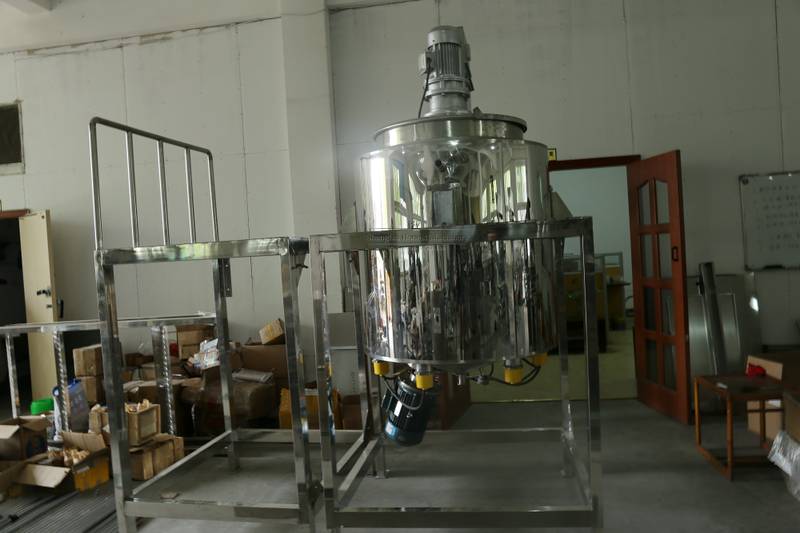

1.The hopper with mixer and it is double jacket with heating function and make it more easier to do filling for high viscosity products

2.Machine also comes with cleaning function that can do cleaning automatically after finish filling

The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use

What you can get with our vaseline filling machine :

contact_us_honest_machinery

Related Products:

FAQ:

During a temporary stop, Vaseline can begin to thicken or solidify if the product path loses too much heat. This may cause an unstable first fill, nozzle blockage or inconsistent dosing when production restarts.

For this reason, the heating design should not focus only on the hopper. Depending on the project, the hopper, product path and filling section should maintain a suitable temperature so the material remains flowable during normal short stops. Competing hot-filling systems also use heated hoppers, dosing systems and nozzles specifically to maintain product temperature throughout the filling path.

For longer shutdowns, the line should follow the recommended emptying or cleaning procedure rather than simply leaving hot Vaseline inside the filling system.

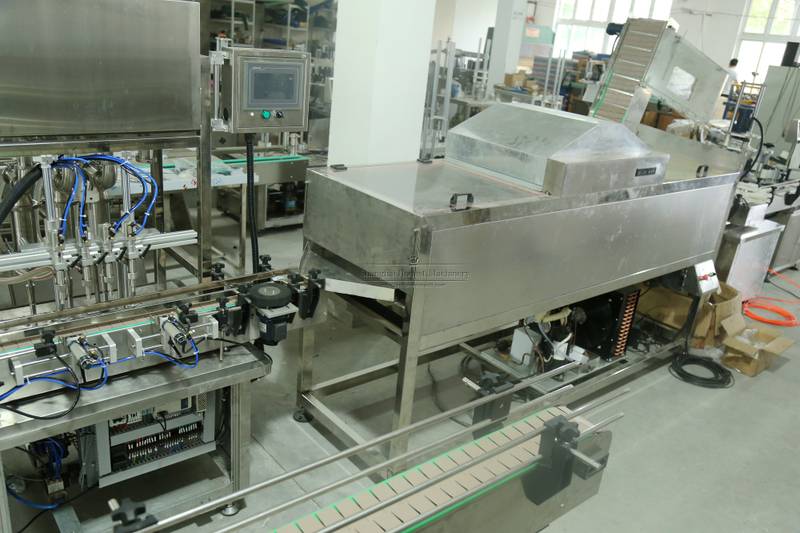

The cooling tunnel should be sized according to the filling temperature, jar size, container material, product formula and required production speed.

A small 50ml jar cools much faster than a 500ml or 1L container. If the tunnel is too short, the Vaseline may still be soft when it reaches capping, labeling or case packing. If cooling is unnecessarily long, the line becomes larger and more expensive without adding production value.

Some commercial Vaseline hot-filling lines quote cooling times of roughly 5–15 minutes, but the actual value depends on the material, package and line speed.

For this reason, cooling capacity should be calculated together with filling capacity rather than treating the cooling tunnel as an independent accessory.

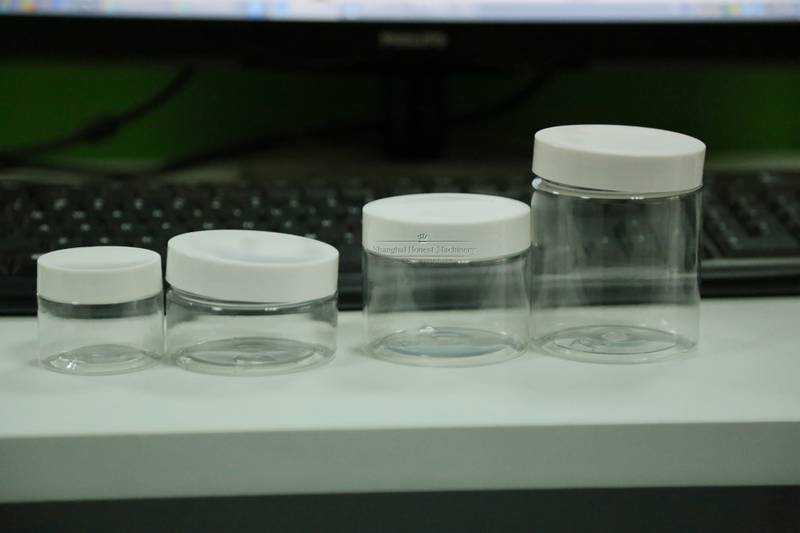

It can if the jar material is not suitable for the selected filling temperature.

Vaseline often needs to be filled while warm enough to flow smoothly, but lightweight or thin-wall plastic containers may soften, distort or lose dimensional stability if the product temperature is too high.

Before finalizing the machine, we therefore recommend confirming:

  • jar material, such as PP, PET or HDPE,
  • wall thickness,
  • maximum recommended filling temperature,
  • actual Vaseline filling temperature,
  • and cooling method.

The objective is to use the lowest practical filling temperature that still provides stable filling, rather than heating the product more than necessary.

Actual customer jars should be included in FAT when thermal deformation is a concern.

For Vaseline packaging, contamination around the jar mouth can create problems downstream even when the filling weight itself is correct.

Product on the rim may affect:

  • induction foil sealing,
  • liner seating,
  • cap tightening,
  • label appearance,
  • and final package cleanliness.

The filling nozzle therefore needs a clean shut-off action and correct positioning over the jar opening. Servo filling parameters can also be adjusted so the final part of the filling cycle is controlled more gently.

If your package uses an induction foil seal, we recommend testing the complete process:

Filling → Cooling / Stabilizing → Foil Placement or Liner → Capping → Induction Sealing

rather than validating only the filling machine.

Yes. For customers who need tighter production control, an inline checkweigher can be added after filling or after the product has stabilized.

This is useful because the filling machine controls the dosing process, while the checkweigher provides an independent verification of the finished package weight.

Depending on the project, the system can be designed to:

  • check every jar,
  • reject underweight or overweight products,
  • record production data,
  • and help operators detect gradual filling deviation.

For premium cosmetic or pharmaceutical-style petroleum jelly products, this additional QC step can be more useful than relying only on periodic manual weighing.

Your standard machine uses servo-controlled piston filling with stated accuracy of approximately ±1% depending on the product, while an external checkweigher can provide an additional downstream quality-control layer.
