Automatic tin can tomato paste filling machine

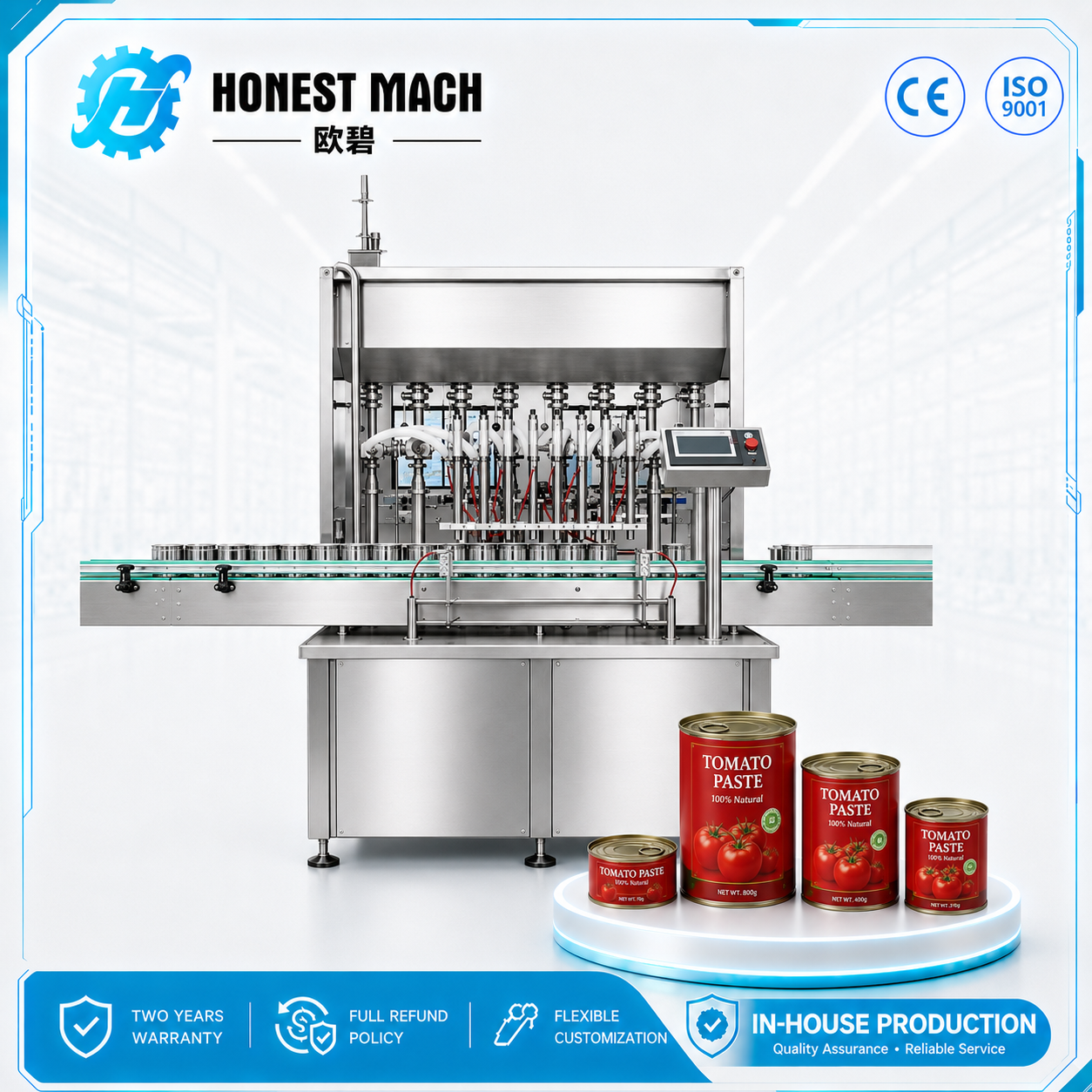

Automatic Tomato Paste Tin Can Filling Machine
Product Description:
This automatic tomato paste tin can filling machine is built for filling thick sauces such as tomato paste, tomato sauce, ketchup, chili sauce, jam and other viscous food products into tin cans or metal cans. It can be configured with can feeding, piston filling, lid placing, can sealing, coding and labeling to form a complete tomato paste can filling line.
Key Features:
- Suitable for tin cans, metal cans and food cans with different diameters and filling volumes.
- Servo-controlled piston filling system for thick sauce and paste products.
- Optional mixing hopper and feeding pump to keep tomato paste or ketchup flowing smoothly.
- Can be connected with can sealing machine, labeling machine, coding machine and packing line.
- Custom configuration available for small, medium and large canned food production.
Send us your can size, filling volume and sauce viscosity to get a suitable tomato paste filling and sealing line configuration.

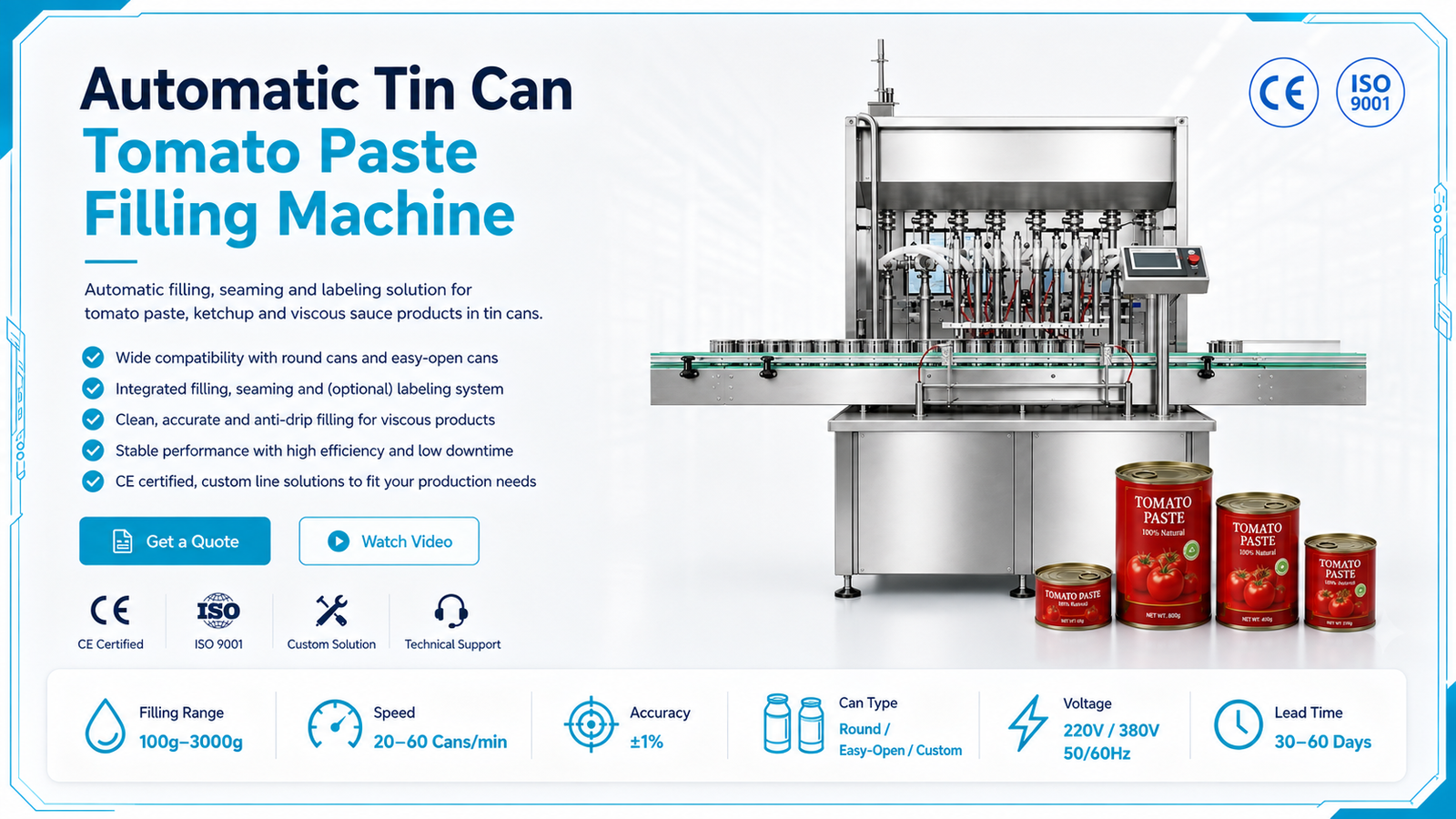

Automatic Tin Can Tomato Paste Filling Machine Line
Working video:
What we can offer you?
Parameter:
- Model: Automatic tin can tomato paste filling machine
- Filling volume: 50-2000ml(customized)
- Filling nozzles: 1-12 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 1950mm*1650mm*2050mm(customized)
Highlight:
1.It use piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).
2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter tin cans
1.The hopper with mixer and it is double jacket with heating function and make it more easier to do filling for tomato paste products
2.Machine also comes with cleaning function that can do cleaning automatically after finish filling
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our tin can tomato paste filling machine
Related Products:
FAQ:
The machine is suitable for tomato paste, ketchup, tomato sauce, chili sauce and other viscous or semi-viscous sauce products packed in metal cans.
If your product has a different viscosity or contains small particles, the filling system, nozzle design and product-contact parts can be customized according to the actual product characteristics.
Yes. The machine can be customized for different can diameters and heights, including standard round cans, small cans and easy-open cans.
For the most accurate machine design, customers are recommended to provide can samples or detailed drawings of the can body, lid type and target filling volume before production.
The machine can be configured as a complete line with filling, can seaming and optional labeling functions.
This is especially important for tomato paste and sauce products, because stable sealing performance directly affects product shelf life, transport safety and final package quality. The final configuration depends on your can type, lid structure and output requirement.
Yes. The machine is designed for convenient cleaning and practical daily maintenance.
It can also be adjusted for different can formats with relatively simple changeover procedures. If you plan to run several can sizes or more than one sauce product, the machine can be customized to reduce changeover time and improve production efficiency.
To recommend the right solution, it is best to provide the following details:
- Product name and viscosity
- Filling weight or volume
- Can diameter and height
- Lid type
- Required production speed
- Whether you need can seaming, labeling or coding
- Whether your product contains particles or requires heating
If possible, sending actual product and can samples is highly recommended. This helps confirm filling accuracy, product flow, can handling, sealing compatibility and the complete line design before production.
