Sanitizer filling machine

Automatic filling, capping and labeling solution for sanitizer, alcohol gel, disinfectant and personal care liquid products.

This automatic sanitizer filling machine is built for liquid sanitizer, alcohol gel, disinfectant, antibacterial liquid and similar daily chemical products. It can be used as a single bottle filling machine or connected with capping, labeling and bottle feeding equipment to form a complete hand sanitizer filling line.

Key Features:
  • Suitable for sanitizer and disinfectant products
    Works with hand sanitizer, sanitizer gel, alcohol liquid, disinfectant, antibacterial liquid, hand wash and daily chemical products.
  • Flexible bottle and cap compatibility
    Can be adjusted for round, flat or square bottles with pump caps, screw caps, flip-top caps or press caps.
  • Cleaner and more stable filling process
    Optional anti-drip filling nozzles, PLC touch screen control and stainless steel contact parts help keep production clean and easy to operate.

Tell us your bottle size, filling volume, cap type and target speed. we will recommend a suitable complete sanitizer filling line for your project.

Facebook
LinkedIn
Pinterest
WhatsApp
automatic-sanitizer-filling-machine-hero
why-choose-our-sanitizer-filling-machine
sanitizer-filling-machine-applications-and-suitable-bottles

Sanitizer Filling Machine Line For 5L Bottle

Working video:

What we can offer you?

  • 100% Refund Policy

    If the quality is poor or it can’t run your product, we guarantee a 100% full refund for your peace of mind

  • Two years warranty

    Any equipment purchased from us comes with a two-year warranty.we provide free replacements and cover shipping for parts under 10kg damaged due to quality issues, not deliberate damage

  • Attentive after-sales service

    We promise: all equipment purchased from us is backed by comprehensive after-sales service and lifetime benefits.

  • Timely production and delivery

    We oversee the entire process from receiving samples to design and production, providing timely photos and videos to showcase the entire process to ensure the efficiency of equipment production and timely delivery

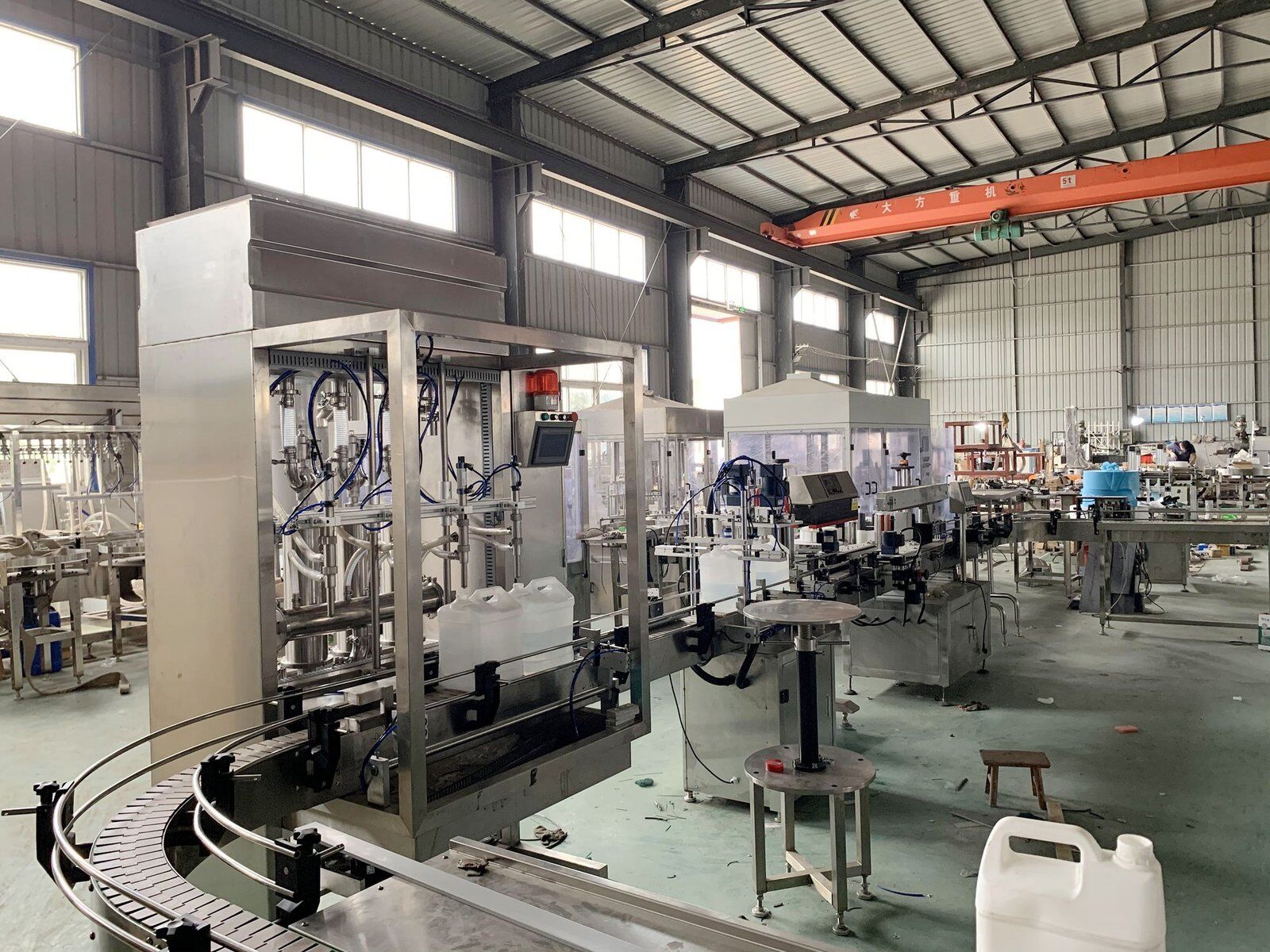

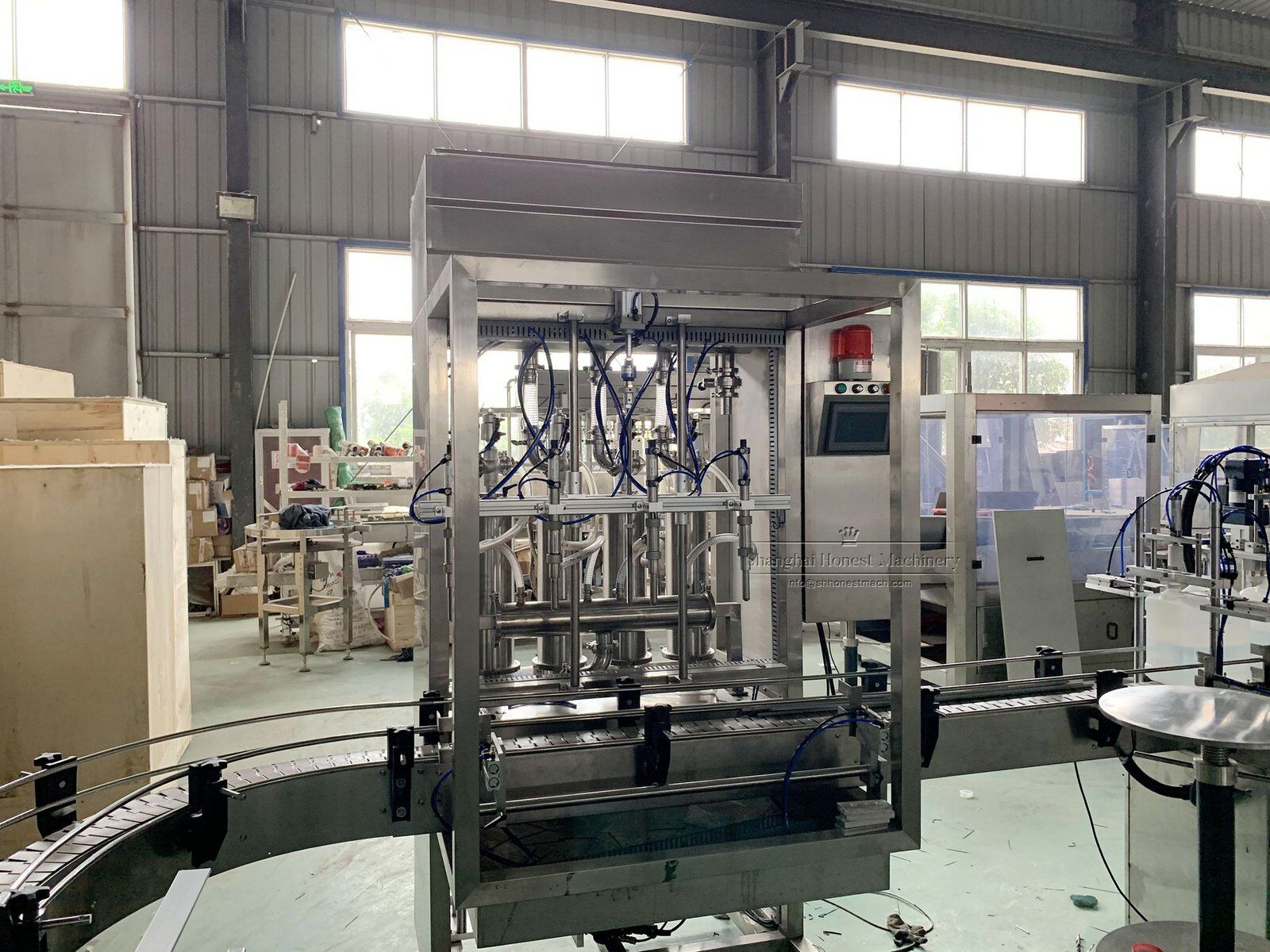

Automatic Sanitizer Filling Machine Line

Parameter:

  • Model: Automatic sanitizer filling machine for 5L bottle
  • Filling volume: 500-5000ml(customized)
  • Filling nozzles: 1-12 nozzles for your optional(customized)
  • Filling speed: 10-100BPM for your  optional(customized)
  • Filling method: Piston pump for filling with servo motor control
  • Filling accuracy: ±1%(according to product)
  • Capping rate: ≥99.99%
  • Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
  • Total dimension: 1980mm*1570mm*2070mm(customized)

Highlight:

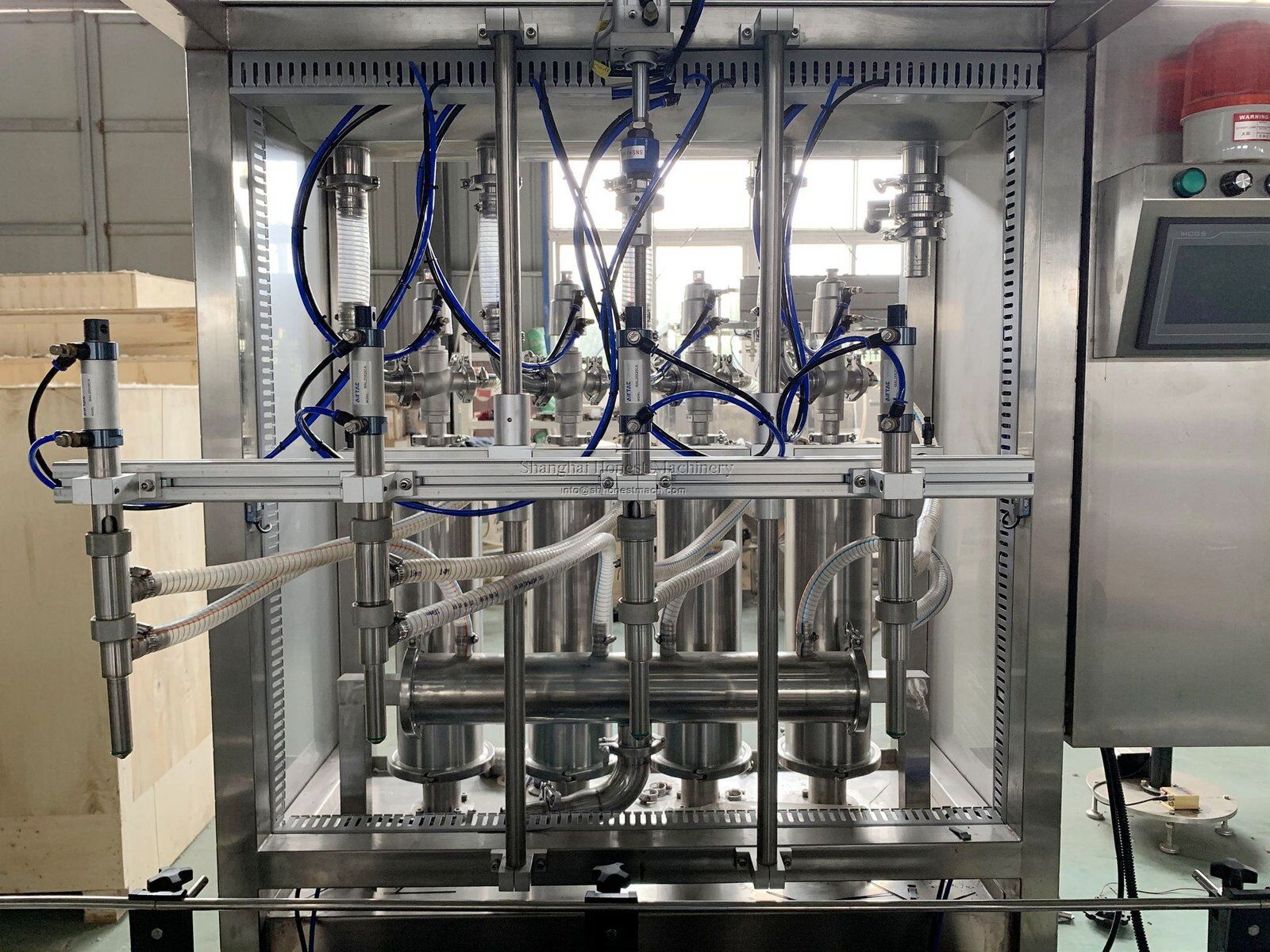

1.It use piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity).

2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use

1.It can quickly change for different diameter bottes

1.The hopper with mixer and it is double jacket with heating function and make it more easier to do filling for high viscosity products

2.Machine also comes with cleaning function that can do cleaning automatically after finish filling

The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use

What you can get from our sanitizer filling machine

contact_us_honest_machinery

Related Products:

FAQ:

Yes, the machine can be configured for both low-viscosity alcohol sanitizer and higher-viscosity gel sanitizer, but the final filling solution should be selected according to your actual product viscosity, foaming condition and filling volume. For thin alcohol sanitizer, the machine can be set to ensure smooth flow and stable filling. For thicker gel sanitizer, the filling system can be adjusted for more accurate and stable dosing. If you plan to fill multiple products on one machine, it is best to share the product samples or viscosity details in advance so the right filling system and nozzle structure can be confirmed.

For sanitizer products, especially alcohol-based liquids, clean filling is very important. We can use anti-drip filling nozzles and optimize the filling speed, nozzle diving action and return-suction setting to reduce dripping and splashing. If the product tends to foam, we can also adjust the filling rhythm and nozzle position to make the filling process more stable. This helps keep the bottle neck clean and improves the appearance of the finished product, which is especially important for export packaging and retail presentation.

Yes, the machine can be used for high-alcohol sanitizer, but if your product contains a high percentage of alcohol, we recommend confirming this clearly at the quotation stage. Based on the production environment and local safety requirements, safer configurations can be considered, such as more suitable electrical arrangements, better enclosure protection and other customized options for improved operating safety. For customers filling flammable or volatile sanitizer products, it is always better to discuss the product formula and workshop condition in advance so the most suitable configuration can be recommended.

The material-contact parts are normally made from stainless steel suitable for liquid packaging applications, and the sealing materials can also be selected according to the sanitizer formula. This is important because different products may contain alcohol, fragrance, chlorhexidine, hydrogen peroxide or other active ingredients. Before production, we recommend confirming the main product ingredients with us so we can check compatibility and choose the appropriate contact materials and seals. This helps improve machine durability and reduces the risk of leakage, corrosion or seal wear during long-term use.

The machine is designed for practical cleaning and convenient changeover. If you are running different bottle sizes, the guide rails, filling parameters and some positioning parts can be adjusted based on the bottle shape and volume. For customers producing several SKUs, this helps reduce downtime during product changeover. In addition, if you switch between different sanitizer formulas, the machine can be cleaned after filling to keep the pipeline and filling section cleaner for the next run. If you have frequent SKU changes, we can also recommend a configuration that makes daily operation easier for your production team.
