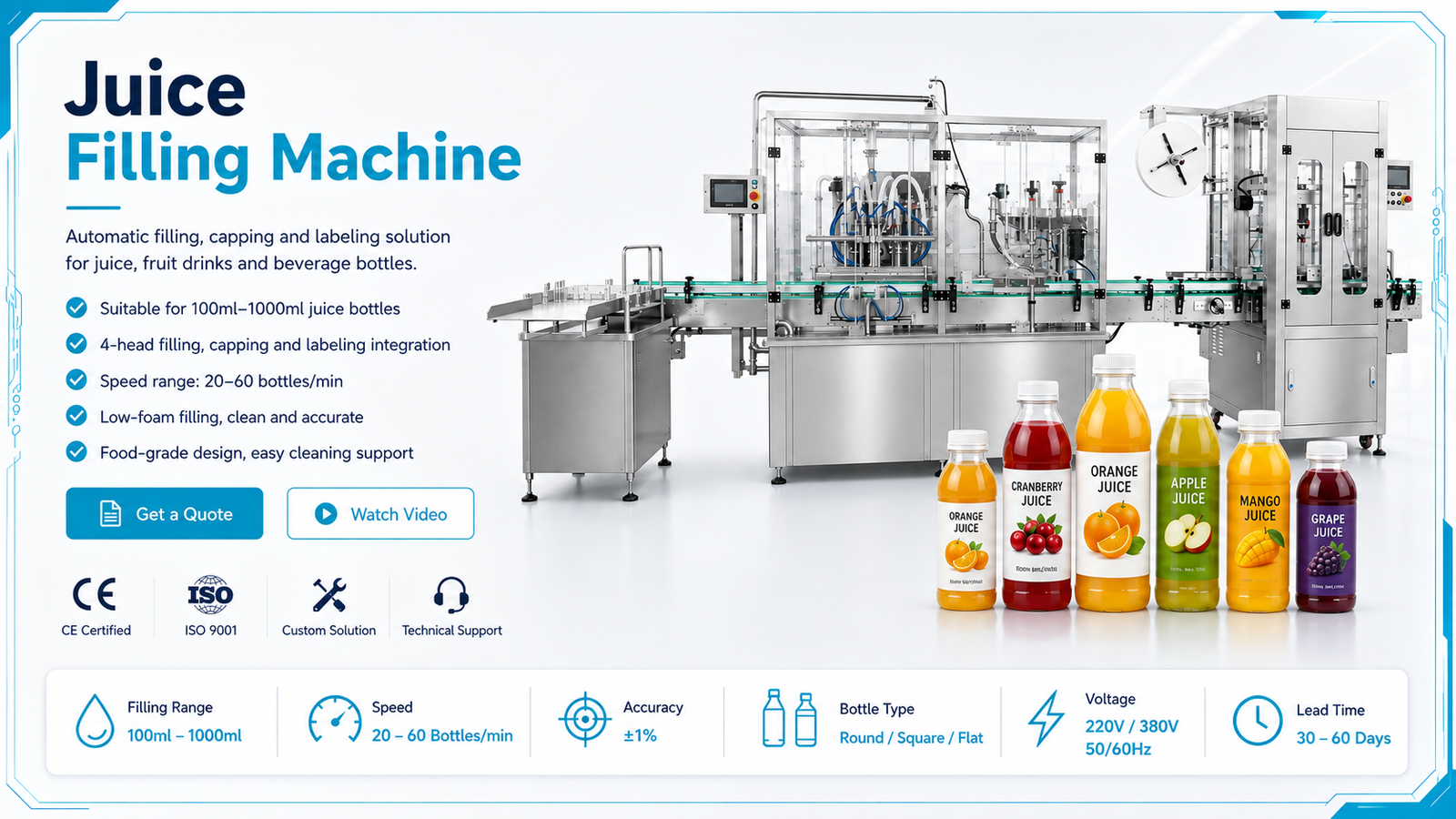

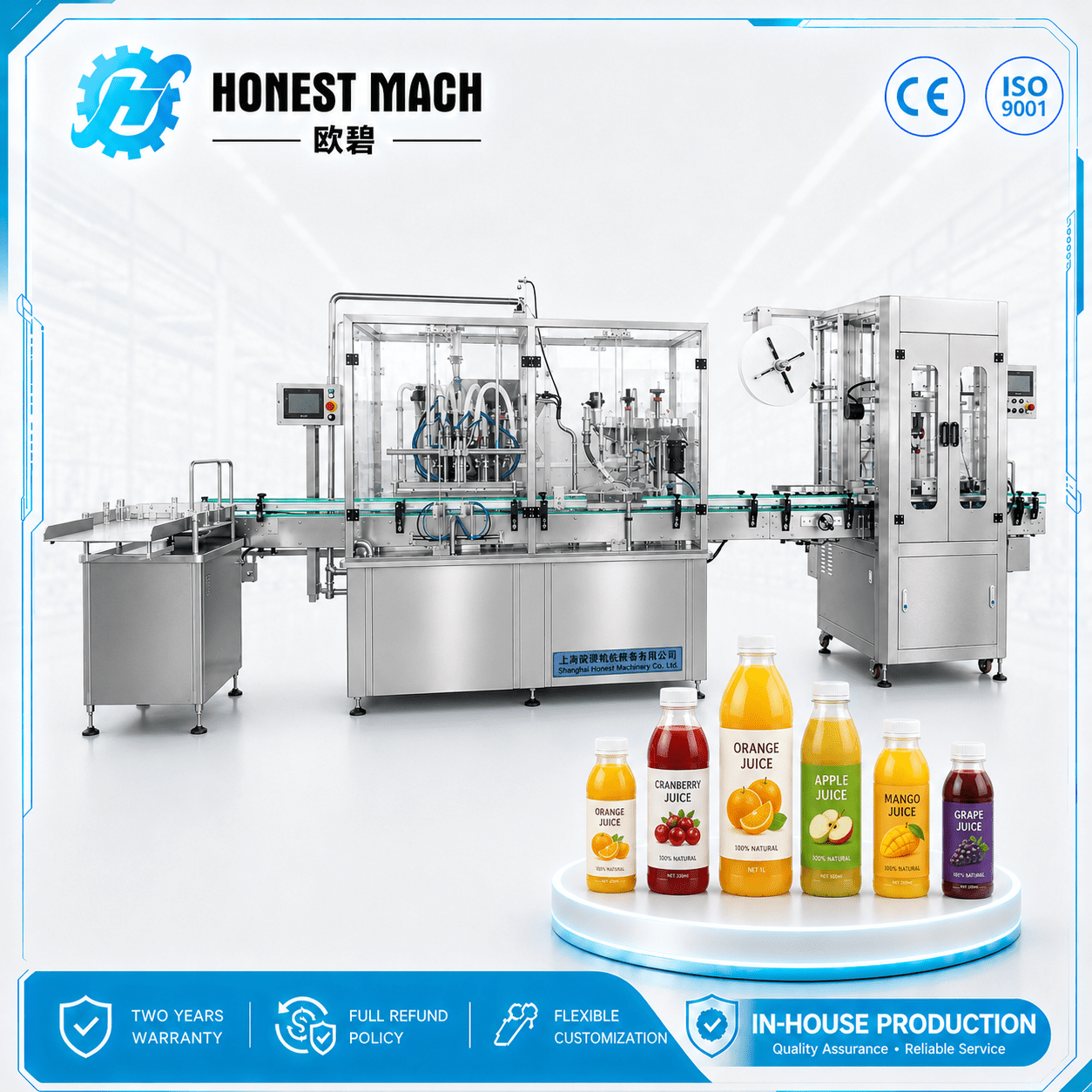

Automatic 4 heads juice filling machine
Automatic Juice Filling Machine for PET and Glass Bottle Beverage Production
This automatic 4 heads juice filling machine is designed for accurate filling and packaging of juice, fruit juice, flavored drinks, syrup drinks, coconut water, tea drinks and other non-carbonated liquid products. It is suitable for PET bottles, glass bottles and other straight or round containers used in small and medium beverage production.
The 4-head filling system helps improve production efficiency while keeping stable filling volume and reducing liquid waste. According to your juice type, bottle size and production requirement, the machine can be customized with piston filling, flowmeter filling or servo-controlled filling system. For products with pulp or higher viscosity, the filling nozzles and product contact parts can also be adjusted to make filling smoother and cleaner.
Key Advantages:
- Accurate 4-Head Filling: Designed for stable bottle filling volume, less dripping and better production consistency.
- Flexible Bottle Compatibility: Suitable for PET bottles, glass bottles, round bottles and custom beverage containers.
- Customized for Your Juice Product: Available for normal-temperature filling or hot filling, depending on product formula, bottle material and shelf-life requirements.
Working video filling for big juice bottle:
Working video of same filling machine line change filling for small bottle:
What we can offer you?
Parameter:
- Model: Automatic juice filling machine
- Filling volume: 50-2000ml(customized)
- Filling nozzles: 1-12 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method: Piston pump for filling with servo motor control
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:
1.It use piston pumps for filling, suitable for materials of different viscosities.
2.With servo motor control, it can automatically adjust the filling volume, making it convenient for customer operation and use
1.It can quickly change for different diameter bottles within 30 minutes
1.Machine comes with cleaning function that can do cleaning automatically after finish filling
2.No bottle no filling and no cap no capping
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What you can get with our automatic 4 heads juice filling machine
Related Products:
FAQ:
Yes, it can be configured for juice with light pulp or small fruit particles, but this must be confirmed before production. The filling method, valve structure and material flow path should match the product viscosity and particle size. If your juice contains pulp, fibers or fruit bits, it is best to provide sample details so the correct filling solution can be selected.
The machine can be designed for normal-temperature filling or hot filling, depending on your juice process. If your product requires hot filling, the equipment structure, sealing parts and bottle handling design should be matched to the filling temperature. Buyers should confirm product temperature, bottle material and output target before final quotation.
Foam control depends on the filling principle and nozzle design. For juice and fruit drinks, the machine can use suitable nozzles and controlled filling speed to reduce splashing and foam generation. This helps improve filling accuracy, keeps bottle necks cleaner and supports more stable capping performance.
Yes. This juice filling machine can be supplied as a complete packaging line. It can be matched with bottle rinsing, cap feeding, capping, labeling, inkjet coding and other downstream equipment according to your project requirements. This is especially useful for beverage factories that want one coordinated line instead of buying separate standalone machines.
To get an accurate quotation, buyers should provide the bottle size range, bottle shape, cap type, juice type, whether the product contains pulp, filling temperature, target speed and voltage requirement. If labeling is needed, label size and bottle photos are also helpful. The more complete the information is, the easier it is to recommend the right configuration and avoid a mismatched solution.
