10ml plastic dropper&30ml glass dropper bottle e-cig oil filling machine

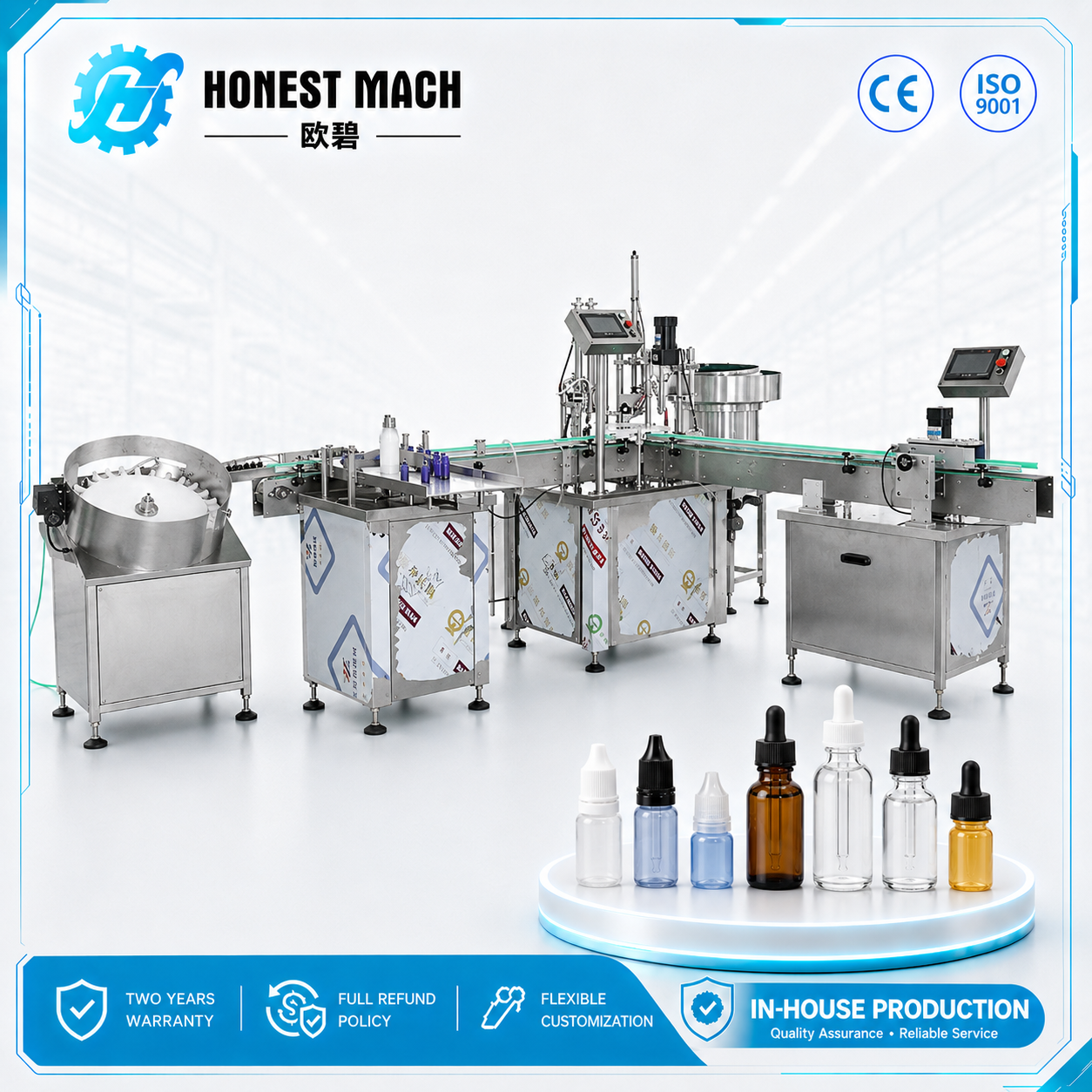

Automatic E-Liquid Filling Machine for 10ml Plastic & 30ml Glass Dropper Bottles
Product Description:
This automatic e-liquid filling machine is built for small bottle packaging lines used in vape juice, e-juice, CBD oil, essential oil and tincture production. It supports 10ml plastic dropper bottles, 30ml glass dropper bottles, unicorn bottles and other small containers.the line can be customized with automatic bottle feeding, liquid filling, inner plug inserting, cap placing, screw capping, labeling and date coding. With PLC touch-screen control, adjustable filling volume and flexible bottle changeover, it helps manufacturers improve filling accuracy, reduce manual labor and produce clean, consistent, retail-ready bottles.
Key Features:
1.Accurate Small-Dose Filling
Designed for small-volume bottles such as 10ml, 15ml, 30ml, 50ml and 100ml, helping maintain stable filling results for e-liquid and vape juice production.
2.Flexible Bottle & Cap Compatibility
Suitable for plastic dropper bottles, glass dropper bottles, unicorn bottles, essential oil bottles, CBD oil bottles and child-resistant caps.
Main Applications: e-liquid, vape juice, e-juice, nicotine liquid, CBD oil, essential oil, tincture, serum and other low-to-medium viscosity liquids.
10ml Plastic Dropper Bottle&30ml Glass Dropper Bottle E-cig Oil Filling Machine Line
What you can get from us?
Parameter:
- Model: Automatic plastic and glass dropper bottle e-liquid filling machine
- Filling volume: 5-120ml(customized)
- Filling nozzles: 1-8 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method:With peristaltic pump and piston pump filling solution for your optional
- Filling accuracy: ±0.5%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:
1.Adopt peristaltic pumps for filling, which are mainly suitable for low-viscosity materials and filling multiple flavors. They can quickly switch and clean electronic cigarette materials for different flavors within 5 minutes.
2.Adopt piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity, currently popular filling method). With servo motor control, it can automatically adjust the filling quantity, making it convenient for customer operation and use
1.It can quickly change for different diameter bottles within 30 minutes
2.It can change for both glass dropper bottles and plastic dropper bottles at the same machine with 60 minutes
The machine use servo control to automatically adjust the filling volume, making it convenient for customer operation
The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What we can offer you:
FAQ:
Normally spoeaaking,we can offer 30-120BPM for your optional,the final speed depends on the filling volume, number of filling nozzles, cap type and whether the line includes automatic capping and labeling. For higher output requirements, we can increase filling heads and design a full automatic e liquid filling line to match your production plan.
A semi-automatic machine is suitable for small batches, startup production or flexible testing. A fully automatic e liquid filling machine is better for stable commercial production because it can connect bottle feeding, filling, plugging, capping, labeling and coding in one line.
The best filling system depends on your liquid viscosity, filling volume, hygiene requirement and production speed. Piston pumps are commonly used for accurate volumetric filling, peristaltic pumps reduce product contact with machine parts, and gear pumps can be considered for certain smooth liquid applications.
Yes. The filling nozzles can be designed with anti-drip structure to reduce leakage, stringing and product waste. For thicker e-liquid or oil-based products, we will adjust the nozzle type and filling parameters
Yes. The machine can be equipped with sensors to detect bottles before filling. If there is no bottle in position, the machine will not fill, which helps reduce waste and keeps the production line
