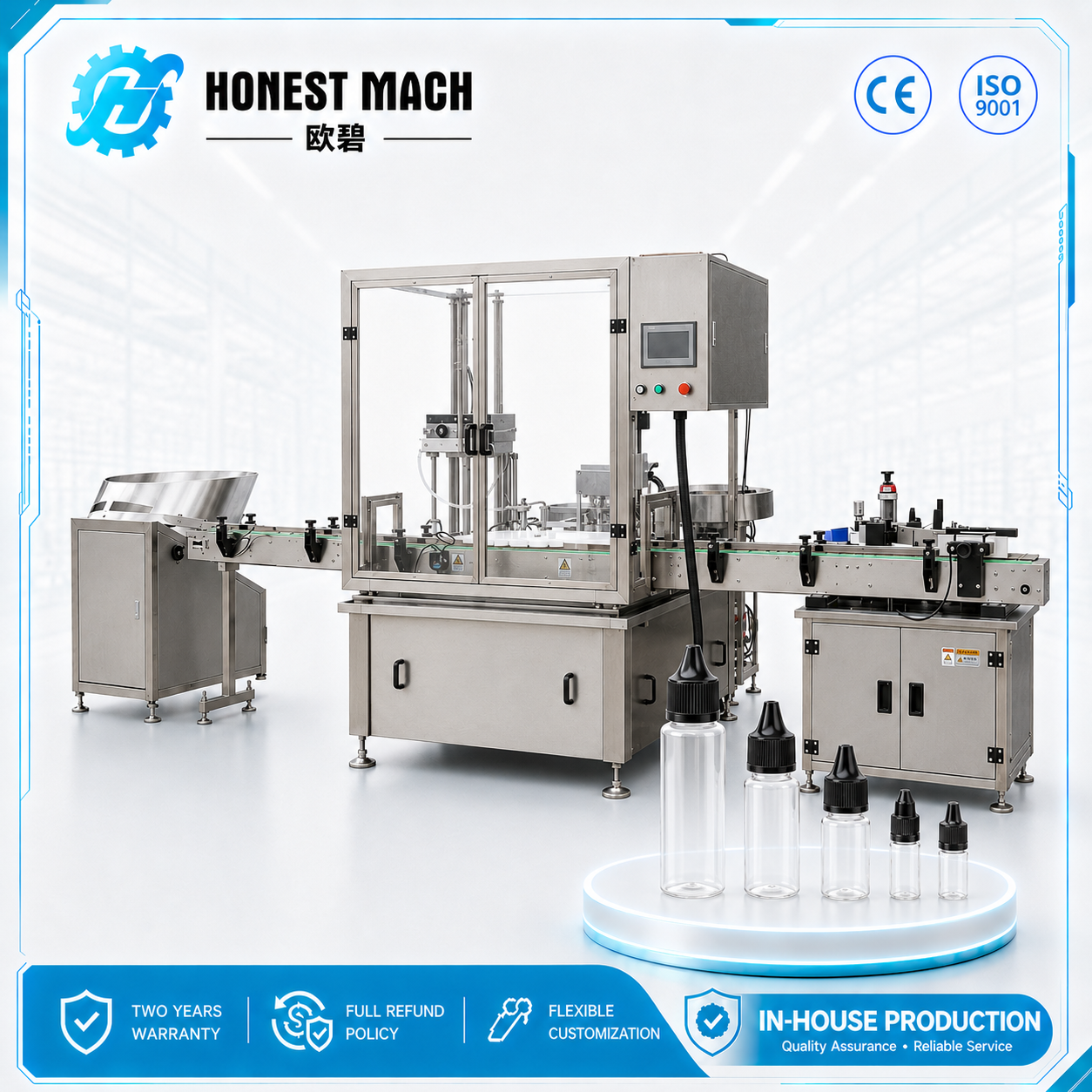

10ml Bottle E-Liquid Filling Machine | Vape Juice Filling Capping Labeling Line
Short Description：
This 10ml e-liquid filling machine is designed for vape juice and e-juice manufacturers who need stable small-volume filling, clean operation and flexible bottle changeover. It can be configured as a complete e-liquid filling capping labeling machine, helping you handle bottle feeding, liquid filling, cap placing, screw capping and optional labeling in one connected production line.
The machine is suitable for 10ml e-liquid bottles, unicorn bottles, plastic dropper bottles, essential oil bottles, CBD oil bottles, eye drop bottles, serum bottles and other 5–200ml small containers.
Key Features:
- Suitable for e-liquid, vape juice, e-juice, essential oil, CBD oil, tincture and other small-volume liquids.Optional peristaltic, ceramic or piston filling system based on liquid viscosity and accuracy requirements.

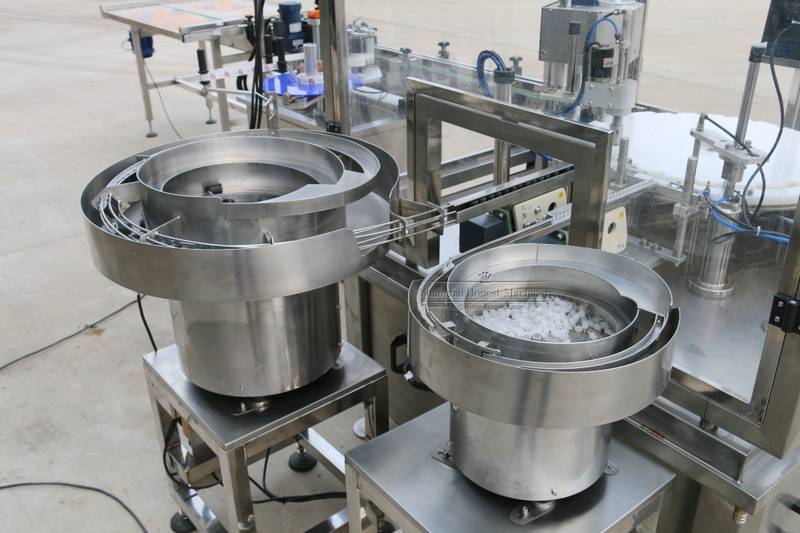

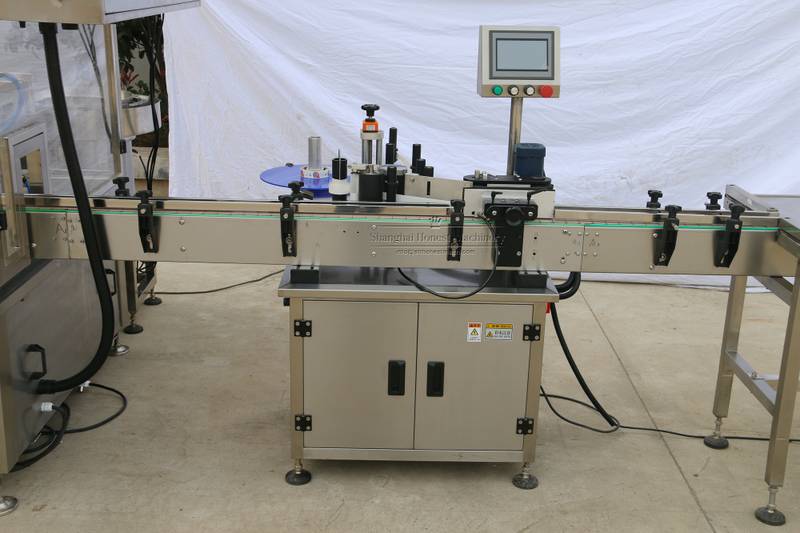

- Supports automatic filling, capping, labeling, coding and bottle feeding according to your production needs.

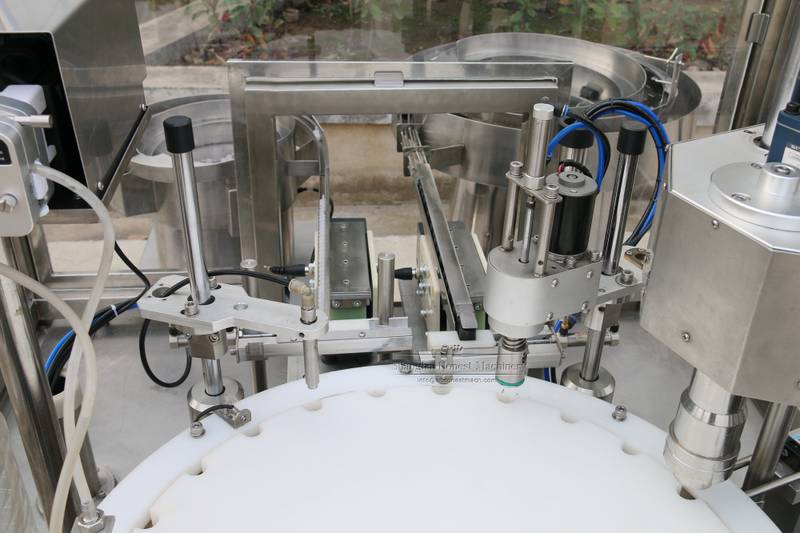

- Customized bottle guides, filling nozzles, capping heads and labeling units for different bottle and cap sizes.
- Ideal for vape juice factories, private-label e-liquid brands and contract packaging companies.

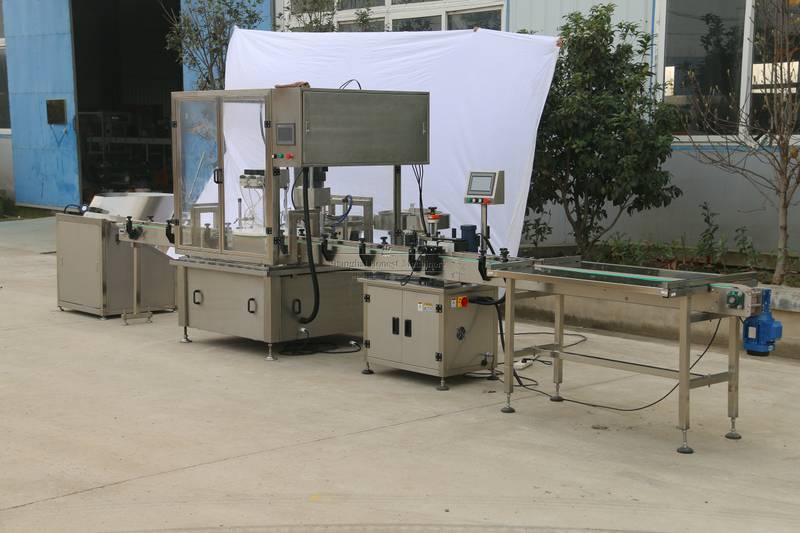

10ml E-liquid Filling Machine Line
What you can get from us?
Parameter:
- Model: Automatic e-liquid filling machine
- Filling volume: 5-120ml(customized)
- Filling nozzles: 1-8 nozzles for your optional(customized)
- Filling speed: 10-100BPM for your optional(customized)
- Filling method:With peristaltic pump and piston pump filling solution for your optional
- Filling accuracy: ±0.5%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1350mm*2050mm(customized)
Highlight:

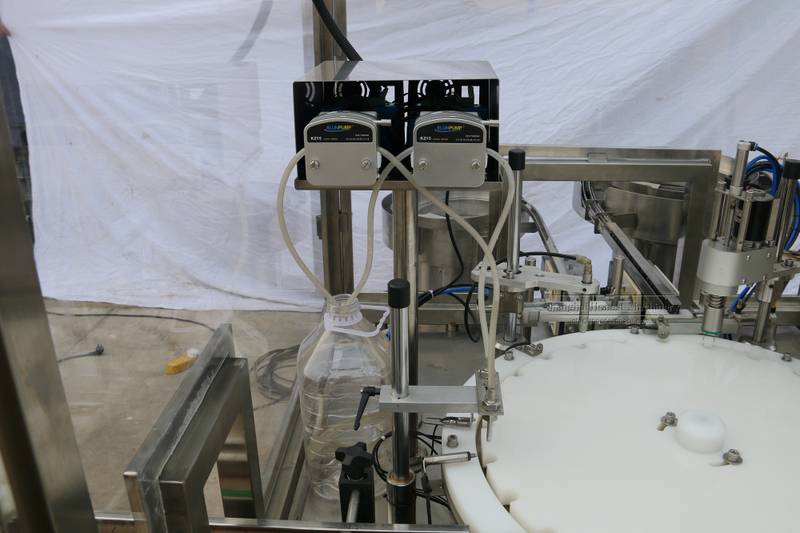

1.Adopt peristaltic pumps for filling, which are mainly suitable for low-viscosity materials and filling multiple flavors. They can quickly switch and clean electronic cigarette materials for different flavors within 5 minutes.
2.Adopt piston pumps for filling, suitable for materials of different viscosities (especially for high viscosity, currently popular filling method). With servo motor control, it can automatically adjust the filling quantity, making it convenient for customer operation and use
1.It can quickly change for different diameter bottles within 30 minutes
2.It can change for both glass dropper bottles and plastic dropper bottles at the same machine with 60 minutes
The machine use servo control to automatically adjust the filling volume, making it convenient for customer operation

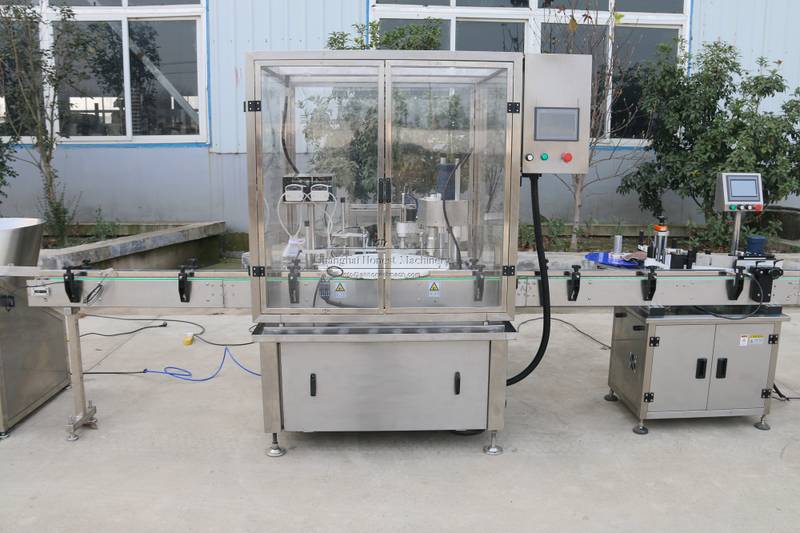

The machine is equipped with an organic glass cover featuring a door stop function to ensure operational safety. Additionally, it comes with a 360-degree rotatable touchscreen for customer-friendly operation and use
What we can offer you:
FAQ:
Our servo-driven filling systems achieve a filling accuracy of ±1%. this precision ensures you meet strict regulatory labeling requirements while saving money by eliminating product giveaway.
Yes, our modular designs allow the filler to integrate seamlessly with your existing downstream packaging equipment, communicating via standardized PLC protocols.
Yes. The system uses high-precision photoelectric sensors. If a bottle is missing, tipped over, or jammed, the machine pauses the filling process automatically to prevent product waste and messy spills.
This machine is suitable for e-liquid, vape juice, e-juice, nicotine liquid, CBD oil, essential oil, tincture, oral liquid, serum and other low-to-medium viscosity liquids. If your liquid contains high VG, thicker oil or special ingredients, we can test your sample before confirming the best filling system.
Yes. The e liquid filling machine can be adjusted for different PG/VG ratios. For thicker high-VG formulas, we may recommend a servo piston pump or other suitable filling method to keep stable filling accuracy and reduce dripping.
