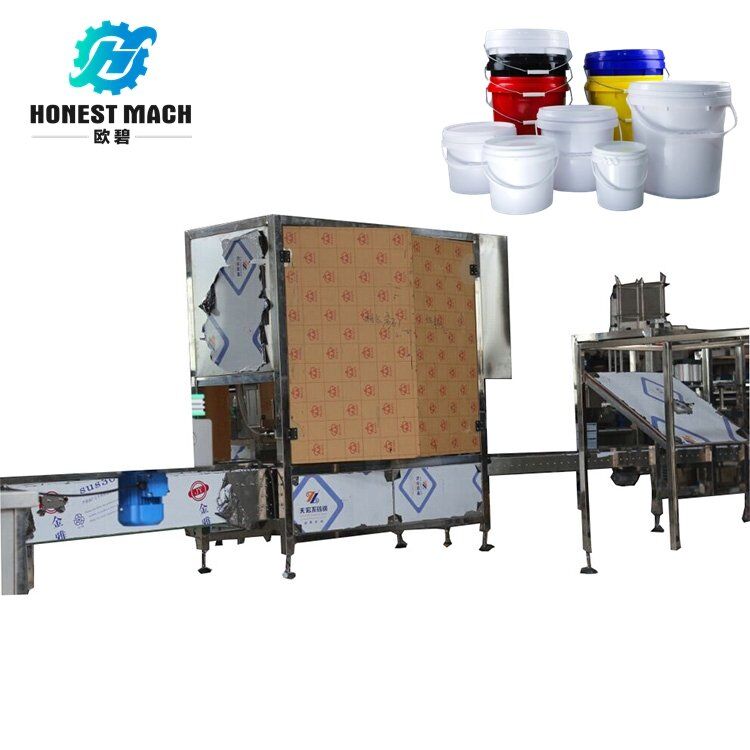

Automatic 20L bucket paint filling machine
Inline bucket filling, lid pressing and capping solution for water-based paint, emulsion paint, latex paint, coating, varnish and other liquid chemical products.
Our automatic 20L bucket water-based paint filling machine is designed for filling water-based paint, emulsion paint, latex paint, wall paint, coating, varnish, primer, adhesive, resin and other liquid or semi-viscous chemical products into plastic buckets, metal pails and open-top containers.
This inline paint bucket filling machine can be customized according to your bucket size, paint viscosity, filling weight, lid type and target production capacity. For 5L, 10L, 18L, 20L and 30L paint buckets, net weight filling or load cell weighing filling can be used to improve filling accuracy and reduce product waste.
Key Features:
- Suitable for paint and coating products such as water-based paint, emulsion paint, latex paint, wall paint, primer, varnish, resin and adhesive.
- Net weight filling system with load cell weighing for accurate filling of large-volume paint and coating products.
- Coarse and fine filling control helps improve filling accuracy and reduce overflow during bucket filling.
Tell us your paint type, bucket size, filling weight, lid style and target capacity. We will recommend a suitable paint bucket filling and capping solution for your production.
What we can offer you?
Parameter:
- Model: Automatic 20L bucket paint filling machine
- Filling volume: 5-30L(customized)
- Filling nozzles: 1-8 nozzles for your optional(customized)
- Filling speed: 100-1000BPH for your optional(customized)
- Filling method: Weigher for filling
- Filling accuracy: ±1%(according to product)
- Capping rate: ≥99.99%
- Power supply: Single phase 110V/220V,50/60Hz or three phase 380V/440V 50/60Hz(customized)
- Total dimension: 2100mm*1650mm*2150mm(customized)
Highlight:
Measurement with high precision weighing combined numerical control instrument with microelectronics,filing accuracy is quite high,also can be convenient for filing capacity,stepless mediation is intuitive,the operation is very simple
1.All connections adopt quick release joint,easy to dismantle and maintain,reduce the cost of the use and maintenance,save the time
What you can get with our 20L bucket water paint filling machine
Related Products:
FAQ:
Yes. Our automatic water paint filling machine can be configured to handle different viscosity ranges of water-based products, including wall paint, latex paint, primer and other coating liquids. For products with different flow characteristics, we adjust the filling method, valve design, tank structure and pipeline configuration instead of replacing the entire machine. This helps customers run multiple paint products on one line more efficiently.
Foaming and splashing are common issues in paint filling, especially when the product contains surfactants or is filled at higher speed. To reduce this, we can use bottom-up filling, controlled filling speed, suitable nozzle design and anti-drip filling valves. Based on your product sample, we can test the filling effect before shipment and optimize the machine settings to improve filling cleanliness and reduce product waste.
Yes. The machine can be customized for a wide range of container formats, including small plastic bottles, mid-size jerry cans and large open-top paint buckets. If your packaging sizes vary significantly, we can design the conveyor, positioning system and filling heads according to your container dimensions. This is especially useful for manufacturers producing both retail packs and industrial paint packaging on the same project.
Yes. We can provide the water paint filling machine as a standalone unit or integrate it into a complete filling line. Depending on your packaging style, the line can include bucket feeding, filling, lid placing, lid pressing, capping, labeling, inkjet coding, carton packing or palletizing. This is helpful for customers who want to improve labor efficiency and build a more automated paint packaging process.
To recommend the right model accurately, we usually need the following details: product type, viscosity range, filling volume, target production speed, container size and shape, opening diameter, cap or lid style, workshop power supply and automation requirements. If possible, it is also helpful to share photos or samples of your buckets and paint products. With this information, we can suggest a more suitable technical solution and reduce the risk of mismatch.
